TASCAM SS-CDR250N / SS-R250N
57

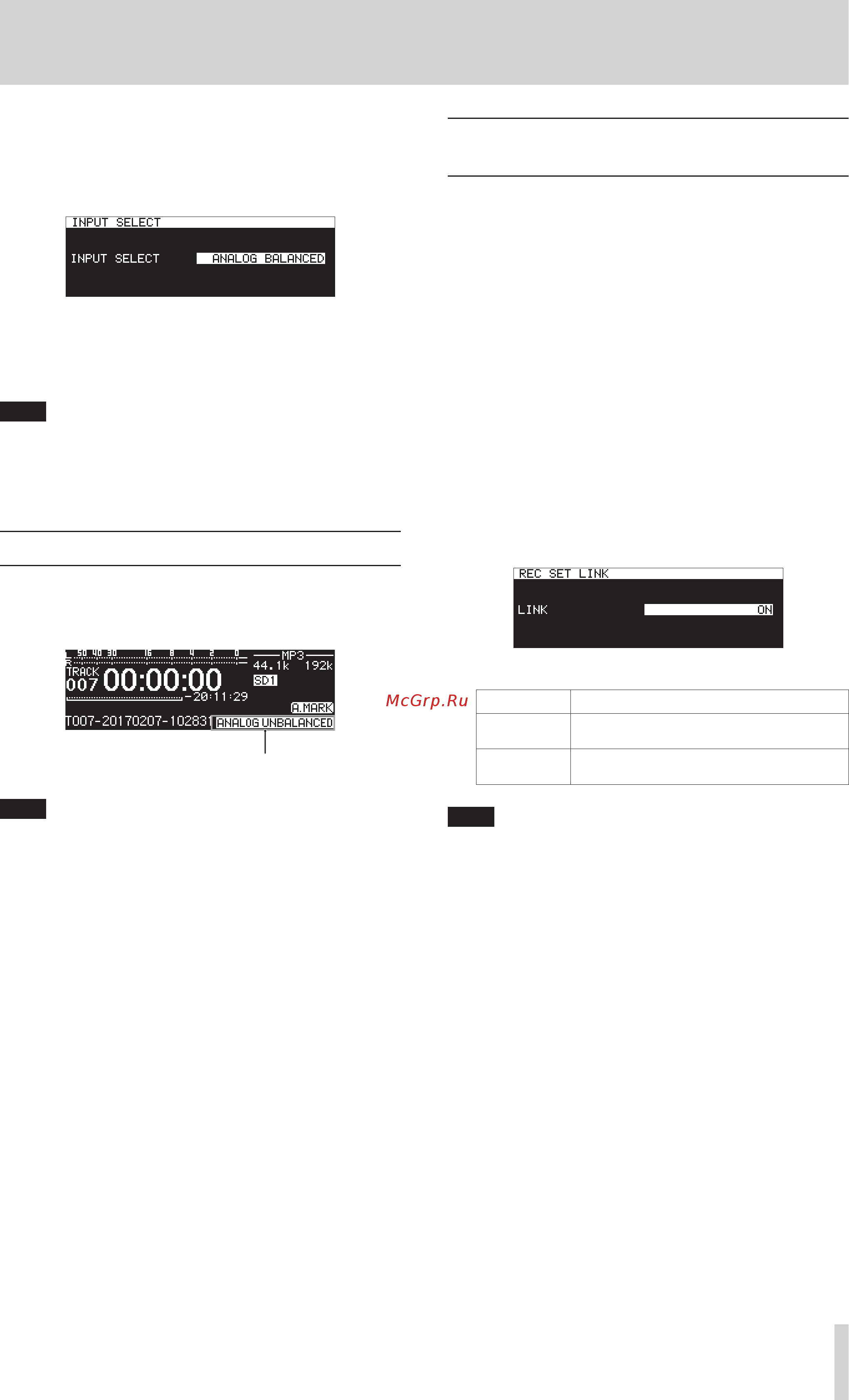

8 – Recording
Selecting from the Menu Screen
1. Select INPUT SELECT on the REC 1 page to open the INPUT
SELECT screen. (See “Menu operation procedures on page
22.)
2. Select the input source.
Options: ANALOG UNBALANCED (default), ANALOG BALANCED,
DIGITAL COAXIAL, DIGITAL XLR, IF-DA2 (Dante)
(shown only if IF-DA2 installed)
NOTE
If the input source is DIGITAL COAXIAL, DIGITAL XLR or IF-
DA2 (Dante) (shown only if IF-DA2 installed), but it is un-
locked, “*” will appear at the end of the option.
3. Confirm the setting and return to the Menu Screen.
Input source display
Confirm the currently selected input source by following the pro-
cedures in “Selecting the input source above or checking the in-
put setting status on the recording screen.
Input source information display
NOTE
If DIGITAL XLR, DIGITAL COAXIAL or IF-DA2 (Dante) (only
when IF-DA2 card installed) is selected, pop-up messages will
appear under the following conditions.
o
The unit is not digitally locked to the input source (DIN UN-
LOCK will appear).
o
The input source is not audio (DIN Not Audio will appear).
o
If the sampling frequency set with the SAMPLE item on the
REC 3 page differs from the input source, FS UNMATCH will
appear. If the sampling rate converter is active, however,
recording will be possible even if the sampling frequency is
different. (See “Using the sampling rate converter on page
64.)
Setting left/right channel inputs sepa-
rately
Left and right channel input settings can be made separately on
this unit.
The screens where they can be set separately are as follows.
0 BALANCED INPUT GAIN screen (See “Setting mic/line input sen-
sitivity on page 58.)
0 INPUT LEVEL screen (See Adjusting input signal levels” on
page 58.)
0 PHANTOM POWER screen (See “Setting phantom power” on page
59.)
0 MIC AGC screen (See “Setting automatic gain control for mic
inputs” on page 59.)
0 DYNAMICS screen (See “Using the dynamics function” on page
60.)
0 LOW CUT screen (See “Setting the low-cut filter on page 60.)
1. Select the REC SET LINK item on the REC 1 page to open
the REC SET LINK screen. (See “Menu operation procedures
on page 22.)
2. Select the left/right channel setting method.
Option Meaning
OFF
Left and right channels input settings are
made separately.
ON (default)
The left and right channel input settings
are linked.
NOTE
When the left and right channel settings are unlinked, if the
REC SET LINK screen LINK item is changed to ON, the right
channel settings will change to match the left channel set-
tings. If the REC SET LINK screen LINK item is reset to OFF, the
right channel will retain the same settings as the left channel.
3. Confirm the setting and return to the Menu Screen.
