30
TASCAM SS-CDR250N / SS-R250N
3 – Preparation

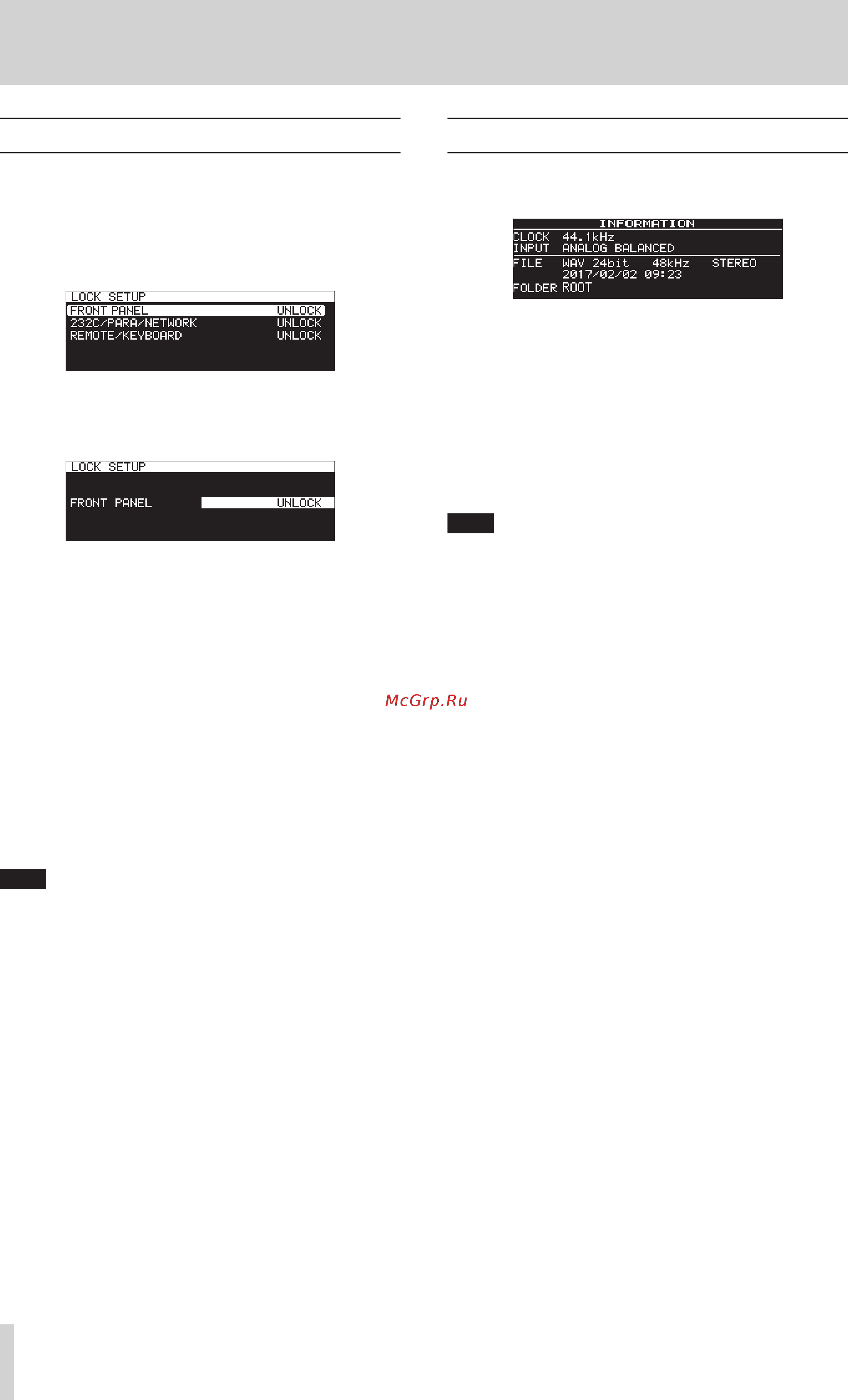

Setting the lock function
You can set the lock function to prevent this unit from being con-
trolled from its front panel or an external device.
1. Press the MEDIA button while pressing the HOME [INFO]
button on the front of the unit to open the LOCK SETUP
screen.
2. Select the lock function to set, and open the lock function
setting screen. (See “Menu operation procedures” on page
22.)
Lock function setting screen when FRONT PANEL item selected
FRONT PANEL
This locks the controls on the front of the unit.
Options: UNLOCK (default), LOCK
232C/PARA/NETWORK
This locks external control from the RS-232C and PARAL-
LEL connectors, as well as file transfer and remote control
by Telnet using an FTP client application.
Options: UNLOCK (default), LOCK
REMOTE/KEYBOARD
This locks operation using a remote control connected to
the REMOTE jack, a wireless remote control or a USB key-
board or numeric keypad.
Options: UNLOCK (default), LOCK
NOTE
The following operations are possible even when set to LOCK.
o Showing the Home Screen
o Changing settings on the LOCK SETUP screen
o Turning the power off with the STANDBY/ON button
o Adjusting the brightness of the display and various in-
dicators
3. Confirm the setting and return to the Menu Screen.
Opening the INFORMATION screen
While pressing the SHIFT button, press the HOME [INFO] button
to show the operation status of the unit on the display.
Contents
CLOCK
Sampling frequency currently used for operation
INPUT
Currently set input
FILE
Currently set file type, quantization bit depth and file mode
Recording date
FOLDER
Current folder now selected
NOTE
If DIGITAL XLR, DIGITAL COAXIAL or IF-DA2 (
Dante
) (only
when IF-DA2 card installed) is selected, recording cannot be
started from recording standby under the following condi-
tions.
• If this unit is not digitally locked to the input source, “UN-
LOCK” will appear at the end of the input source name.
• If the input source is not audio, “Not Audio” will appear at
the end of the input source name.
• If the sampling frequency set with the SAMPLE
item on the
REC 3
page differs from the input source, “
FS UNMATCH” will
appear at the end of the input source name. If the sampling
rate converter is active, however, recording will be possible
even if the sampling frequency is different. (See “Using the
sampling rate converter” on page 64.)
