TASCAM SS-CDR250N / SS-R250N
17
2 – Names and Functions of Parts

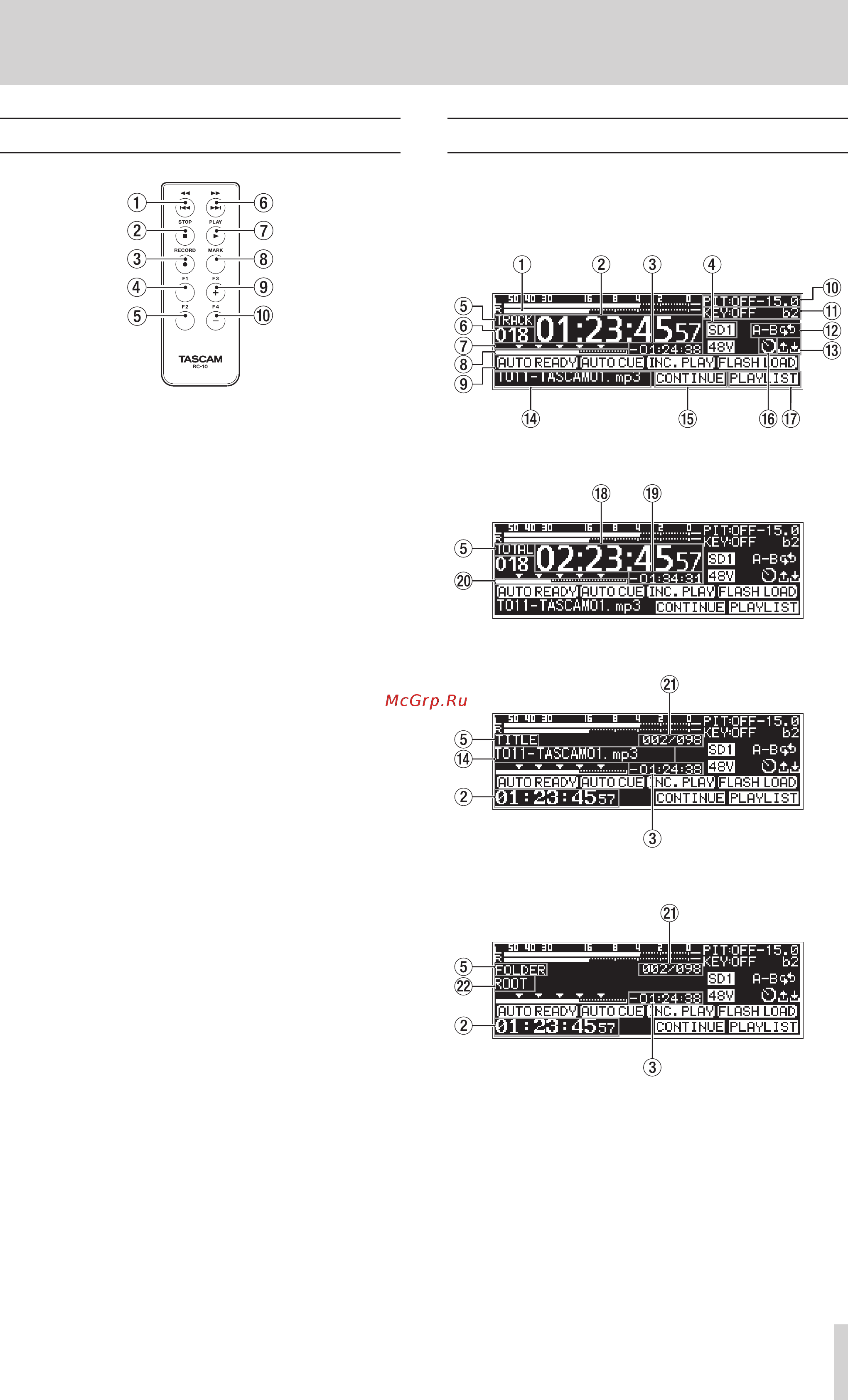

Wireless remote control (TASCAM RC-10)
1
m
/
.
button
Press briefly during playback to skip to the beginning of the
track.
Press briefly when near the beginning of a track to skip to the
beginning of the track before it.
Press and hold to search backwards.
When the BROWSE screen is open, press to move up one level.
(See “Navigating the BROWSE screen” on page 42.)
2 STOP [
8
] button
Press to stop playback or recording.
3 RECORD [
0
] button
Press when stopped to start recording standby.
When recording, press to increment the track number (create
a new file and continue recording). (See “Incrementing track
numbers manually” on page 66.)
4 F1 button
Press when stopped or playing back to start playback standby.
Press when recording to start recording standby.
5 F2 button
When a Menu Screen is open, press this button to return to
the Home Screen.
Press when the Home Screen is open to change the display
mode. (See “Home Screen” on page 17.)
6
,
/
/
button
Press briefly to skip to the beginning of the next track.
Press and hold to search forward.
When the BROWSE screen is open and a folder is selected, press
this button to open that folder.
7 PLAY [
7
] button
Press when stopped or playback ready to start playback.
Press when in recording standby to start recording.
8 MARK button
When stopped, recording, playing back or in playback stand-
by, press this button to add a mark. (See “Adding marks man-
ually when recording” on page 68.), (See “Adding marks” on
page 87.)
9 F3 [+] button
Press to move to the next mark.
When the BROWSE screen is open, press to move the cursor up.
(See “Navigating the BROWSE screen” on page 42.)
0 F4 [−] button
Press to move to the mark before the current location.
When the BROWSE screen is open, press to move the cursor
down. (See “Navigating the BROWSE screen” on page 42.)
Home Screen
The Home Screen has four display modes: TRACK, TOTAL, TITLE
and FOLDER.
Each time you press the HOME [INFO] button, the display mode
will change.
Home Screen TRACK display mode
Home Screen TOTAL display mode
Home Screen TITLE display mode
Home Screen FOLDER display mode
1 Level meters
This area shows the levels of the input and playback signals.
2 Elapsed time from track beginning
This shows the elapsed time from the beginning of the current
track (hours: minutes: seconds).
During jog playback 10msec intervals are also shown.
3 Remaining time to track end
This shows the remaining time to the end of the current track
(hours: minutes: seconds).
4 Current medium
