726
Users Manual
10
Keys

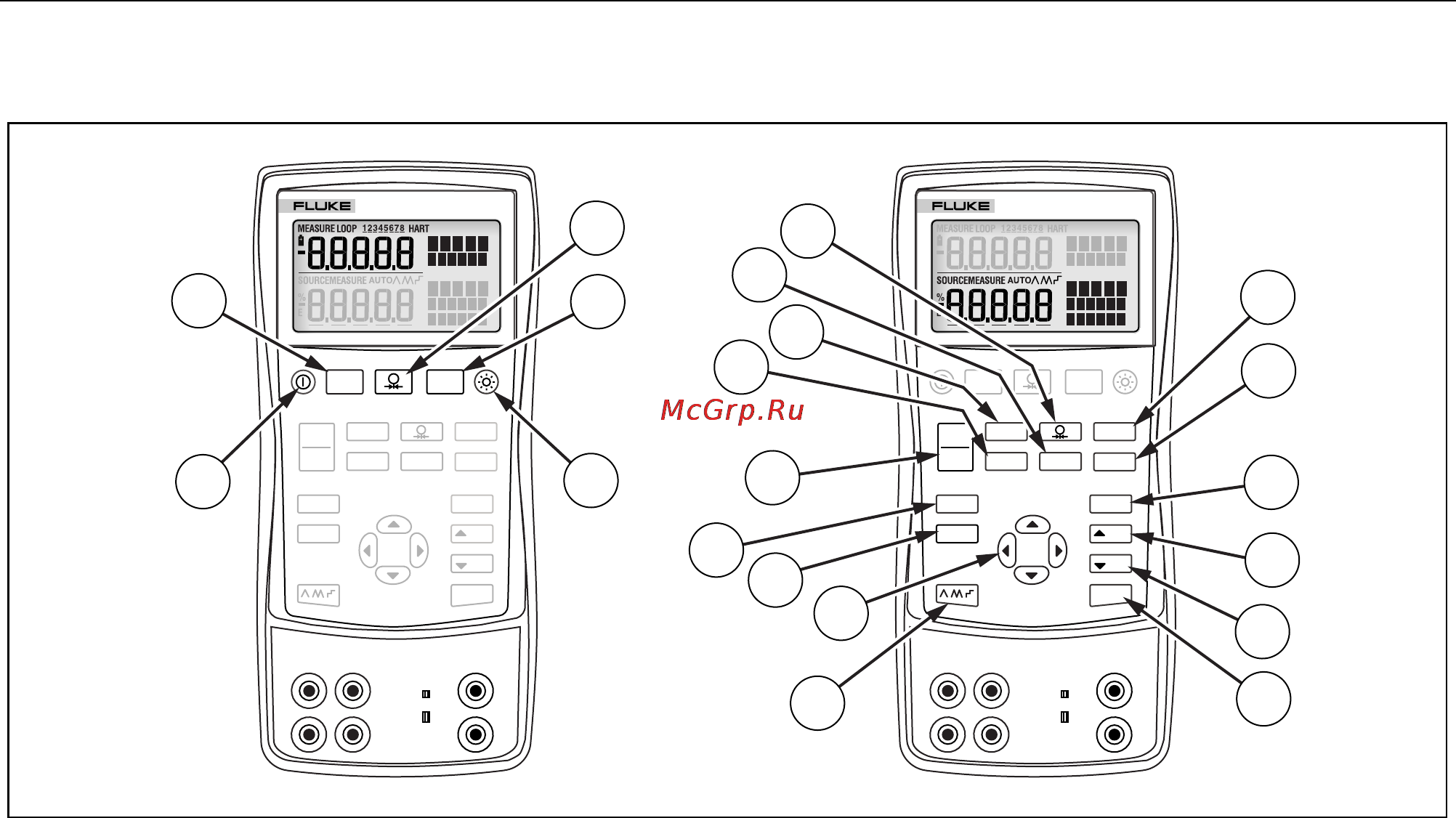

Figure 3 shows the Calibrator keys and Table 4 explains their use.
726
PRECISION CALIBRATOR
0%
25%
25%
SAVE
RECALL
Return to
Recallurn to
Recal
FREQ
MEAS
SOURCE
ENTER
EXIT CONFIG
HART
TC
RTD PULSE
V mA
V mA
LOOP
SWITCH
TEST
100%
%Error
ZERO
3 Seconds
OPEN/CLOSE
TRIGGER/STOP
CONFIG
SELECTION
726
PRECISION CALIBRATOR
0%
25%
25%
SAVE
RECALL
Return to
Recal
FREQ
MEAS
SOURCE
ENTER
EXIT CONFIG
HART
TC
RTD PULSE
V mA
V mA
LOOP
SWITCH
TEST
100%
%Error
ZERO
3 Seconds
OPEN/CLOSE
TRIGGER/STOP
CONFIG
SELECTION
1
8
9
10
2
3
4
6
7
5
12
11
13
14
15
16
17
18
19
20
bec41f.eps
Figure 3. Keys
