726

Users Manual

Measuring Electrical Parameters (Lower Display)

To measure electrical parameters using the lower display,

proceed as follows:

1. Connect the Calibrator as shown in Figure 9.

2. If necessary, press

M for MEASURE mode (lower

display).

3. Press

V for dc voltage or current, K for

frequency, and Rfor resistance.

726

PRECISION CALIBRATOR

25%

SAVE

RECALL

Return to

Recal

FREQ

MEAS

SOURCE

ENTER

EXIT CONFIG

HART

RTD PULSE

V mA

LOOP

SWITCH

TEST

100%

%Error

ZERO

3 Seconds

OPEN/CLOSE

TRIGGER/STOP

CONFIG

SELECTION

Black

Red

bec43f.eps

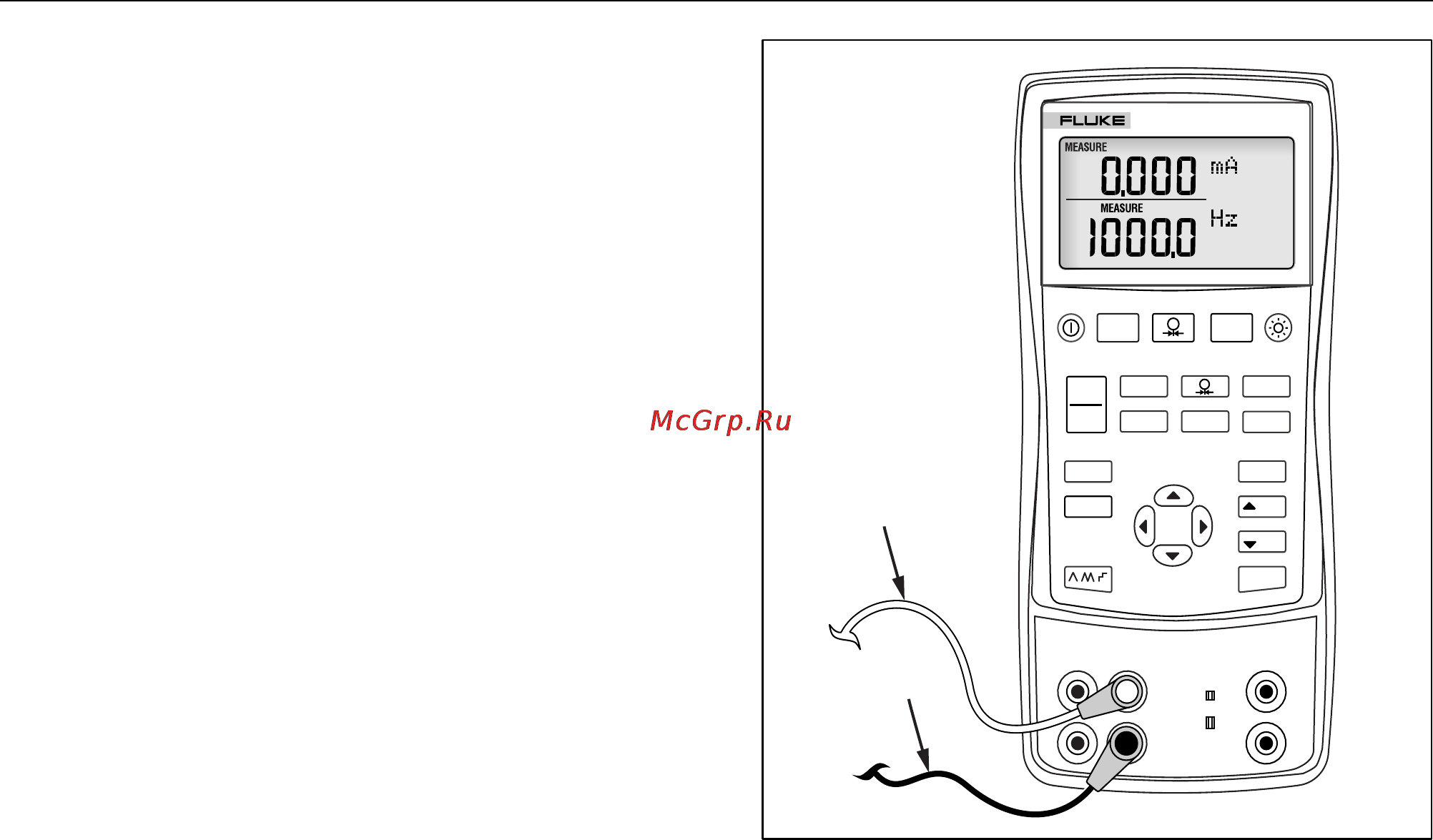

Figure 9. Measuring Electrical Parameters
