Fluke 726 [58/80] Meas source

726

Users Manual

726

PRECISION CALIBRATOR

25%

SAVE

RECALL

Return to

Recall

FREQ

MEAS

SOURCE

ENTER

EXIT CONFIG

HART

RTD PULSE

V mA

LOOP

SWITCH

TEST

100%

%Error

ZERO

3 Seconds

OPEN/CLOSE

TRIGGER/STOP

CONFIG

SELECTION

Hand Pump

SIGNAL

TEST

–

Pressure

Module

Red

Black

Measure mA

Source Pressure

24 V Loop Power

Enabled

HART

Communicator

bec34f.eps

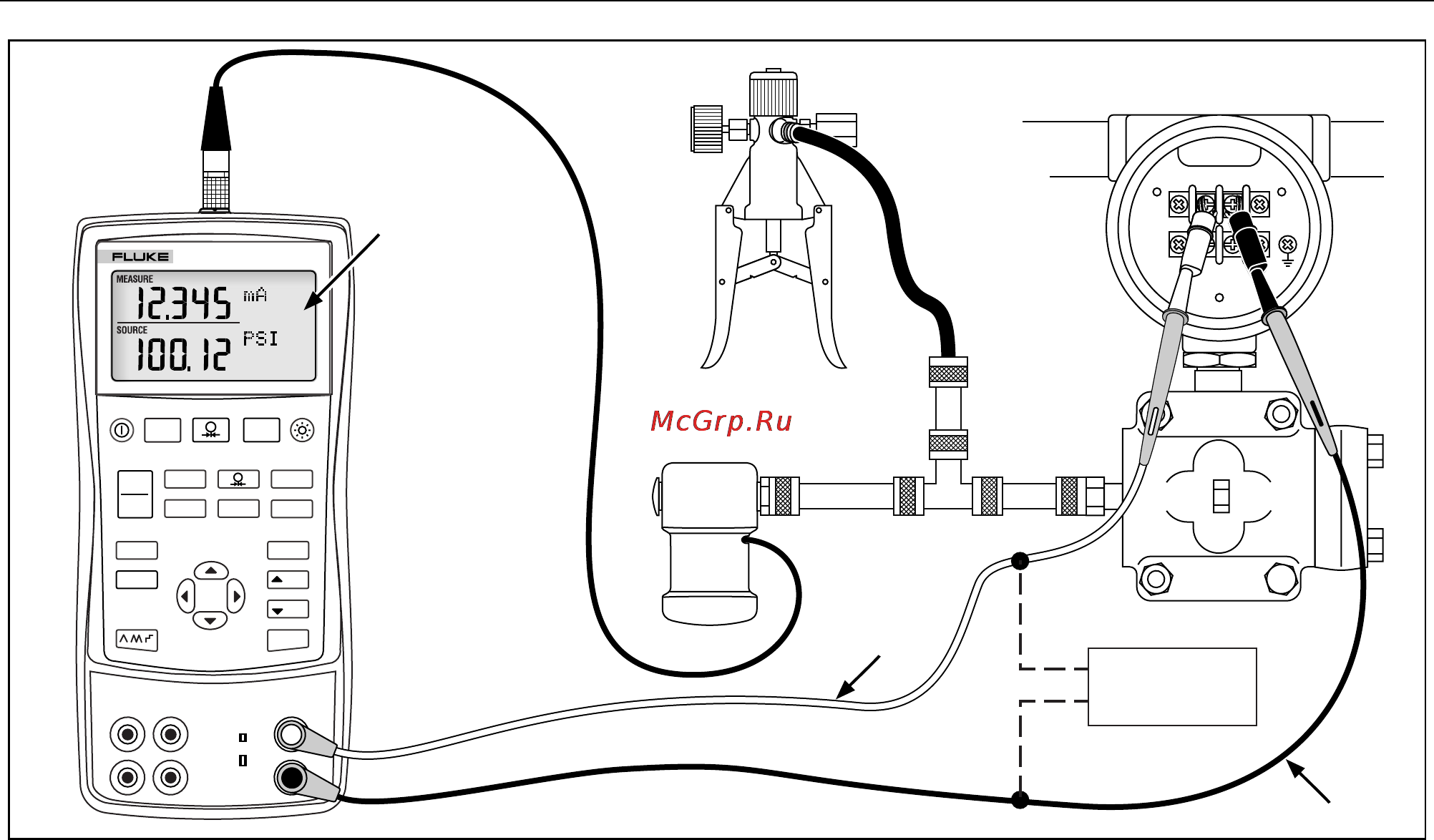

Figure 21. Calibrating a Pressure-to-Current (P/I) Transmitter
