Documenting Process Calibrator

Setting Up the Calibrator

Proceed as follows to set up the time and date

displays:

1. Press s.

2. Press the

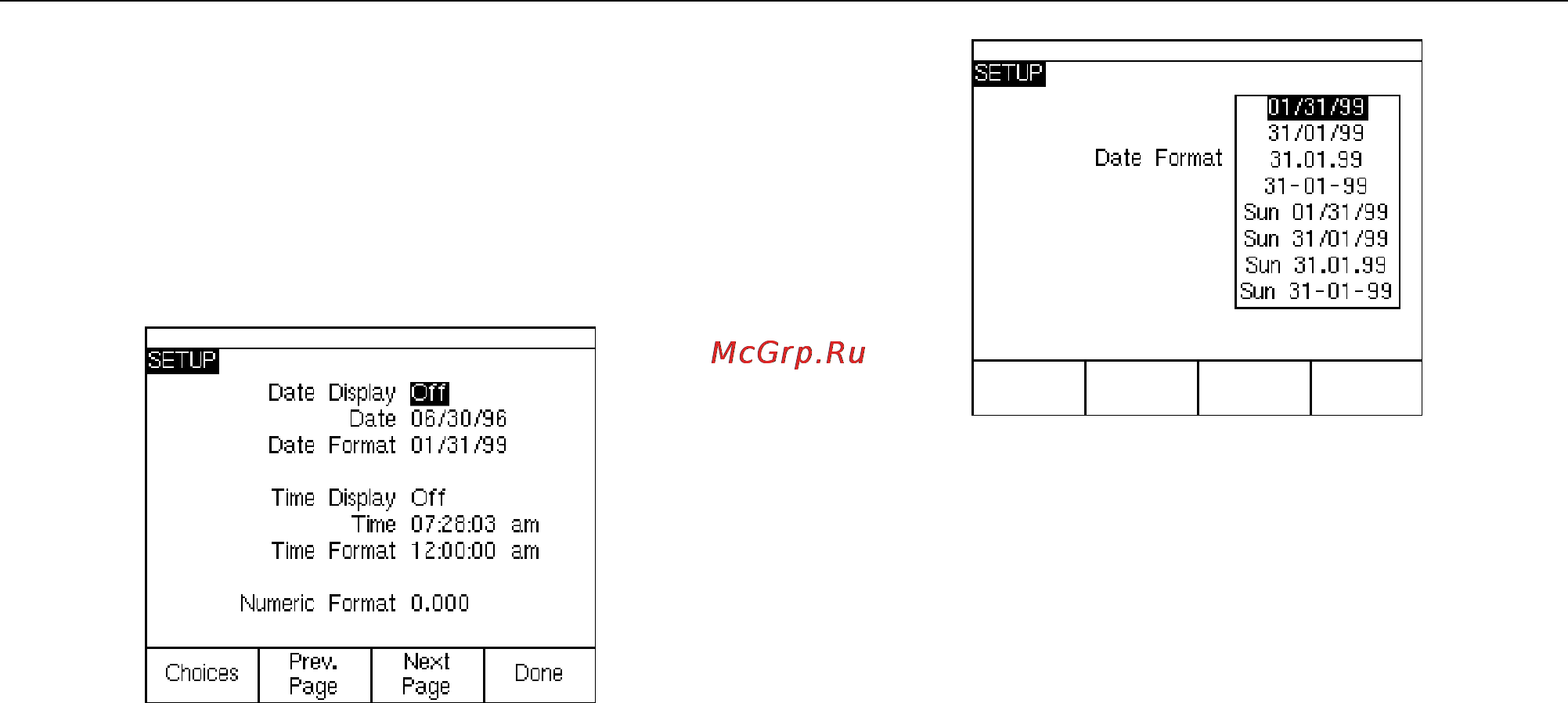

Next Page softkey. The display

appears as follows:

gj38s.eps

3. Use the u and d keys to move the cursor to

the parameter you want to change, then press

eor the

Choices softkey to choose a

setting for that parameter. For example, the

following display appears after you select

Date

Format

gj39s.eps

4. Press uor d to move the cursor to the desired

date format.

5. Press eto go back to the sdisplay.

6. Make another selection or press the

Done

softkey or s to save your settings and exit

Setup mode.
