Documenting Process Calibrator
Memory Operations
85
8. After you enter your choice of duration, you can
see how much memory that duration would
consume. See the
Memory Used and Memory
Remaining
percentage figures on the display.
Memory Used indicates the percentage of
available memory that will be used by the
specified log.
Memory Remaining indicates the
percentage of memory that will remain unused
after logging is complete.

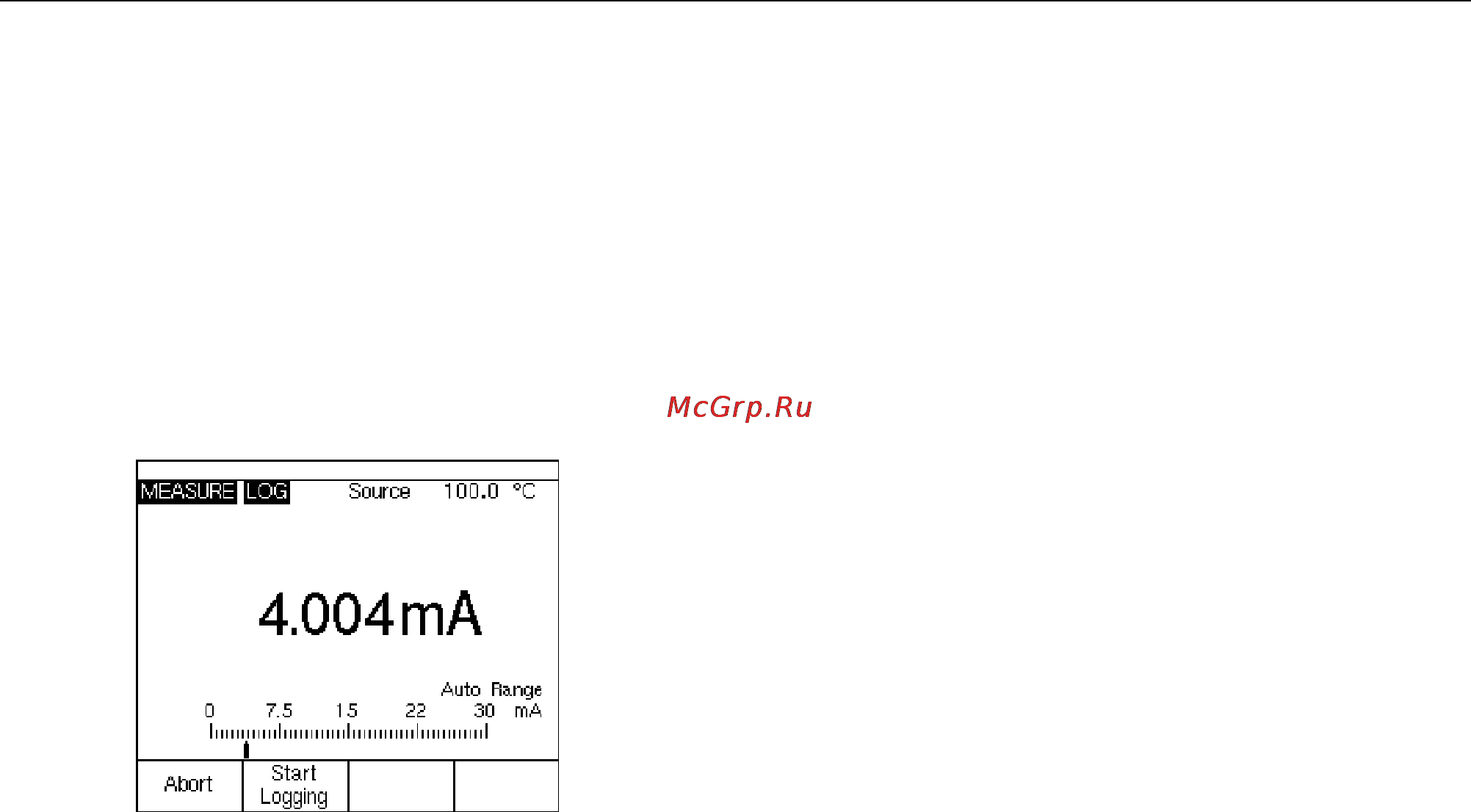

9. Press the
Done softkey. The display changes to:
gj54s.eps
10. Note the LOG annunciator next to MEASURE.
Press the
Start Logging softkey to start taking
data.
11. The calibrator will continue storing data points
until the duration has elapsed, or until you press
the
Done softkey. Either way of terminating
logging causes the calibrator to save the data as
a memory item that can be uploaded to a host
computer running compatible application
software.
