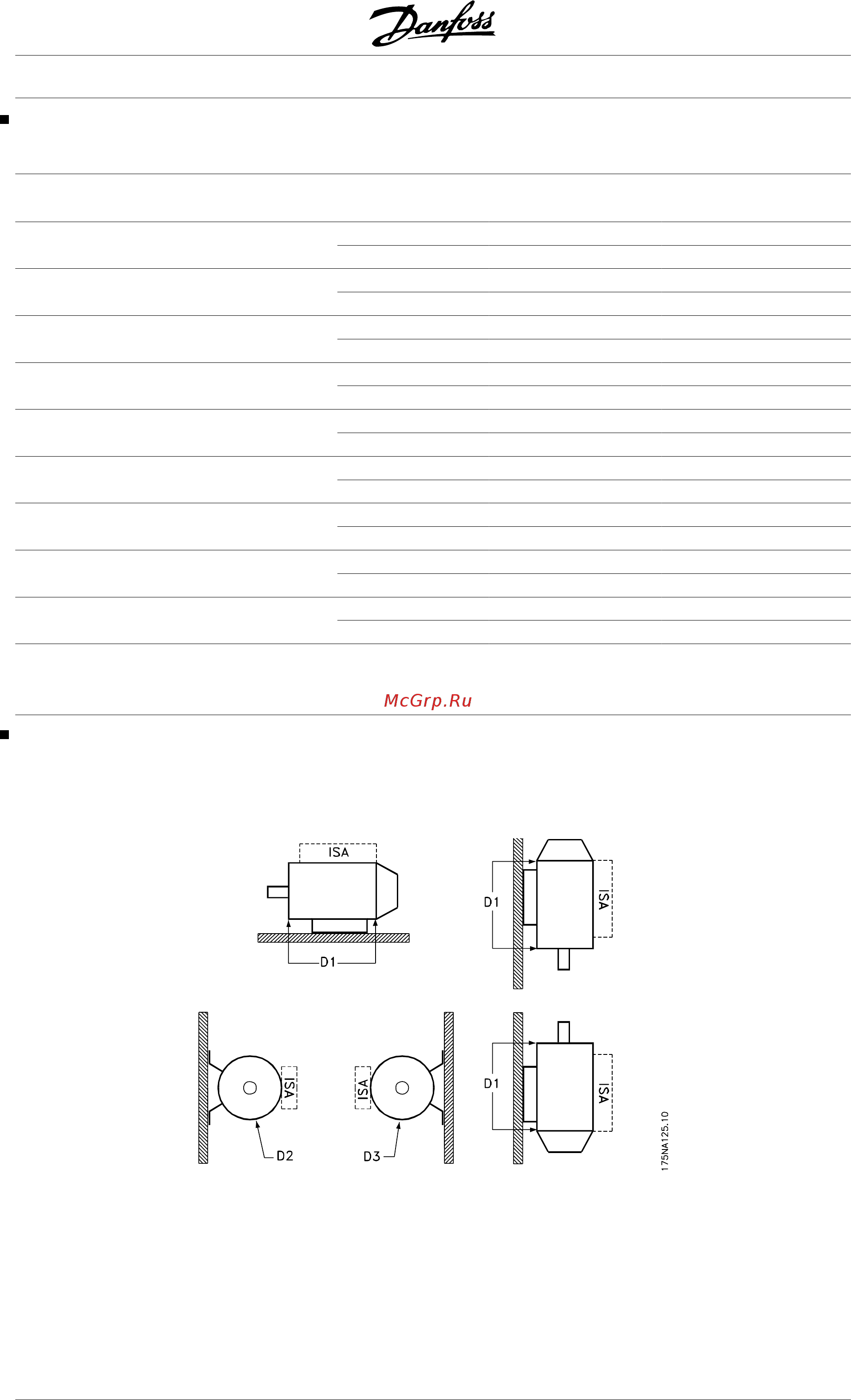

Ordering info for Frames and Flanges
Frame sizes and the corresponding flange sizes for different mounting versions
Type
Motor frame size Mounting version Flange code, standard
(S) [mm]
Flange code, alterna-
tives
*
[mm]
FCM 305 80
B5/B35 165 100/115/130/215
B14/B34 100 85/115/130
FCM 307 80
B5/B35 165 100/115/130/215
B14/B34 100 85/115/130
FCM 311 90
B5/B35 165 130/215
B14/B34 115 100/130
FCM 315 90
B5/B35 165 130/215
B14/B34 115 100/130
FCM 322 100
B5/B35 215 165/265
B14/B34 130 115/165
FCM 330 100
B5/B35 215 165/265
B14/B34 130 115/165
FCM 340 112
B5/B35 215 165/265
B14/B34 130 165
FCM 355 132
B5/B35 265 215/300
B14/B34 165 130
FCM 375 132
B5/B35 265 215/300
B14/B34 165 130
Flange size according to IEC ref. FFxxx (Dimension M), see section Dimensions
S: Available as standard shaft
*
No changes regarding shaft dimensions
Ordering info for inverter box position and drain
hole position
Inverter box position, always top mounted.
All drain holes are mounted with screw and washer, IP 66 if not opened.
D1: Drain holes opposite inverter side, both drive end and non drive end.
D2/D3: Drain holes 90° to inverter, both drive end and non drive end.
VLT
®
FCM Series
MG.03.H6.02 - VLT
®
is a registered Danfoss trademark 11
