Bit 07, No function/reset
Reset of trip. Bit 07 = "0" means that there is no reset.
Bit 07 = "1" means that a trip is reset. After reset it will
take approx. 1.5 second until the unit is ready. The
status word will indicate the ready state.
Bit 08, Jog 1 OFF/ON:
Activation of pre-programmed speed in parameter 509
(Bus JOG 1). JOG 1 is only possible when Bit 04 = "0"
and bit 00-03 = "1".
Bit 09, Jog 2 OFF/ON:
Activation of pre-programmed speed in parameter 510
(Bus JOG 2). JOG 2 is only possible when Bit 04 = "0"
and Bits 00-03 = "1". If both JOG 1 and JOG 2 are
activated (Bits 08 and 09 = "1"), JOG 1 has the higher
priority, which means that the speed programmed in
parameter 509 will be used.
Bit 10, Data not valid/valid:
Used for telling the FC motor whether the control word
is to be used or ignored. Bit 10 = "0" means that the
control word is ignored. Bit 10 = "1" means that the
control word is used. This function is relevant because
the control word is always contained in the telegram,
regardless of the type of telegram used, i.e. it is pos-
sible to disconnect the control word if it is not to be
used in connection with updating or reading of param-
eters.
Bit 11, No function / slow down, relay 123, digital output
terminal 9:
Used for reducing the speed reference by the value in
parameter 219. Bit 11 = "0" means that there is no
change of the reference. Bit 11 = "1" means that the
reference is reduced. Bit 11 = “1” will also activate relay
123 (provided parameter 323 = “Control word bit 11”)
and set digital out terminal 9 high (provided parameter
340 = “Control word bit 11”).
Bit 12, No function / catchup, relay 123:
Used for increasing the speed reference by the value
of parameter 219. Bit 12 = "0" means that there is no
change of the reference; Bit 12 = "1" means that the
reference is increased. If both slow down and catchup
are activated (Bits 11 and 12 = "1"), slow down has the
higher priority, i.e. the speed reference is reduced. Bit
12 = “1” will also activate relay 123 (provided param-
eter 323 = “Control word bit 12”).
Bits 13, Choice of Setup:
Bit 13 is used for choosing between the two menu Set-
ups in accordance with the following table:
Setup
Bit 13
1 0
21
This function is only possible if Multi-Setups have been
selected in parameter 004.
NB!
Parameter 507 is used for choosing how
Bit 13 is to be combined (gated) with the
corresponding function on the digital in-
puts.
Bit 15, No function/reversing:
Reversing of the direction of rotation of the motor. Bit
15 = "0" leads to no reversing, Bit 15 = "1" leads to
reversing.
NB!
Unless otherwise mentioned, the control
word bit is combined (gated) with the cor-
responding function on the digital inputs
as a logic "or" function.

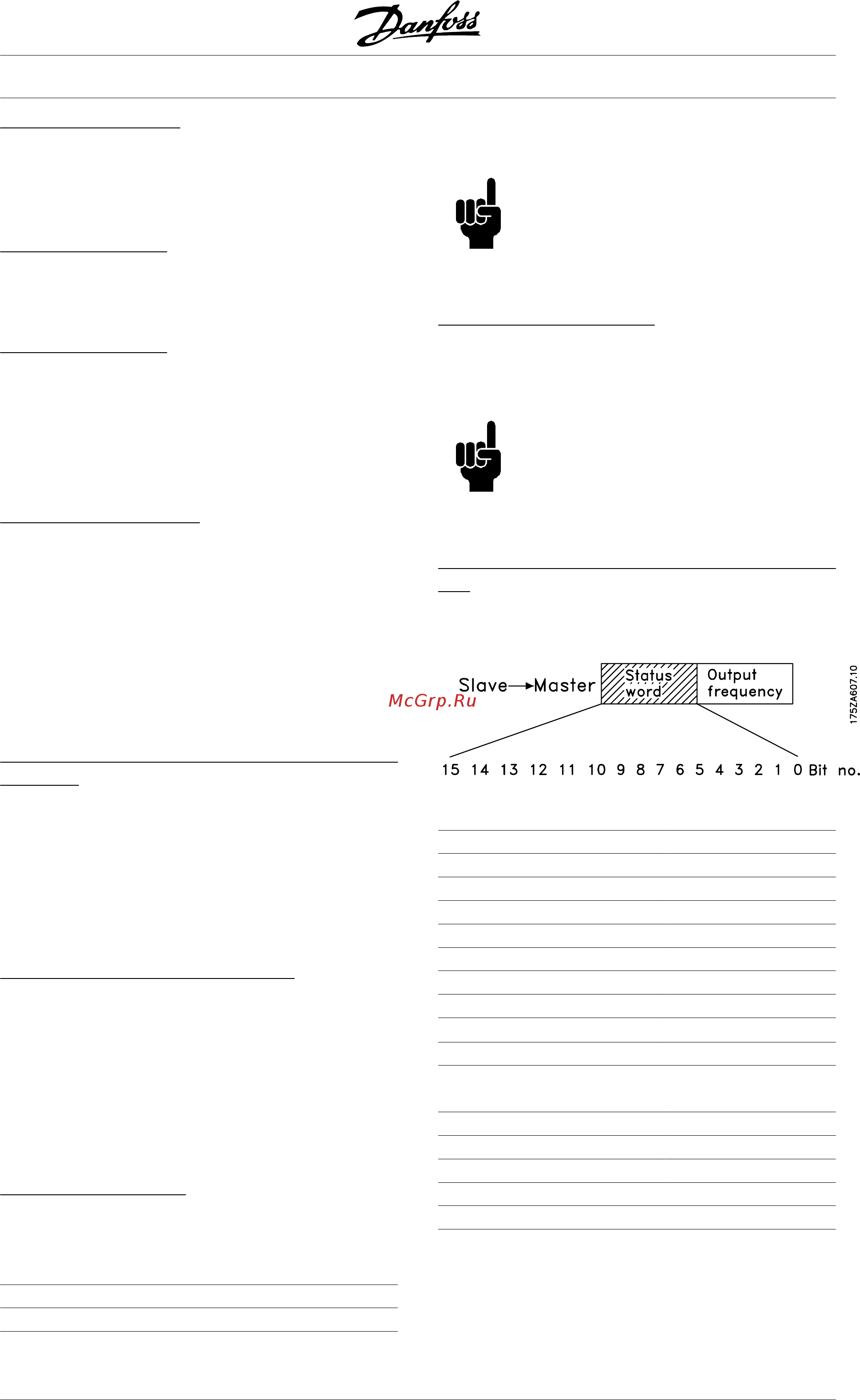

Status word (according to Fieldbus Profile stand-
ard)
The status word is used for informing the master (e.g.
a PC) of the condition of a slave (FC motor).
Bit Bit = 0 Bit =1
00 Control not ready Ready
01 FC not ready Ready
02 Coasting Enable
03 No fault Trip
04 ON 2 OFF 2
05 ON 3 OFF 3
06 Start enable Start disable
07 No warning Warning
08
Speed ref.
Speed = ref.
09 Local control Serial communication
10 Outside frequency
range
Frequency limit OK
11 Not running Running
12
13 Voltage OK Above limit
14 Current OK Above limit
15 Thermal warning
VLT
®
FCM Series
72 MG.03.H6.02 - VLT
®
