Tightening Torques

Cover (lid) screws:

25.6 - 31lb-in (3 - 3.5 Nm)

Plastic cable entrance plugs: 19.5 lb-in (2.2 Nm)

L1, L2, L3 (AC Line) screws (FCM 305-340): 5 - 7 lb-in (0.5 - 0.6 Nm)

L1, L2, L3 (AC Line) screws (FCM 355-375): 15 lb-in (1.2 - 1.5 Nm)

Earth Ground: 30.1 lb-in (3.4 Nm)

Terminal screws require a max 2.5 mm flat-blade

screwdriver.

AC Line screws require a 8mm flat-blade screwdriver.

Lid screws , earth ground and cable clamp screws all

require T-20 Torx or flat-blade screwdriver (max. tight-

ening speed 300 RPM).

Maximum Cable Cross Section

Note:

Use °60 C copper wire or better

AWG

Max size AC Line cable (FCM 305-340): 10 4.0

Max size AC Line cable (FCM 355-375): 6 10

Max size control cable: 16 1.5

Max size serial communication cable: 16 1.5

Earth Ground: 6 10

Screw Sizes

Cover (lid) screws:

Earth Ground and Cable Clamp screws (FCM 305-340): M4

Earth Ground and Cable Clamp screws (FCM 355-375): M5

Protection:

• Thermal overload protection of motor and

electronics.

• Monitoring of the intermediate circuit voltage

ensures that the inverter cuts out if the inter-

mediate circuit voltage gets too high or too

low.

• If a mains phase is missing, the inverter will

cut out when a load is placed on the motor.

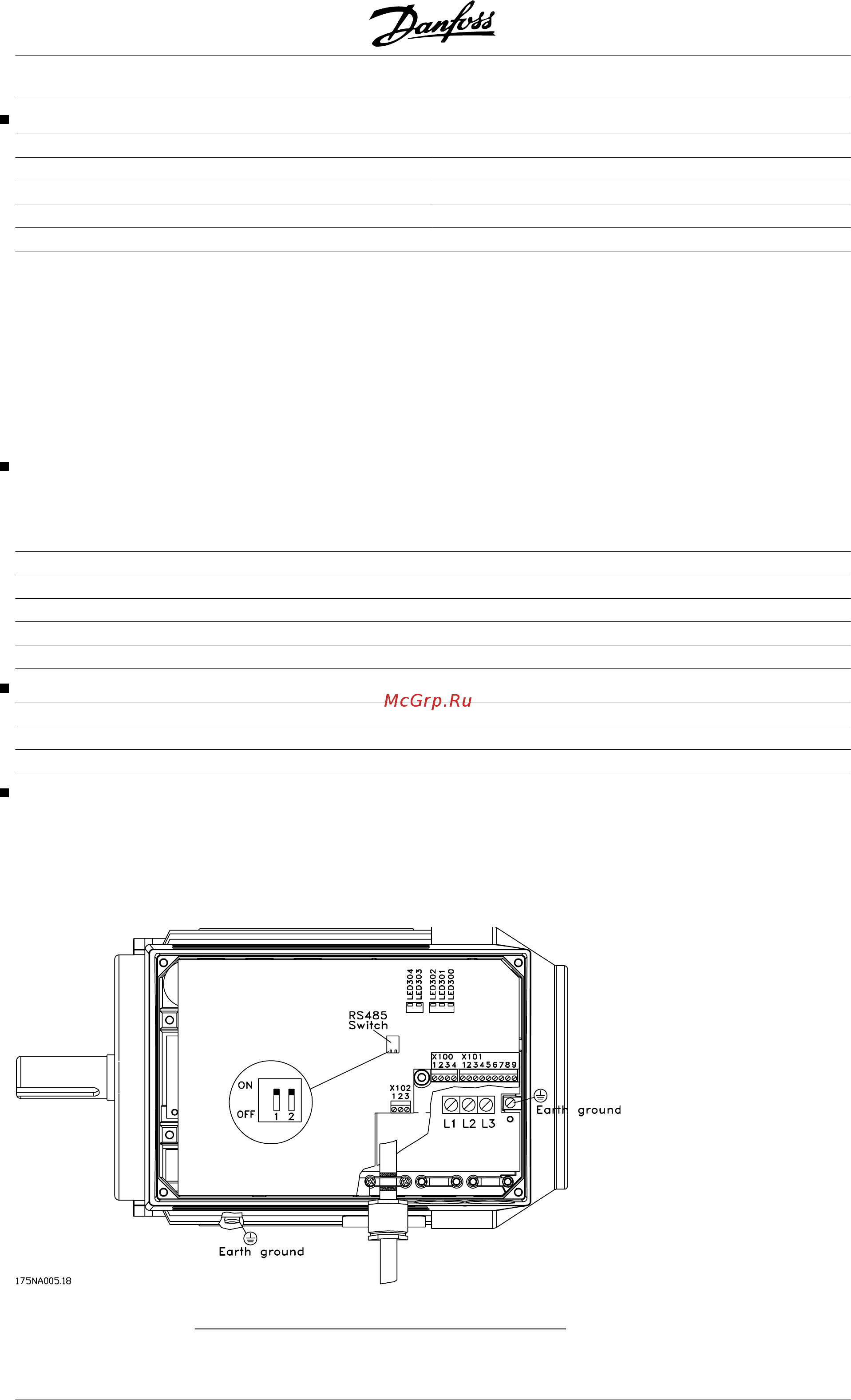

Terminal arrangement (for installation see quick setup, MG.03.AX.62)

VLT

FCM Series
