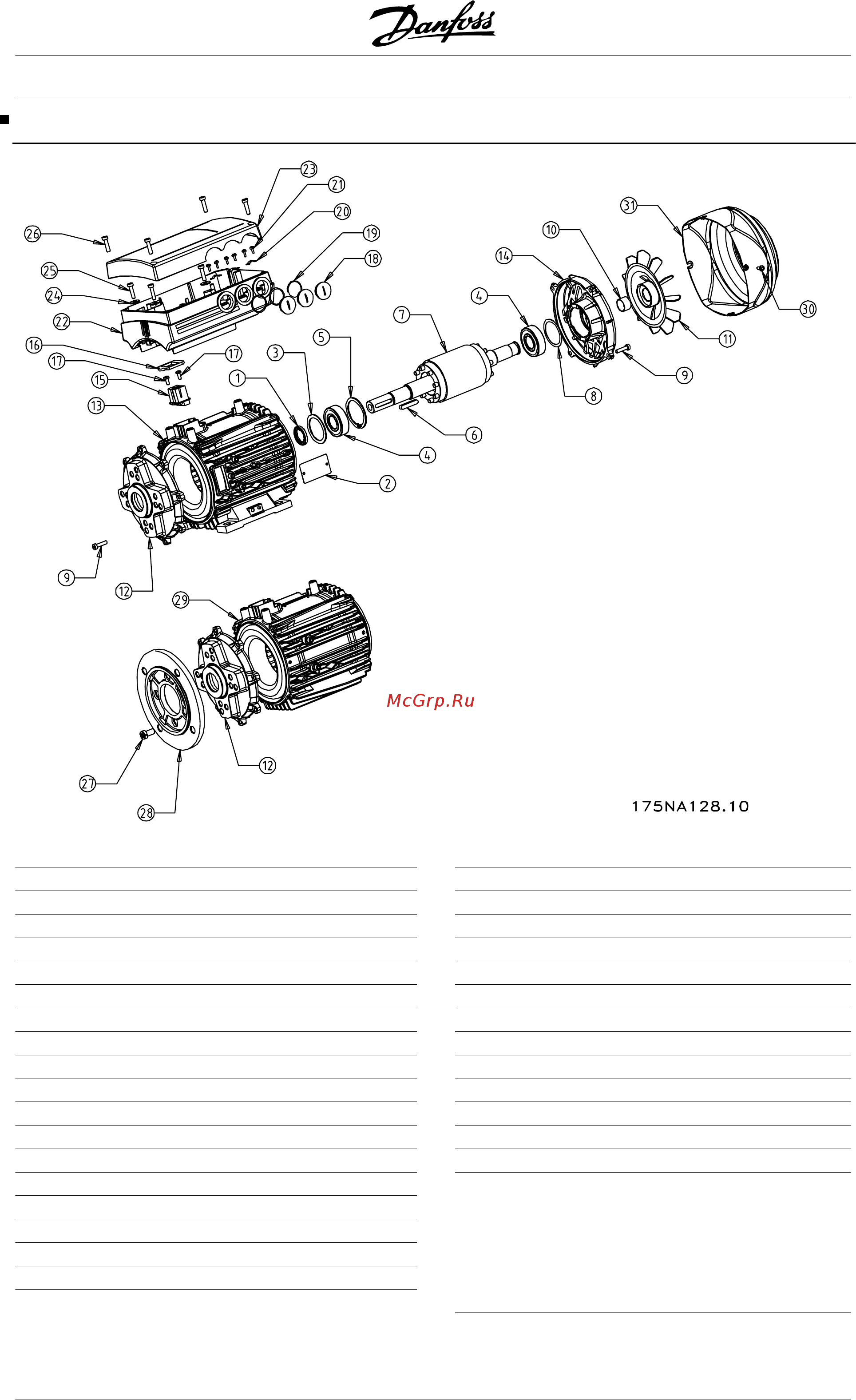

Description of the motor
The FC motor consists of the following parts:
Item Description Item Description
1 Gasket
19
Gaskets for cable glands
2 Name plate
20
Cable Clamps
3 Shim ring
21
Screws for cable clamps
4 Ball bearing
22
Frequency inverter
5 Circlip for drive-end bearing
23
Lid for frequency inverter
6 Key
24
Gasket
7 Rotor
25
Torx-screws for inverter monting
8 Shim ring for bearing
26
Screws for lid
9 Tension screws
27
Mounting screws for flange ring
10 Tolerance ring for air blower
28
Flange ring
11 Air blower
29
Stator
12 Endshield drive end
30
Mounting screws for air blower hood
13 Stator
31
Air blower hood
14 Endshield non drive end
15 Connector block
16
Gasket
17
Screws for connector block
18
Metric blind plugs
VLT
®
FCM Series
MG.03.H6.02 - VLT
®
is a registered Danfoss trademark 17
