Output shafts

Balance

All motors are dynamically balanced, to ISO 8821with

key convention to IEC 60034-14.

Inertia J [kgm2]

FCM 2 pole 4 pole

305

0.00082 0.0019

307 0.00082 0.0027

311 0.00090 0.0022

315 0.0011 0.0030

322 0.0024 0.0042

330 0.0028 0.0050

340 0.0053 0.0091

355 0.0072 0.0143

375 0.0097 0.0190

Dimensions

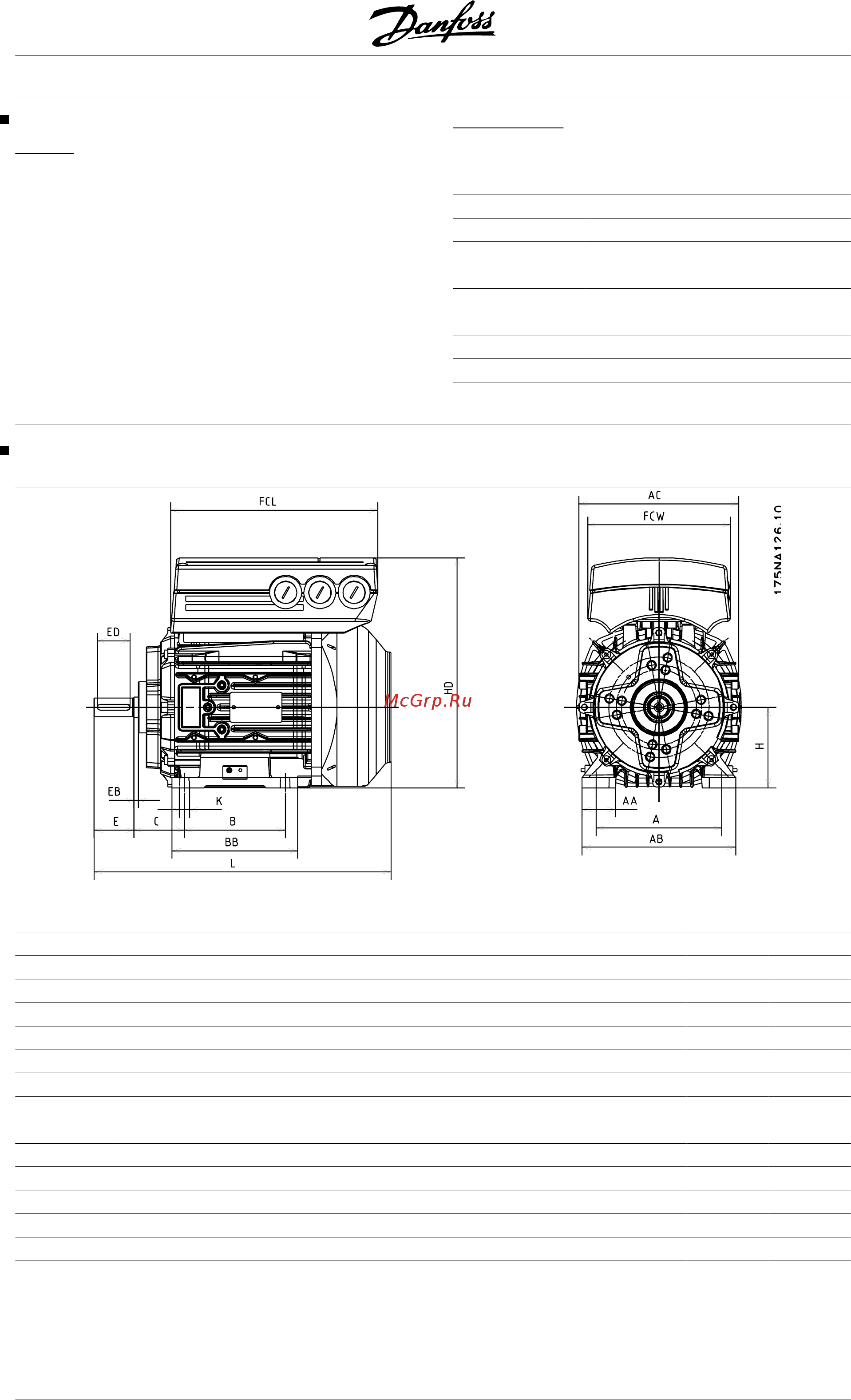

Foot mounting - B3

General

FCM

305 307 311 315 322 330 340 355 375

Frame size 80 80 90 90 100 100 112 132 132

A [mm] 125 125 140 140 160 160 190 216 216

B [mm] 100 100 125 125 140 140 140 178 178

C [mm] 50 50 56 56 63 63 70 89 89

H [mm] 80 80 90 90 100 100 112 132 132

K [mm] 9 9 9 9 12 12 12 12 12

EB [mm] 4 4 5 5 5 5 5 5 5

AA [mm] 33.5 33.5 35 35 38 38 44 55 55

AB [mm] 153 153 170 170 195 195 225 256 256

BB [mm] 125 125 155 155 176 176 176 218 218

L [mm] 293 293 319 319 363 363 380 485 485

AC [mm] 159 159 176 176 196 196 220 246 246

HD [mm] 228.5 228.5 241 241 267 267 296 344 344

FCL [mm] 206 206 230 230 256 256 286 340 340

FCW [mm] 142 142 158 158 176 176 197 235 235

VLT

FCM Series

MG.03.H6.02 - VLT
