10
Overview
English
Controls and functions

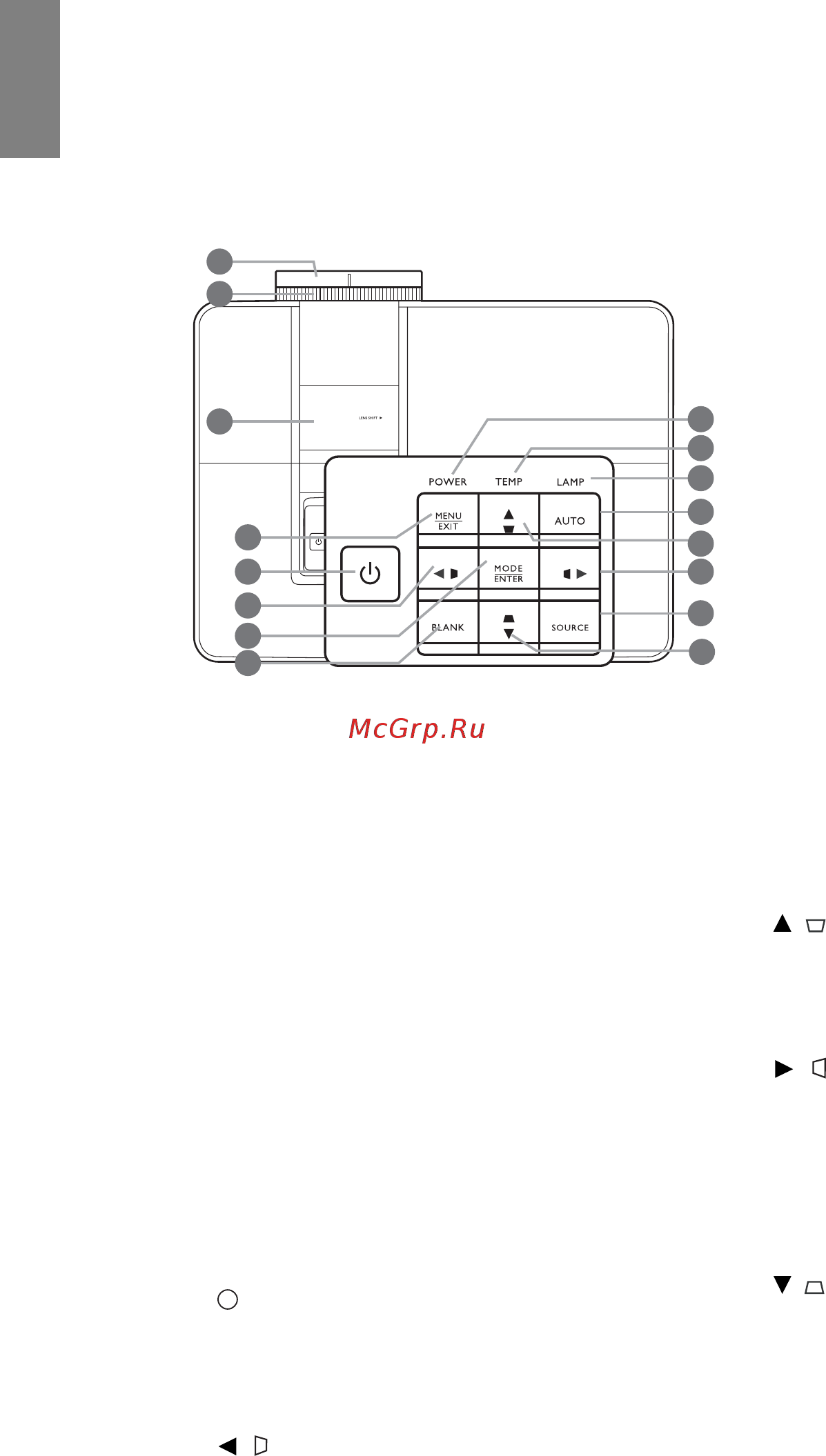

Control panel
7. MODE/ENTER
When On-Screen Display (OSD) is off,
sequentially selects a predefined picture setting
available for each input.
When OSD is on, enacts to selected OSD
menu item.
8. BLANK
Used to blank the projected image.
9. POWER indicator light
Lights up or flashes when the projector is
operating.
10.TEMP Temperature warning light
Lights up or flashes if the projector's
temperature becomes too high.
11.LAMP indicator light
Lights up or flashes when the projector lamp
has developed a problem.
12. AUTO
Automatically determines the best picture
timings for the displayed image under PC
source.
13. / Up
Increases vertical keystone value.
When the On-Screen Display (OSD) is
activated, move to the upper item.
14. / Right
Increases horizontal keystone value.
When the On-Screen Display (OSD) is
activated, move to the left item.
15.SOURCE
Switches to the next source.
16. / Down
Decreases vertical keystone value.
When the On-Screen Display (OSD) is
activated, move to the next item.
1. Focus ring
Adjusts the focus of the projected image.
2. Zoom ring
Adjusts the size of the projected image.
3. Lens shift cover
Access to the lens shift knob. Please see
"Shifting the projection lens" on page 16 for
details.
4. MENU/EXIT
Toggles the On-Screen Display (OSD) menu on
and off.
Goes back to previous OSD menus, exits and
saves any changes made using the On-Screen
Display (OSD) menu.
5. POWER
Performs the same action as POWER on the
remote control.
Toggles the projector between standby and on.
6. / Left
Decreases horizontal keystone value.
When the On-Screen Display (OSD) is
activated, move to the left item.
1
3
2
4
5
7
8
9
15
12
10
13
14
16
6
11
