47
Using the projector
English

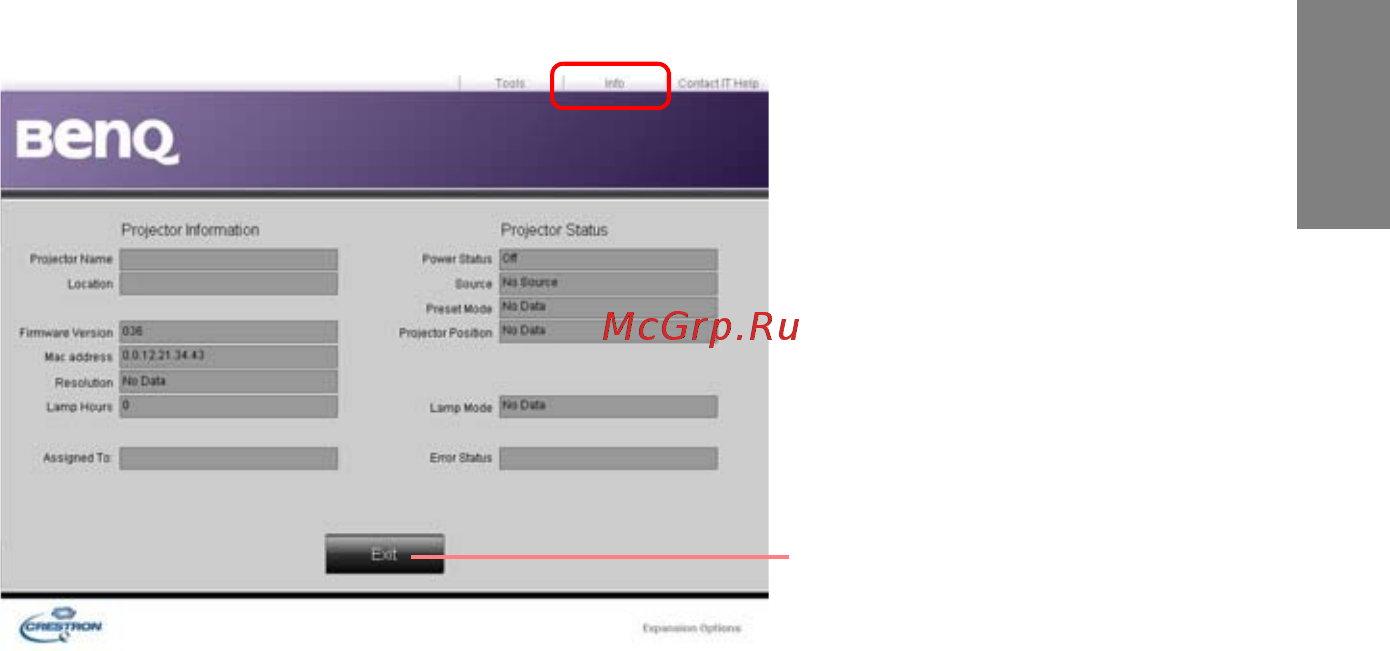

The info page displays the information and status of this projector.
For more information, visit http://www.crestron.com & www.crestron.com/getroomview.
Press Exit to go
back to the
remote network
operation page.
