23
Using the projector
English

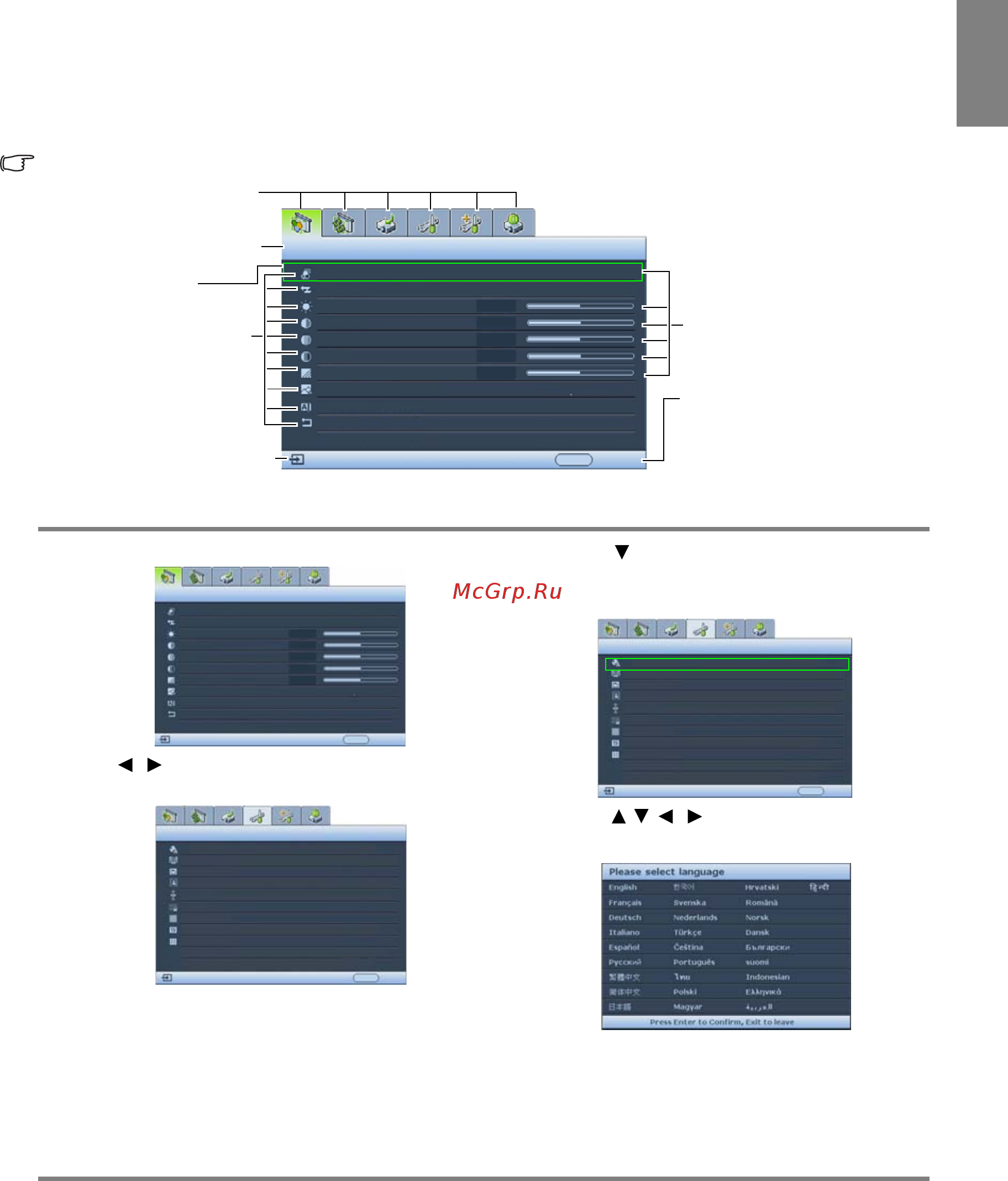

Using the menus
The projector is equipped with multilingual On-Screen Display (OSD) menus for making various
adjustments and settings.
Below is the overview of the OSD menu.
The OSD screenshots below are for reference only, and may differ from the actual design.
To use the OSD menus, please set the OSD menu to your familiar language.
Picture Mode
Reference Mode
Brightness
Contrast
Tint
Sharpness
Rename User Mode
Reset Picture Settings
3
Video
Cinema
Current input source
Main menu icon
Main menu
Sub-menu
Highlight
Press MENU/EXIT to
go back to the previous
page or to exit.
Status
50
50
50
0
Color
Advanced...
Cinema
MENU Exit
1. Press MENU/EXIT to turn the OSD menu on.
2. Use / to highlight the System Setup: Basic
menu.
3. Press to highlight Language and press
MODE/ENTER, and the language list is
displayed.
4. Press
// / to select a preferred
language and press MODE/ENTER.
5. Press MENU/EXIT twice* to leave and
save the settings.
*The first press leads you back to the main
menu and the second press closes the
OSD menu.
Picture Mode
Reference Mode
Brightness
Contrast
Tint
Sharpness
Rename User Mode
Reset Picture Settings
Video
Cinema
MENU Exit
Color
3
50
50
50
0
Advanced...
Cinema
Language
Projector Installation
Operation Settings
Remote Receiver
Menu Settings
System Setup: Basic
Background Color
Off
Test Pattern
Panel Key Lock
Splash Screen
Front
Blue
MENU Exit
Video
BenQ
Off
System Setup: Basic
Video
MENU Exit
Language
Projector Installation
Operation Settings
Remote Receiver
Menu Settings
Background Color
Test Pattern
Panel Key Lock
Splash Screen
Front
Blue
Off
BenQ
Off
Front
