36
Using the projector
English
Selecting a Gamma setting
Highlight Gamma Selection and select a preferred setting by pressing / on the projector or
remote control.
Gamma refers to the relationship between input source and picture brightness.
• Gamma 1.6/1.8/2.0/BenQ
Select these values according to your preference.
• Gamma 2.2
Increases the average brightness of the picture. Best for a lit environment, meeting room or family
room.
• Gamma 2.4/2.5/2.6
Best for viewing movies in a darkened environment.
• Gamma 2.8
Best for viewing movies which are mostly composed of dark scenes.
Adjusting Brilliant Color
This feature utilizes a new color-processing algorithm and system level enhancements to enable higher
brightness while providing truer, more vibrant colors in picture. When set to Off, Brilliant Color is
disabled.

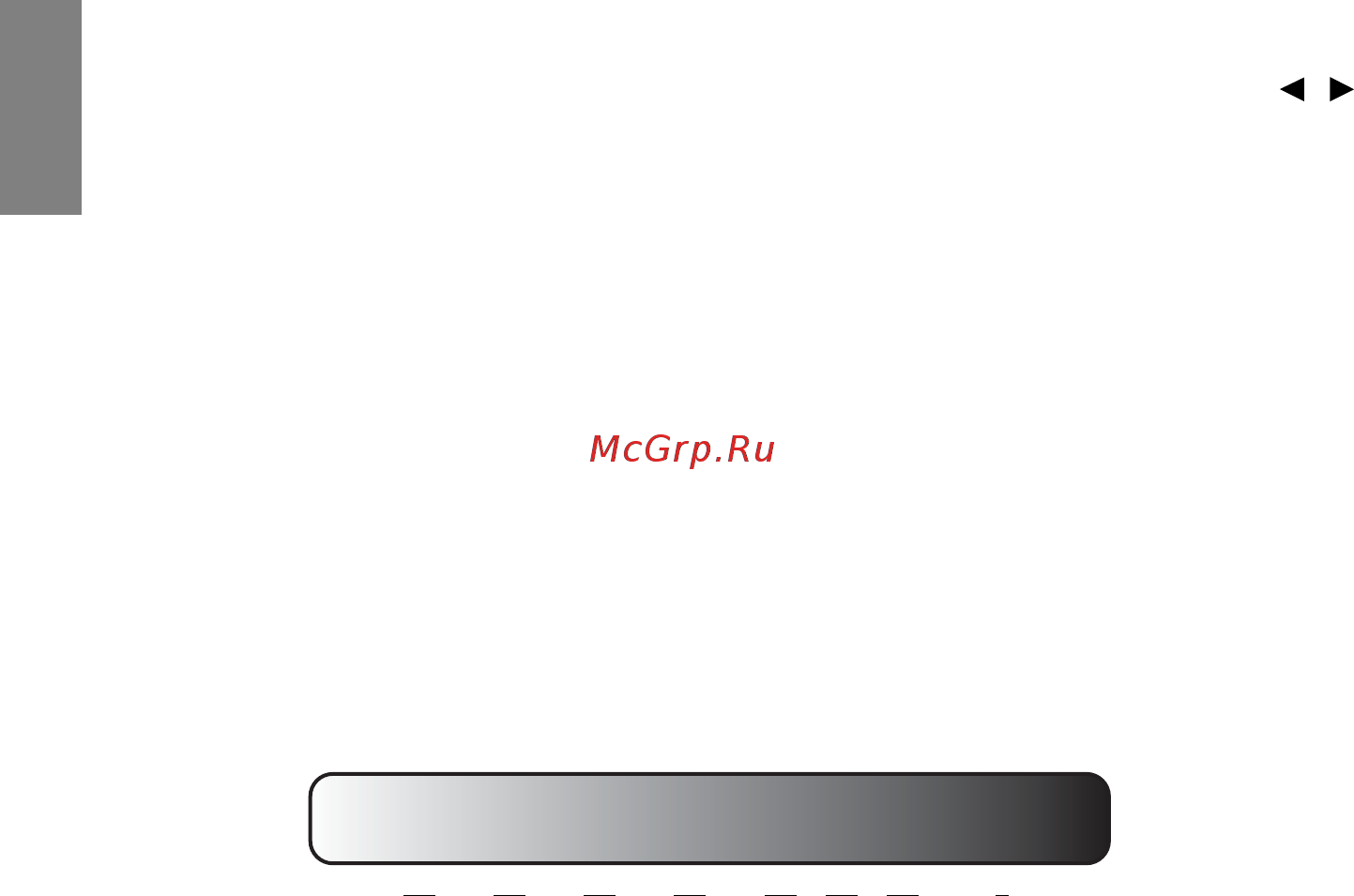

High Brightness
Low Contrast
Low Brightness
High Contrast
1.6
1.8 2.0 2.2 2.4 2.5 2.6 2.8
