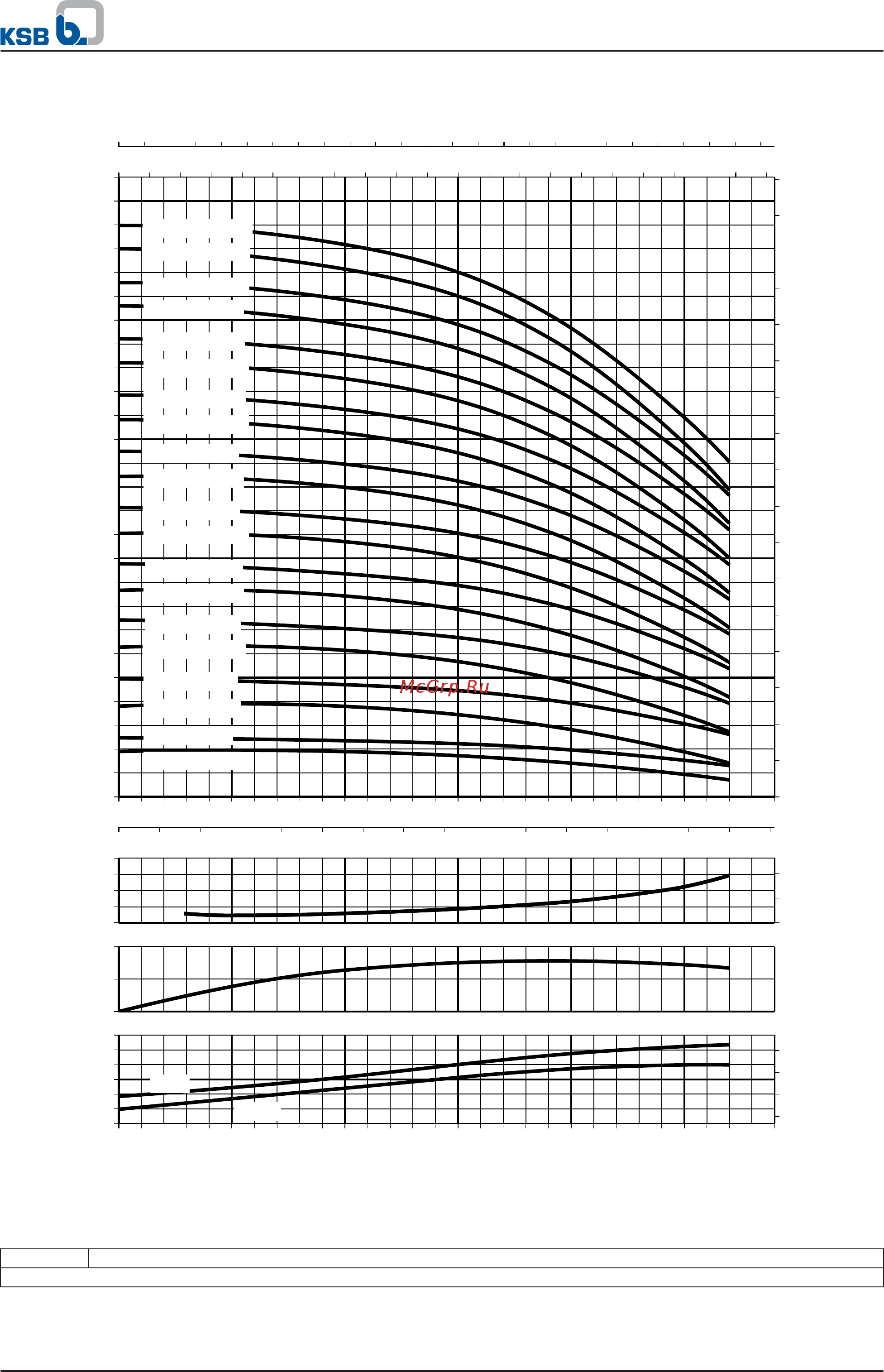

Movitec; 40B; n = 2900 rpm
MovitecB40_2900/0
0 10 20 30 40 50
Q [m³/h]
0 50 100 150 200 250
Q [US.gpm]
0 50 100 150 200
Q [IM.gpm]
0
50
100
150
200
250
H [m]
0
200
400
600
800
H [ft]
0 5 10 15
Q [l/s]
0
8
NPSH
R
[m]
0
20
NPSH
R
[ft]
0
100
Eta [%]
2
0.5
3.5
P [kW]
1
4
P [hp]
0 10 20 30 40 50
Q [m³/h]
40/10-2 37,0kW
40/10 37,0kW
40/9-2 30,0kW
40/9 37,0kW
40/8-2 30,0kW
40/8 30,0kW
40/7-2 22,0kW
40/7 30,0kW
40/6-2 18,5kW
40/6 22,0kW
40/5-2 18,5kW
40/5 18,5kW
40/4-2 15,0kW
40/4 15,0kW
40/3-2 11,0kW
40/3 11,0kW
40/2-2 5,5kW
40/2 7,5kW
40/1-1 3,0kW
St= 1-1
40/1 4,0kW
St = 1
St = Number of stages
The power input P is indicated per stage
High-pressure Pumps
High-pressure In-line Pumps
24
Movitec
