![KSB Movitec LHV025/03 [32/60] High pressure pumps](/img/pdf.png)
KSB Movitec LHV025/03 [32/60] High pressure pumps
![KSB Movitec VV04/05 [32/60] High pressure pumps](/views2/1586680/page32/bg20.png)

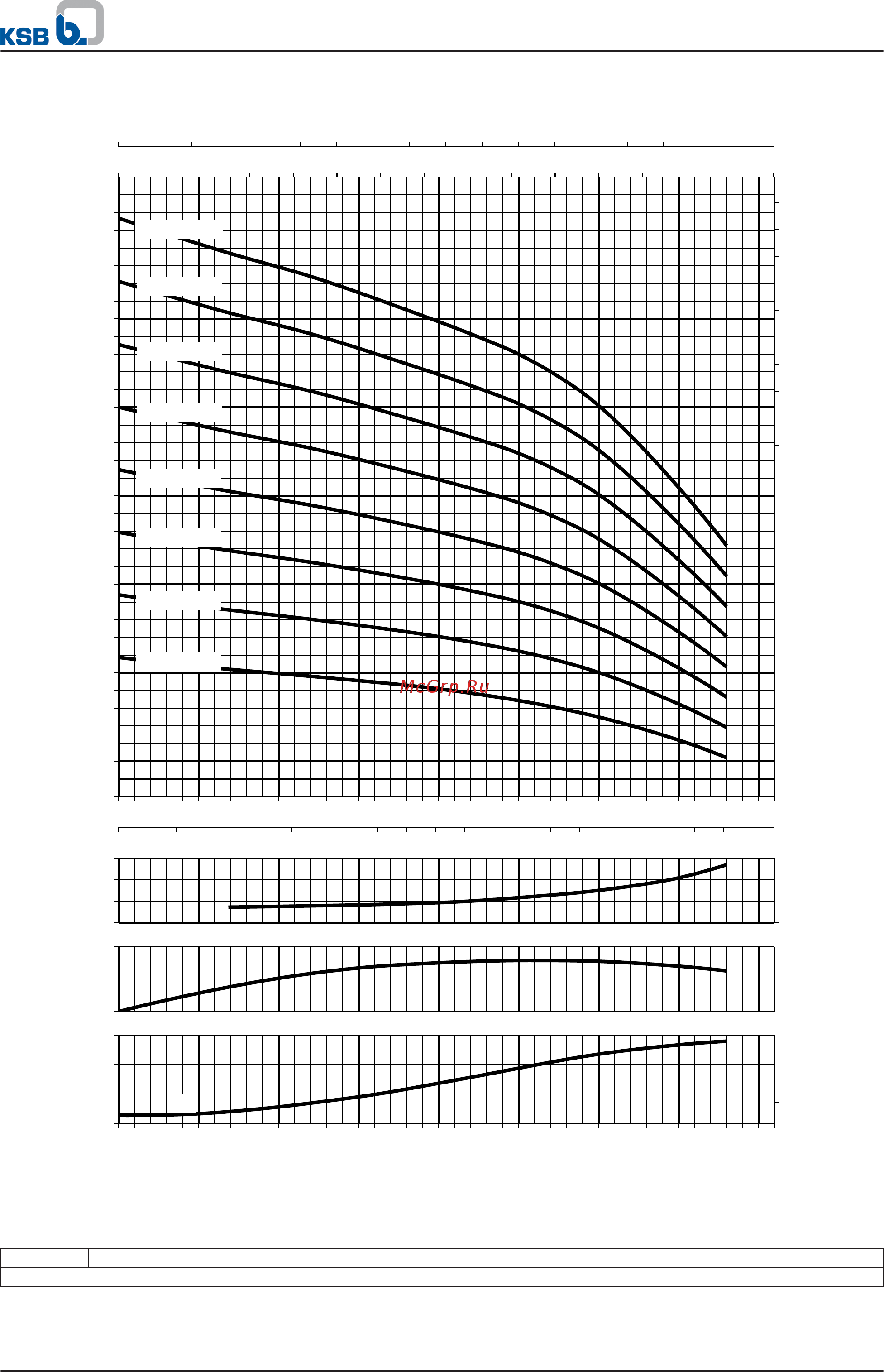

Movitec; 60B; n = 1450 rpm
MovitecB60_1450/0
0 5 10 15 20 25 30 35 40
Q [m³/h]
0 50 100 150
Q [US.gpm]
0 50 100 150
Q [IM.gpm]
10
20
30
40
50
60
70
H [m]
50
100
150
200
H [ft]
0 2 4 6 8 10
Q [l/s]
0
1.5
NPSH
R
[m]
0
4
NPSH
R
[ft]
0
100
Eta [%]
0.5
0.3
P [kW]
0.5
0.8
P [hp]
0 5 10 15 20 25 30 35 40
Q [m³/h]
60/10 7,5kW
60/9 7,5kW
60/8 5,5kW
60/7 5,5kW
60/6 4,0kW
60/5 4,0kW
60/4 3,0kW
60/3 2,2kW
St=1
St = Number of stages
The power input P is indicated per stage
High-pressure Pumps
High-pressure In-line Pumps
32
Movitec
