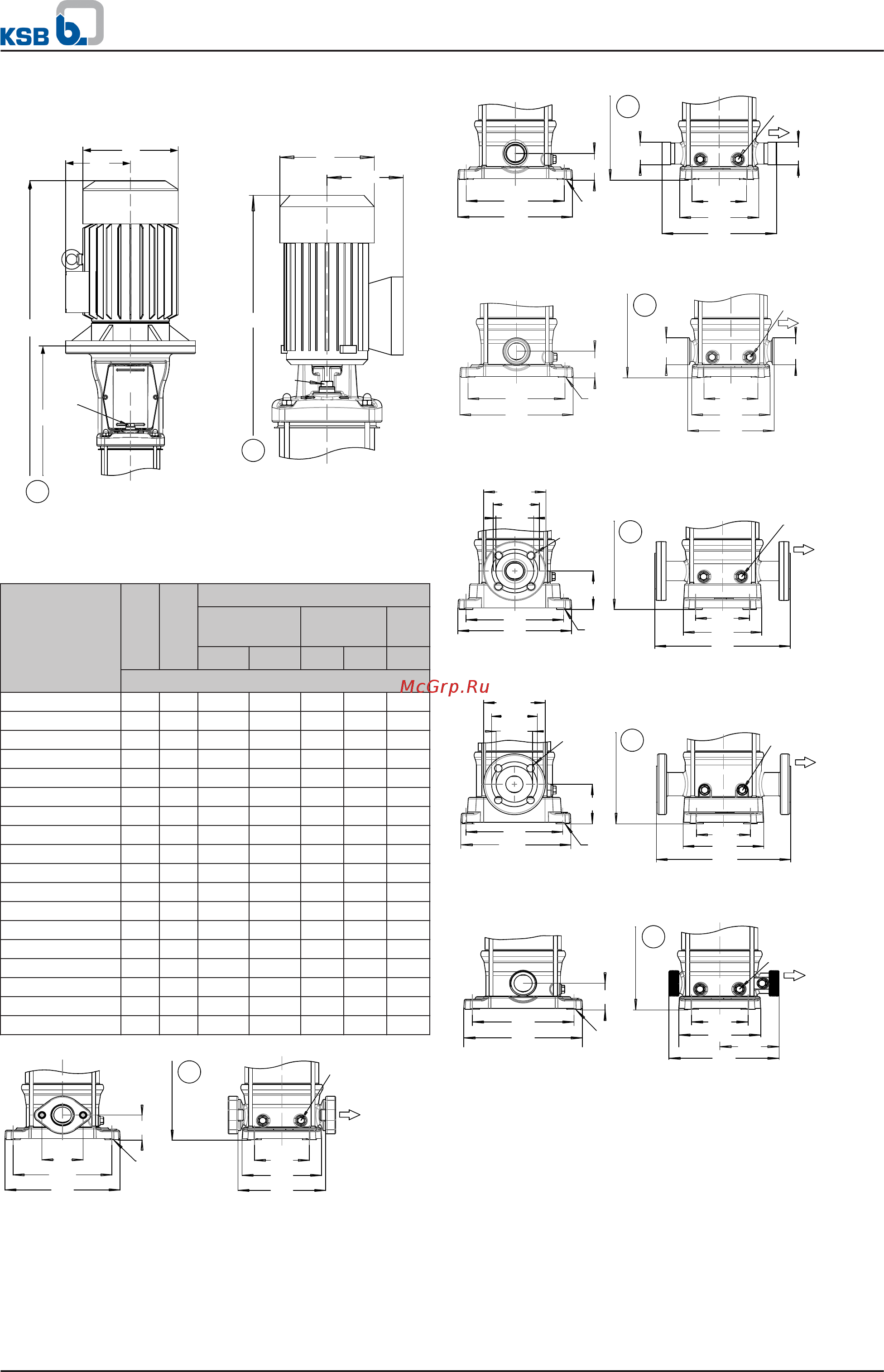

KSB Movitec LHV025/03 [35/60] High pressure pumps
![KSB Movitec LHV025/03 [35/60] High pressure pumps](/views2/1586680/page35/bg23.png)
Movitec, 4B, n = 2900 rpm
F1
F2
E1
E2
G 3/8
A
F1
E1
E2
G 3/8
A
Movitec V/VS, VV/VSF, VT/VST,
VF/VSF, VCF
Movitec VME
Dimensions
Number of
stages
E1 E2 Movitec
V/VS; VV/VSV;
VT/VST
VF/VSF; VCF VME
F1 F2 F1 F2 F1
[mm]
2 138 109 472 259 497 284 420
3 138 109 493 280 518 305 441
4 138 109 515 302 540 327 463
5 160 150 590 333 615 358 528
6 160 150 612 355 637 380 556
7 160 150 633 376 658 401 -
8 185 160 661 408 686 433 -
9 185 160 682 429 707 454 -
10 185 160 704 451 729 476 -
11 185 160 754 472 779 497 -
12 185 160 776 494 801 519 -
14 185 160 819 537 844 562 -
16 205 175 904 590 929 615 -
18 205 175 - - 972 658 -
20 205 175 - - 1015 701 -
22 220 190 - - 1067 744 -
24 220 190 - - 1110 787 -
26 220 190 - - 1153 830 -
75
180
210
50
100
145
160
G 1
G 1
G 1/4
4 × Ø13
A
Movitec V/VS
4 × Ø13
180
210
100
145
210
50
Ø 42,2
G 1/4
Ø 42,2
A
Movitec VV/VSV
180
210
50
G 1/4
Ø 50,5
4 × Ø 13
Ø 50,5
100
145
160
A
Movitec VT/VST
180
210
Ø115
Ø85
Ø70
75
4 × Ø13
4 × Ø14
G 1/4
DN 25
DN 25
100
145
250
A
Movitec VF/VSF
Ø115
Ø85
Ø68
180
210
4 × Ø14
4 × Ø13
75
DN 25
DN 25
100
150
250
G 1/4
A
Movitec VCF
180
210
50
145
195
100
105
4 × Ø13
G 1/4
G 6/4
G 6/4
A
Movitec VME
High-pressure Pumps
High-pressure In-line Pumps
Movitec
35
