KSB Movitec LHV025/03 [52/60] High pressure pumps

General assembly drawing with list of components

Movitec 2B, 4B, 6B

800

341

920.01

914.01

862

560

681

914.05

903.01

412.07

920.03

554.01

160

905

525.03

433

525.06

525.01

529

525.04

930

920.02

412.01

108.01

108.02

108.04

412.03

101

903.02

412.04

471

914.03

901.02

210

525.05

723

554.03

901.03

10-6

108.05

400

890

412.06

932

950

230

554.02

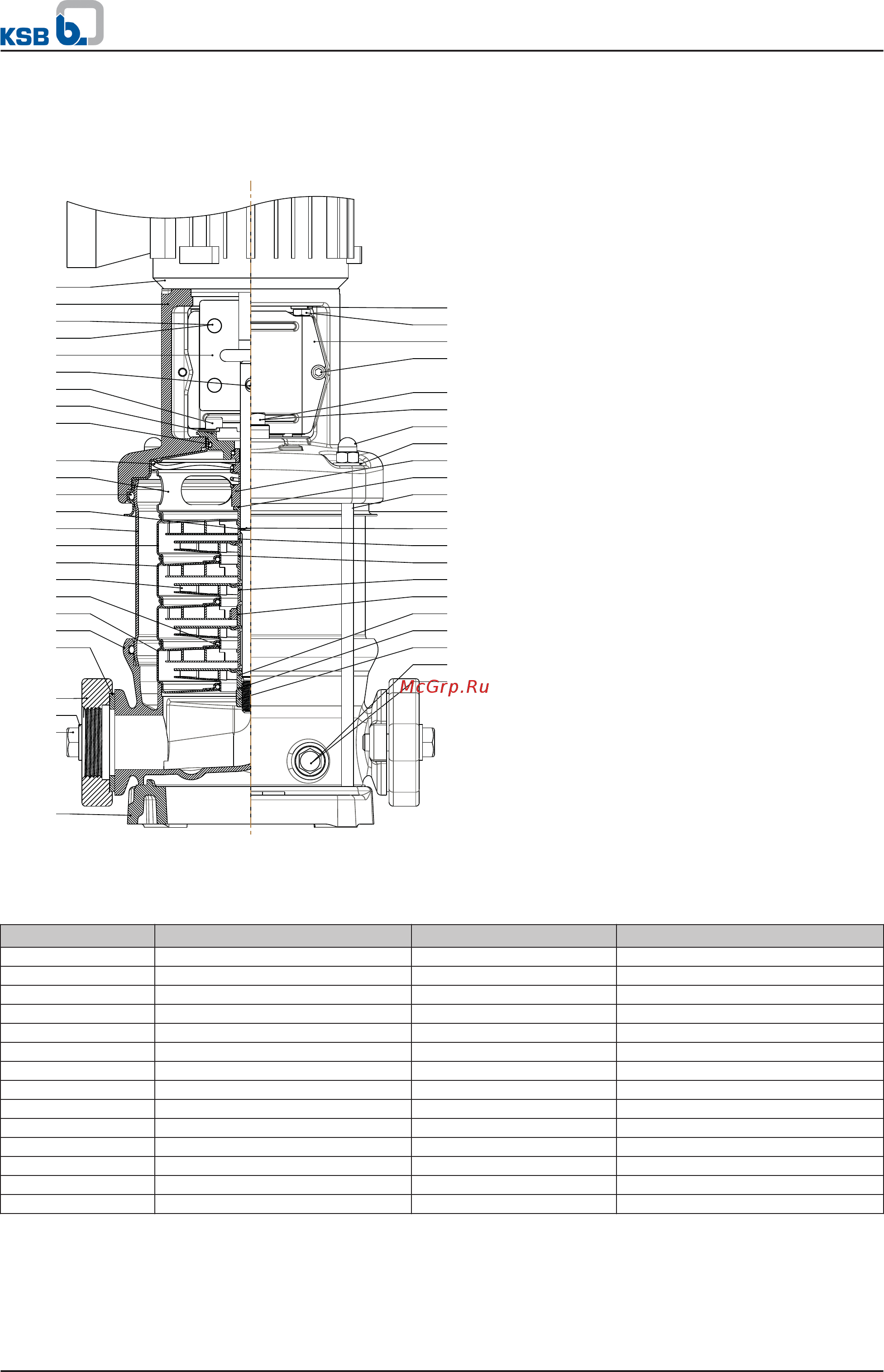

General assembly drawing of Movitec 2B, 4B, 6B

List of components

Part No. Description Part No. Description

10-6 Pump shroud 560 Pin

101 Pump casing 681 Coupling guard

108 Stage casing 723 Flange

160 Cover 800 Motor

210 Shaft 862 Coupling

230 Impeller 890 Baseplate

341 Drive lantern 901 Hexagon head bolt

400 Gasket 903 Vent plug

412 O-ring 905 Tie bolt

433 Mechanical seal 914 Hexagon socket head cap screw

471 Seal cover 920 Nut

525 Spacer sleeve 930 Safety device

529 Bearing sleeve 932 Circlip

554 Washer 950 Spring
