Movitec 25B, 40B, 60B

0.8

800

341

920.01

914.01

862

560

914.03

412.06

412.01

932

108.05

230

412.03

108.01

108.02

131

509.03

101

890

554.02

901.02

681

903.01

412.07

920.03

554.01

525.06

160

525.05

905

525.03

525.02

10-6

529

525.01

525.04

930

920.02

433

903.02

412.04

433.02

210

525.02

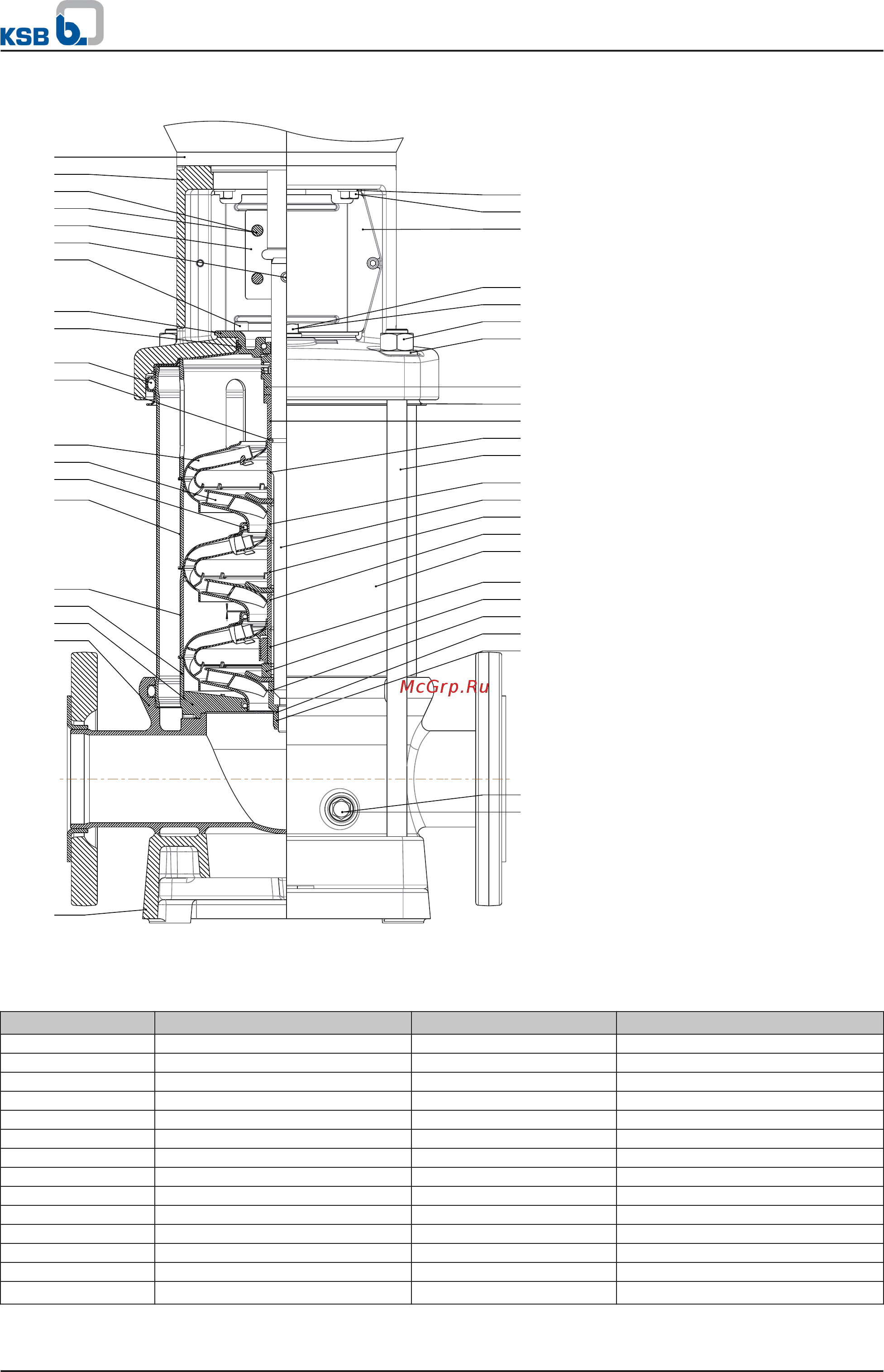

General assembly drawing of Movitec 25B, 40B, 60B

List of components

Part No. Description Part No. Description

10-6 Pump shroud 554 Washer

101 Pump casing 560 Pin

108 Stage casing 681 Coupling guard

131 Inlet ring 800 Motor

160 Cover 862 Coupling

210 Shaft 890 Baseplate

230 Impeller 901 Hexagon head bolt

341 Drive lantern 903 Vent plug

412 O-ring 905 Tie bolt

433 Mechanical seal 914 Hexagon socket head cap screw

509 Intermediate ring 920 Nut

525 Spacer sleeve 930 Safety device

529 Bearing sleeve 932 Circlip

544 Threaded bush
