![KSB Movitec VSV02/05 [44/60] High pressure pumps](/views2/1586680/page44/bg2c.png)
Movitec, 40B, n = 2900 rpm
F1
F2
E1
E2
G 3/8
A
F1
F2
E1
E2
G 3/8
P
A
Movitec VF/VSF; VCF Movitec VF/VSF; VCF
Motor version V18 Motor version V1

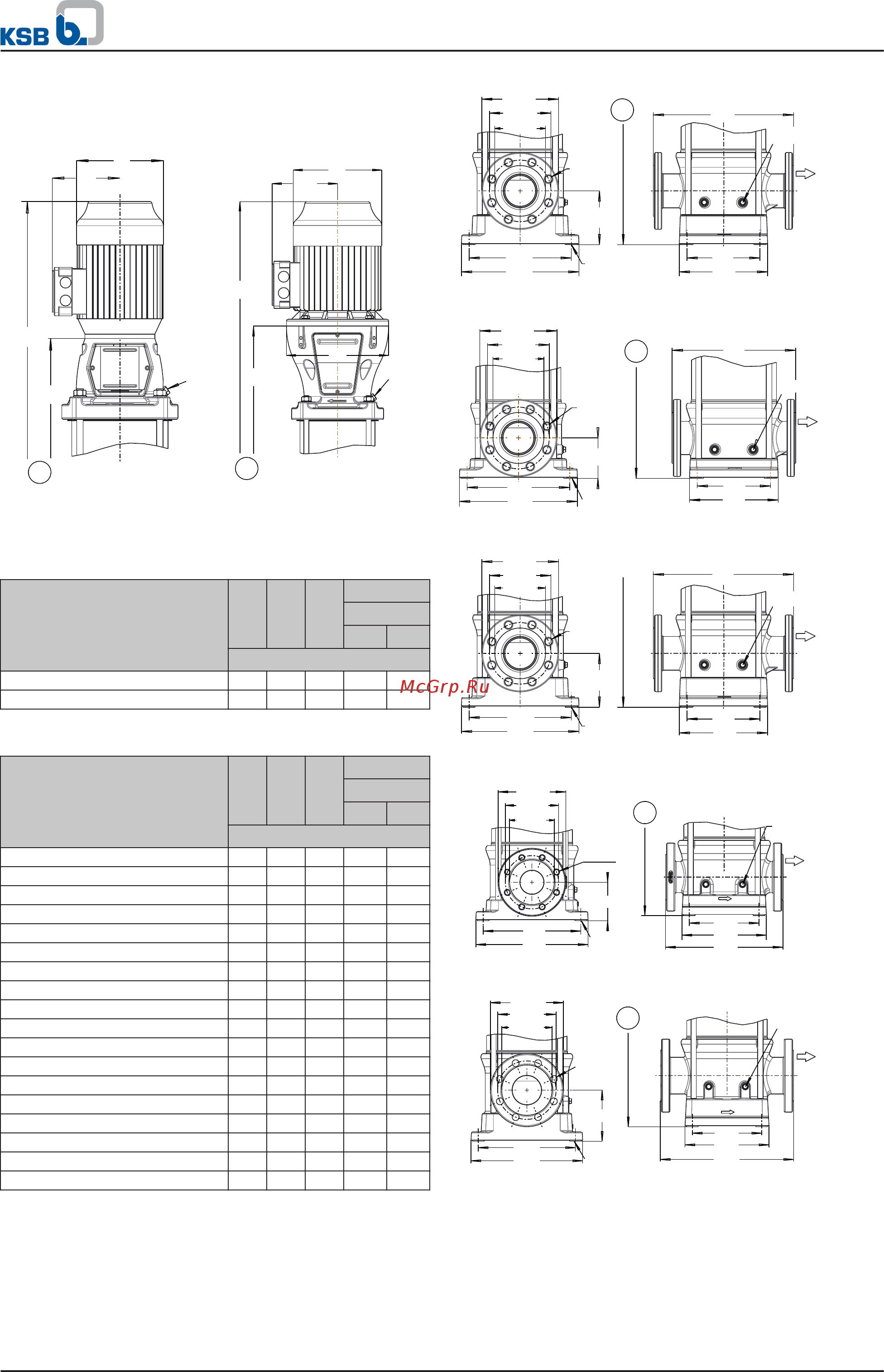

Dimensions
Motor version V18
Number of stages - blind stages E1 E2 P Movitec
VF/VSF; VCF
F1 F2
[mm]
1-1 195 145 - 817 487
1 223 167 - 827 487
Dimensions
Motor version V1
Number of stages - blind stages E1 E2 P Movitec
VF/VSF; VCF
F1 F2
[mm]
2-2 266 178 300 1002 655
2 266 178 300 1002 655
3-2 315 204 350 1261 763
3 315 204 350 1261 763
4-2 315 204 350 1339 841
4 315 204 350 1339 841
5-2 315 204 350 1499 919
5 315 204 350 1499 919
6-2 315 204 350 1577 997
6 350 223 350 1577 997
7-2 350 223 350 1655 1075
7 400 290 400 1725 1075
8-2 400 290 400 1803 1153
8 400 290 400 1803 1153
9-2 400 290 400 1881 1231
9 400 290 400 1881 1231
10-2 400 290 400 1959 1309
10 400 290 400 1959 1309
Ø
132
266
306
140
190
230
365
Ø
200
Ø
160
DN 80
G 1/4
8 ×
Ø
19
4 ×
Ø
14
DN 80
A
Movitec VF/VSF; PN 16, 25
Ø
132
266
306
105
190
230
320
Ø
200
Ø
160
DN 80
G 1/4
8 ×
Ø
19
4 ×
Ø
14
DN 80
A
Movitec VF/VSF; PN 16, 25 - interchangeable range
Ø
138
266
306
140
190
230
365
Ø
200
Ø
160
DN 80
G 1/4
8 ×
Ø
19
4 ×
Ø
14
DN 80
Movitec VF/VSF; PN 40
Ø145
190
230
320
Ø185
Ø122
266
306
105
8 × M16
G 1/4
DN 65
DN 65
4 × 14
A
Movitec VCF; DN 65
Ø200
Ø160
Ø138
8 × Ø19
4 × Ø14
140
266
306
190
230
365
G 1/4
DN 80
DN 80
A
Movitec VCF; DN 80
High-pressure Pumps
High-pressure In-line Pumps
44
Movitec
