KSB Movitec LHV025/03 [25/60] High pressure pumps
![KSB Movitec LHS090/03 [25/60] High pressure pumps](/views2/1586680/page25/bg19.png)

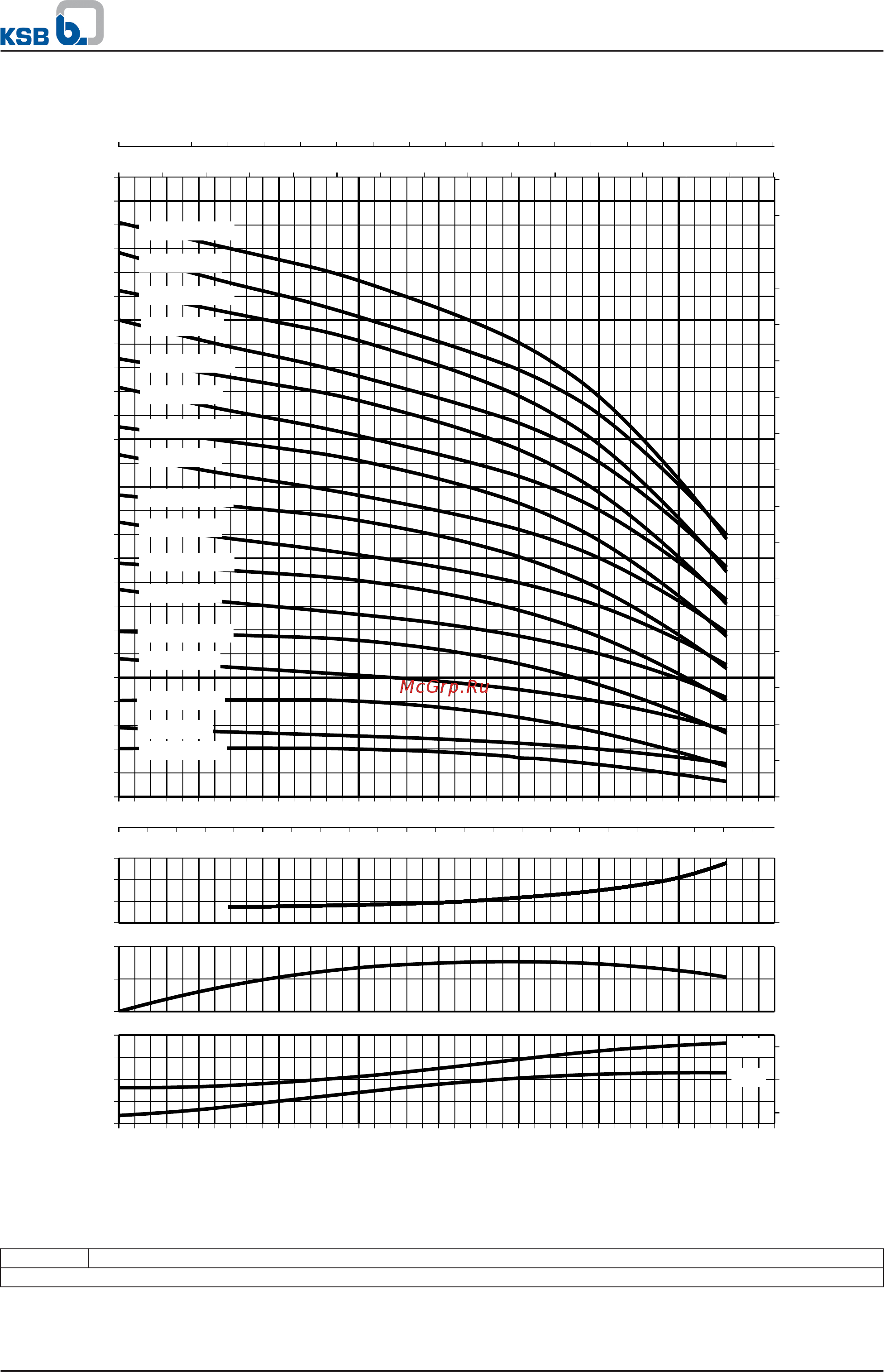

Movitec; 60B; n = 2900 rpm
MovitecB60_2900/1
0 10 20 30 40 50 60 70 80
Q [m³/h]
0 100 200 300
Q [US.gpm]
0 100 200 300
Q [IM.gpm]
0
50
100
150
200
250
H [m]
0
200
400
600
800
H [ft]
0 5 10 15 20
Q [l/s]
0
6
NPSH
R
[m]
0
10
NPSH
R
[ft]
0
100
Eta [%]
5
1
P [kW]
2
6
P [hp]
0 10 20 30 40 50 60 70 80
Q [m³/h]
60/9-2 45,0kW
60/8-2 37,0kW
60/8 45,0kW
60/7-2 37,0kW
60/7 37,0kW
60/6-2 30,0kW
60/6 30,0kW
60/5-2 22,0kW
60/5 30,0kW
60/4-2 18,5kW
60/4 22,0kW
60/3-2 15,0kW
60/3 18,5kW
60/2-2 7,5kW
60/2 11,0kW
60/1-1 4,0kW
St=-1
60/1 5,5kW
St=1
St = Number of stages
The power input P is indicated per stage
High-pressure Pumps
High-pressure In-line Pumps
Movitec
25
