KSB Movitec LHV025/03 [39/60] High pressure pumps
![KSB Movitec LHS06/05 [39/60] High pressure pumps](/views2/1586680/page39/bg27.png)

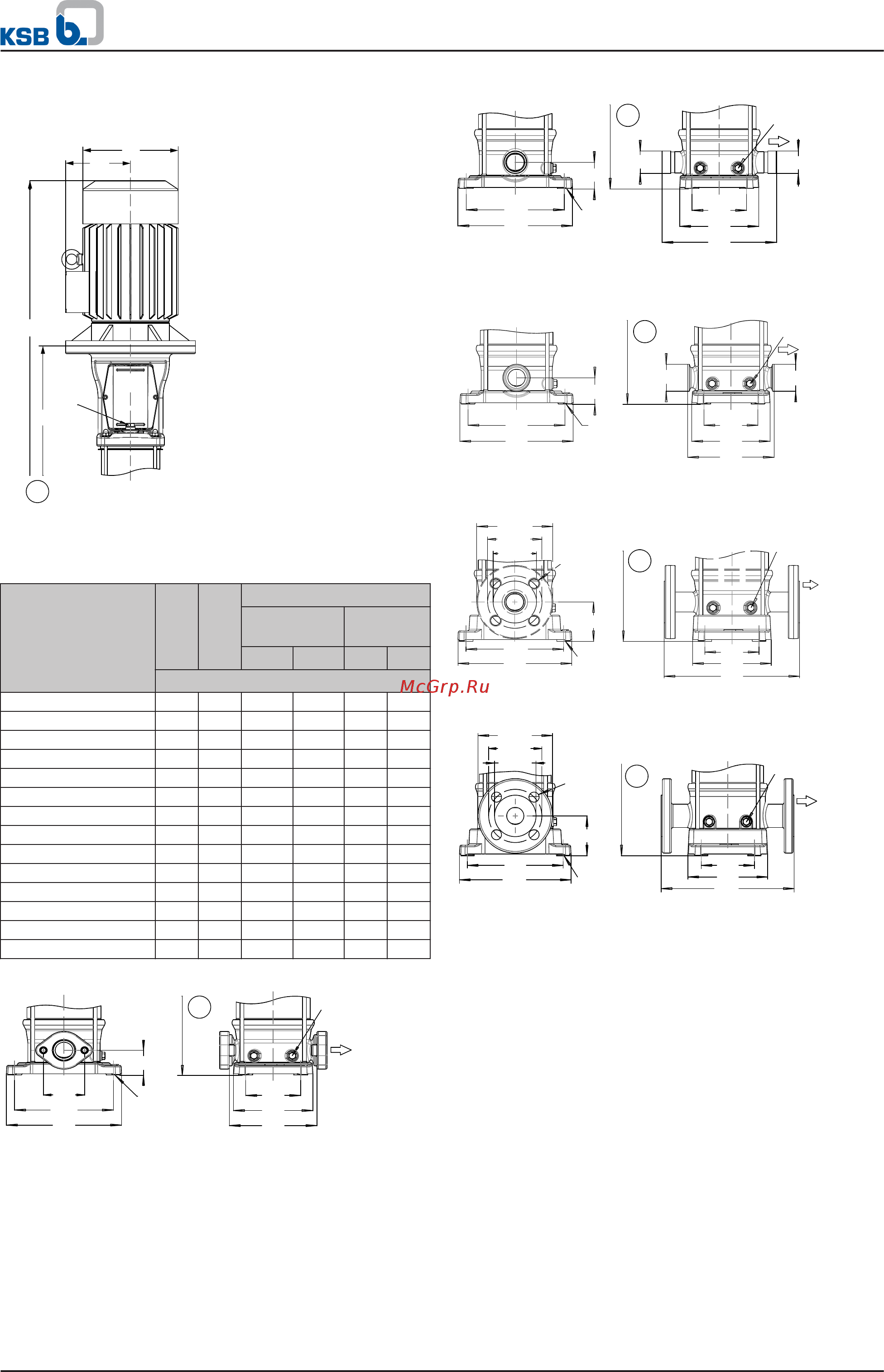

Movitec, 15B, n = 1450 rpm
F1
F2
E1
E2
G 3/8
A
Movitec V/VS, VV/VSF, VT/VST,
VF/VSF, VCF
Dimensions
Number of stages E1 E2 Movitec
V/VS; VV/VSV;
VT/VST
VF/VSF; VCF
F1 F2 F1 F2
[mm]
1 138.5 110 592 346 602 356
2 138.5 110 592 346 602 356
3 138.5 110 618 372 628 382
4 138.5 110 645 399 655 409
5 138.5 110 671 425 681 435
6 159 155 727 452 737 462
7 159 155 758 488 768 498
8 159 155 785 515 795 525
9 159 155 811 541 821 551
10 176.5 160 853 568 863 578
11 176.5 160 879 594 889 604
13 176.5 160 932 647 942 657
15 176.5 160 1040 710 1050 720
17 176.5 160 1093 763 1103 773
100
215
247
80 (90)
130
184
200
G 2
G 2
G 1/4
4 × Ø14
A
Movitec V/VS
4 × Ø14
215
247
130
184
261
90
Ø 60,3
G 1/4
Ø 60,3
A
Movitec VV/VSV
215
247
90
G 1/4
Ø 64
4 × Ø 14
Ø 64
130
184
200
A
Movitec VT/VST
215
247
Ø165
Ø125
Ø100
90
4 × Ø14
4 × Ø18
G 1/4
DN 50
DN 50
130
184
300
A
Movitec VF/VSF
Ø165
Ø125
Ø100
215
247
4 × Ø19
4 × Ø14
90
DN 50
DN 50
130
184
300
G 1/4
A
Movitec VCF
High-pressure Pumps
High-pressure In-line Pumps
Movitec
39
