Specifi cations
12 24 690 01 Rev. OKohlerEngines.com

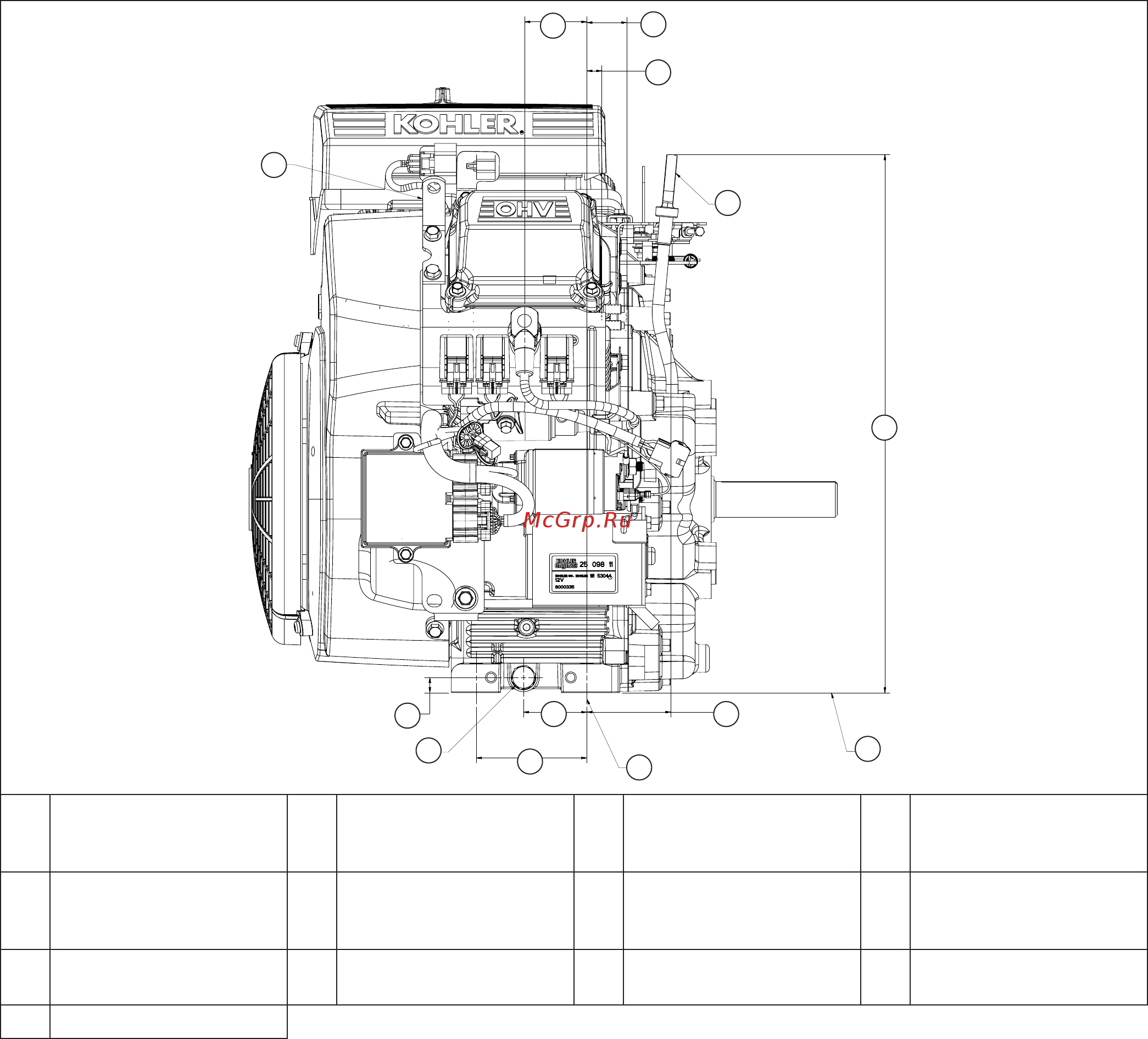

Engine Dimensions with Low-Profi le Air Cleaner-Starter Side
A
B
C
D
E
G
F
H
I
J
K
L
M
A
50.0 mm (1.969 in.)
Center Line Spark
Plug
B
12.0 mm (0.472 in.)
Exhaust Port #1
C
32.0 mm (1.260 in.)
Exhaust Port #2
D Dipstick
E
432.58 mm
(17.031 in.)
F
Engine Mounting
Surface
G
67.50 mm (2.657 in.)
Muffl er Mounting
Bosses
H
Center Line Mounting
Hole "A"
I 89.0 mm (3.504 in.) J 51.0 mm (2.008 in.) K
Oil Drain Plug 3/8 in.
NPT
L 12.28 mm (0.483 in.)
M Lift Strap
