EFI SYSTEM-ELECTRONIC THROTTLE BODY (ETB) ECH
46
24 690 01 Rev. OKohlerEngines.com
Fuel Injectors
WARNING
Explosive Fuel can cause fi res and severe
burns.
Fuel system ALWAYS remains under HIGH
PRESSURE.
Wrap a shop towel completely around fuel pump
module connector. Press release button(s) and slowly
pull connector away from fuel pump module allowing
shop towel to absorb any residual fuel in high pressure
fuel line. Any spilled fuel must be completely wiped up
immediately.

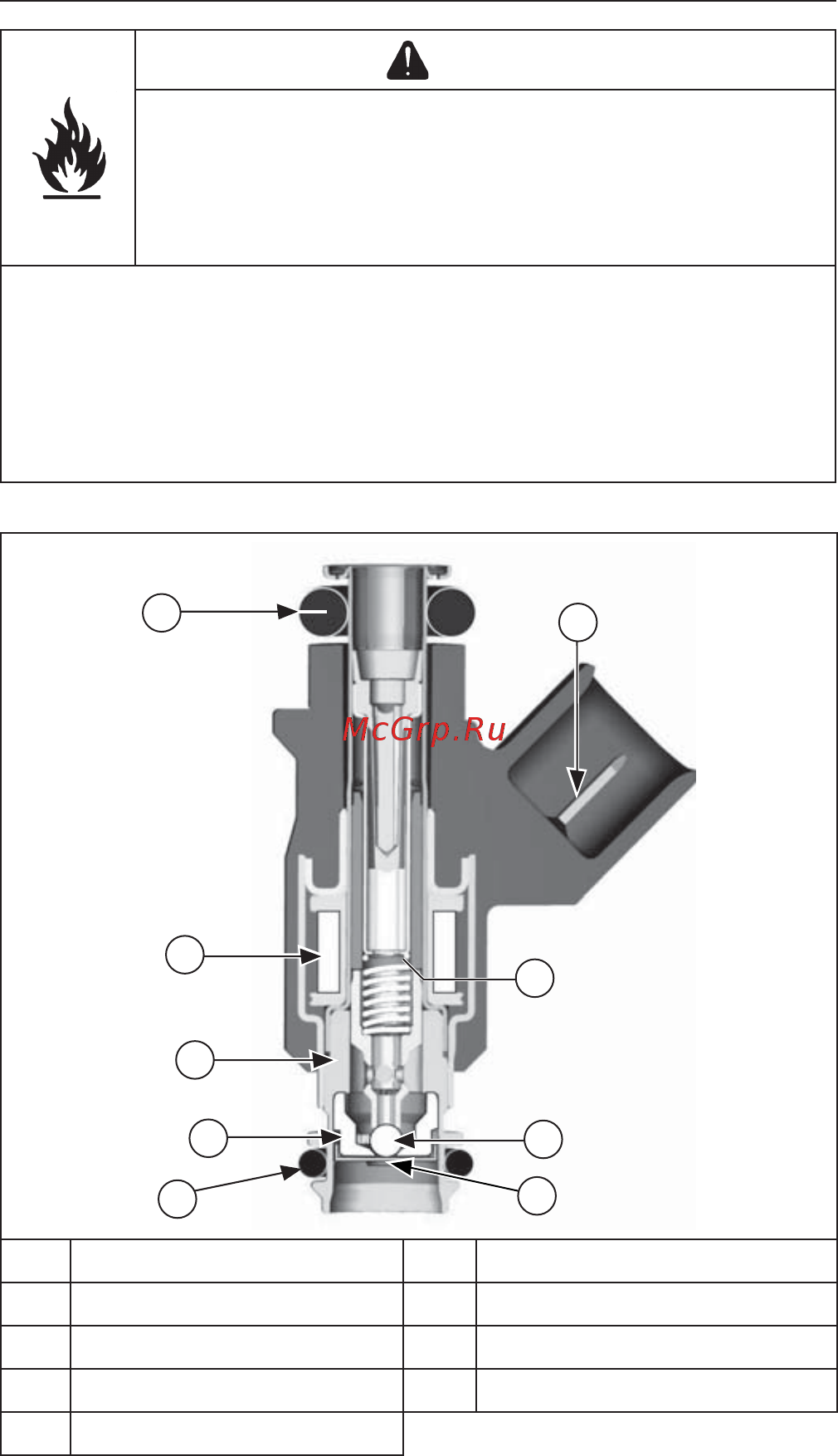

Details
A
B
C
E
F
H
I
G
D
A Electrical Connection B Upper O-ring
C Solenoid Winding D Armature
E Valve Housing F Valve Seat
G Valve End H Lower O-ring
I Director Plate
NOTE: Do not apply voltage to fuel injector(s).
Excessive voltage will burn out injector(s). Do
not ground injector(s) with ignition ON.
Injector(s) will open/turn on if relay is energized.
NOTE: When cranking engine with injectors
disconnected, fault codes will be registered in
ECU and will need to be cleared using software
fault clear or an ECU Reset Procedure.
Injector problems typically fall into three general
categories: electrical, dirty/clogged, or leakage. An
electrical problem usually causes one or both of injectors
to stop functioning. Several methods may be used to
check if injectors are operating.
1. With engine running at idle, listen for a buzzing or
clicking sound.
2. Disconnect electrical connector from an injector and
listen for a change in idle performance (only running
on one cylinder) or a change in injector noise or
vibration.
3. Using KOHLER
®
Diagnostic System (KDS) Gen 2,
see Tools and Aids, perform Adjust Injector Timing
test or Injector #1 or #2 test as found in test section
of tool. See instructions within help (?) area of each
test.
If an injector is not operating, it can indicate either a bad
injector, or a wiring/electrical connection problem. Check
as follows:
1. Disconnect electrical connector from both injectors.
Plug a 12 volt noid light into one connector.
2. Make sure all safety switch requirements are met.
Crank engine and check for fl ashing of test light.
Turn key OFF for at least 10 seconds between tests
to allow ECU to go to sleep and reawake. Repeat
test at other connector.
a. If fl ashing occurs, use an ohmmeter (Rx1 scale)
and check resistance of each injector across two
terminals. Proper resistance is 11-13 Ω. If injector
resistance is correct, check whether connector
and injector terminals are making a good
connection. If resistance is not correct, replace
injector.
Check all electrical connections, connectors, and wiring
harness leads if resistance is incorrect.
Injector leakage is very unlikely, but in those rare
instances it can be internal (past tip of valve needle),
or external (weeping around injector O-rings). Loss of
system pressure from leakage can cause hot restart
problems and longer cranking times. To check for
leakage it will be necessary to loosen or remove blower
housing which may involve removing engine from unit.
Refer to Disassembly for removal of injector.
1. Remove manifold mounting bolts and separate
throttle body/manifold from engine leaving TPS, high
pressure fuel line, injectors and fuel line connections
intact. Discard old gaskets.
2. Position manifold assembly over an appropriate
container to capture fuel and turn key switch ON to
activate fuel pump and pressurize system. Do not
turn switch to START position.
3. If either injector exhibits leakage of more than two to
four drops per minute from tip, or shows any sign of
leakage around outer shell, turn ignition switch OFF
and replace injector as follows.
4. Depressurize fuel system.
5. Clean any dirt accumulation from sealing/mounting
area of faulty injector(s) and disconnect electrical
connector(s).
6. Pull retaining clip off top of injector(s). Remove
screw holding injector(s) from manifold.
7. Reverse appropriate procedures to install new
injector(s) and reassemble engine. Use new O-rings
and retaining clips any time an injector is removed
(new replacement injectors include new O-rings and
retaining clips). Lubricate O-rings lightly with clean
engine oil. Use installation tool provided with O-rings
to install new upper O-ring. Place tool into fuel
injector inlet. Place one side of O-ring into O-ring
groove and roll O-ring over tool onto fuel injector.
Torque screw securing fuel injector caps and blower
housing mounting screws to 7.3 N·m (65 in. lb.), and
intake manifold and air cleaner mounting screws to
10.5 N·m (93 in. lb.). An ECU Reset will need to be
completed.
