Kohler Command PRO EFI ECH749 [143/180] Disassembly inspection and service
![Kohler Command PRO EFI ECH749 [143/180] Disassembly inspection and service](/views2/1597403/page143/bg8f.png)
Some engines also have a dipstick tube support
bracket secured with this bracket on #1 side.
Remove screw and clamp securing tube to support
bracket. Tube can stay in closure plate.
5. Slide clamp and disconnect breather hose from
breather cover.
6. Disconnect vent hose from throttle body.

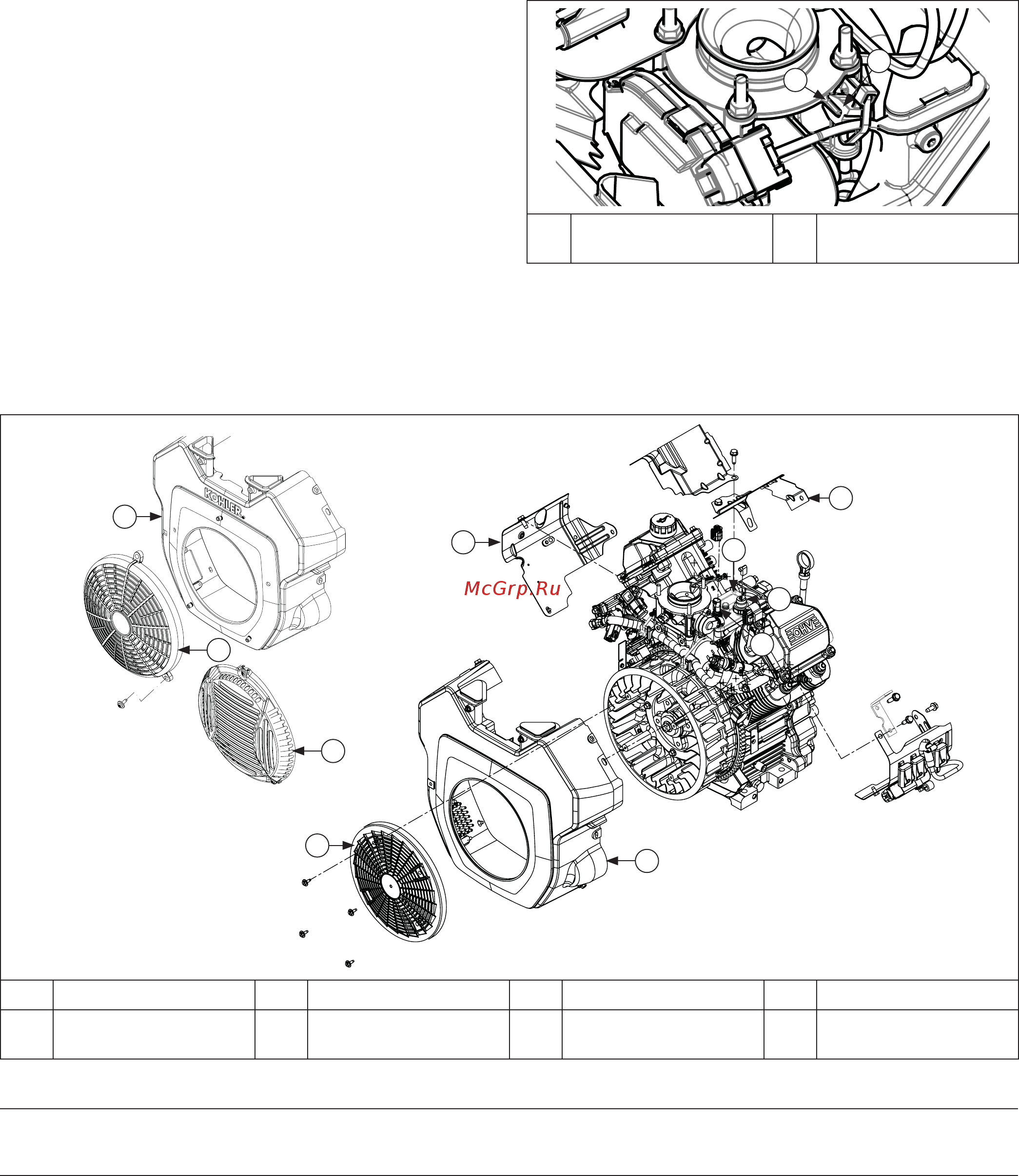

External Engine Components
A
C
D
G
B
E
F
B
H
H
A Debris Screen B Blower Housing C Outer Baffl e D Breather Cover
E Oil Sentry
TM
F
Engine Temperature
Sensor
G Inner Baffl e H Debris Screen Guard
Remove Debris Screen Guard (if equipped)
Remove screws (and spacers) securing debris screen guard and remove debris screen guard.
Remove Debris Screen (if equipped)
NOTE: Fan will be loose, but cannot be removed until after blower housing is removed.
1. Remove socket head cap screws securing metal grass screen and remove screen.
2. Remove spacers, paying attention to curvature of spring washers between spacers and fan.
3. If there is a plastic grass screen attached to fan, remove screws securing grass screen. Removing screen will
expose screws fastening fan to fl ywheel.
A
B
A ETB Rib B
Wire Tie
Retention Teeth
7. Disconnect TPS/ETB connector. Carefully remove
retention teeth of wire tie securing TPS/ETB lead to
rib on ETB.
8. Lift ETB with O-ring off intake manifold.
Disassembly/Inspection and Service
14324 690 01 Rev. O KohlerEngines.com
