Specifi cations
924 690 01 Rev. O KohlerEngines.com

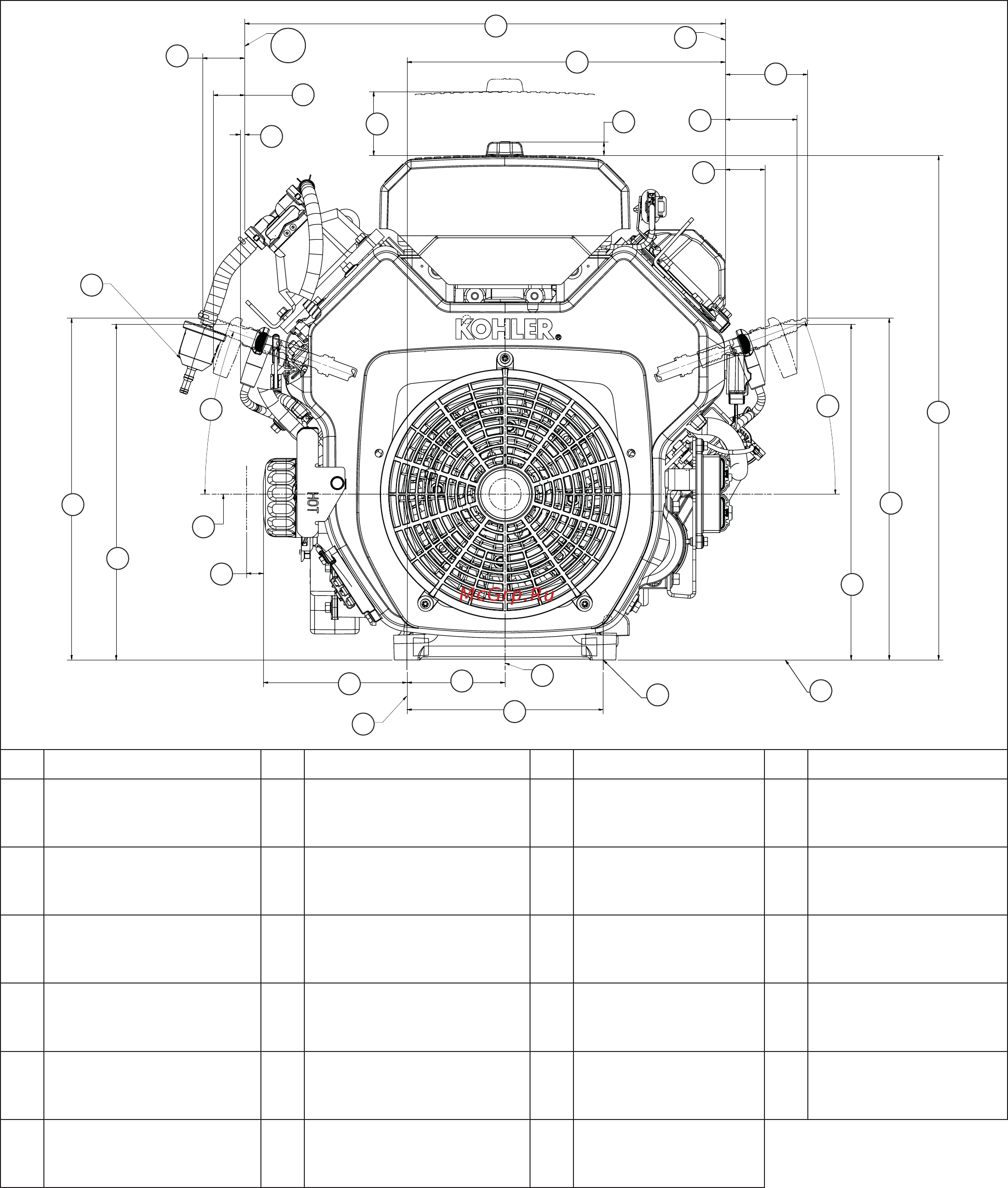

Engine Dimensions with Low-Profi le Air Cleaner-Flywheel Side
F
E
G
H
I
K
L
N
O
M
P
Q
R
S
T
A
B
D
C
J
U
V
X
W
Y
Z
AA
J
I
A 451.16 mm (17.762 in.) B 298.93 mm (11.769 in.) C Valve Cover D 12.95 mm (0.510 in.)
E
67.19 mm
(2.645 in.) Spark
Plug Boot Removal
F
77.17 mm
(3.038 in.) Spark
Plug Removal
G
37.15 mm
(1.463 in.) Spark
Plug Boot
H
473.43 mm
(18.639 in.)
I
320.89 mm
(3.038 in.) Spark
Plug Removal
J 20° K
315.14 mm
(12.407 in.) Spark
Plug Boot Removal
L
Engine Mounting
Surface
M
4X Ø 10.3 mm
(0.406 in.)
N 184.20 mm (7.252 in.) O Engine Center Line P 92.10 mm (3.628 in.)
Q
Center Line Mounting
Hole "A"
R 134.80 mm (5.307 in.) S
15.70 mm
(0.618 in.) Oil Filter
Removal
T
Crankshaft Center
Line
U
315.25 mm
(12.412 in.) Spark Plug
Boot Removal
V Fuel Filter W
4.12 mm (0.162 in.)
Spark Plug Boot
X
29.58 mm
(1.165 in.) Spark
Plug Boot Removal
Y
60.0 mm (2.362 in.) Air
Cleaner Cover
Removal
Z
39.66 mm (1.562 in.)
Spark Plug Removal
AA Fuel Pump
