Lubrication System

This engine uses a full pressure lubrication system which delivers oil under pressure to crankshaft, camshaft,

connecting rod bearing surfaces, and hydraulic valve lifters.

A high-eﬃ ciency gerotor oil pump maintains high oil ﬂ ow and oil pressure, even at low speeds and high operating

temperatures. A pressure relief valve limits maximum pressure of system. Closure plate must be removed to service

oil pickup, pressure relief valve, and oil pump.

Lubrication Components

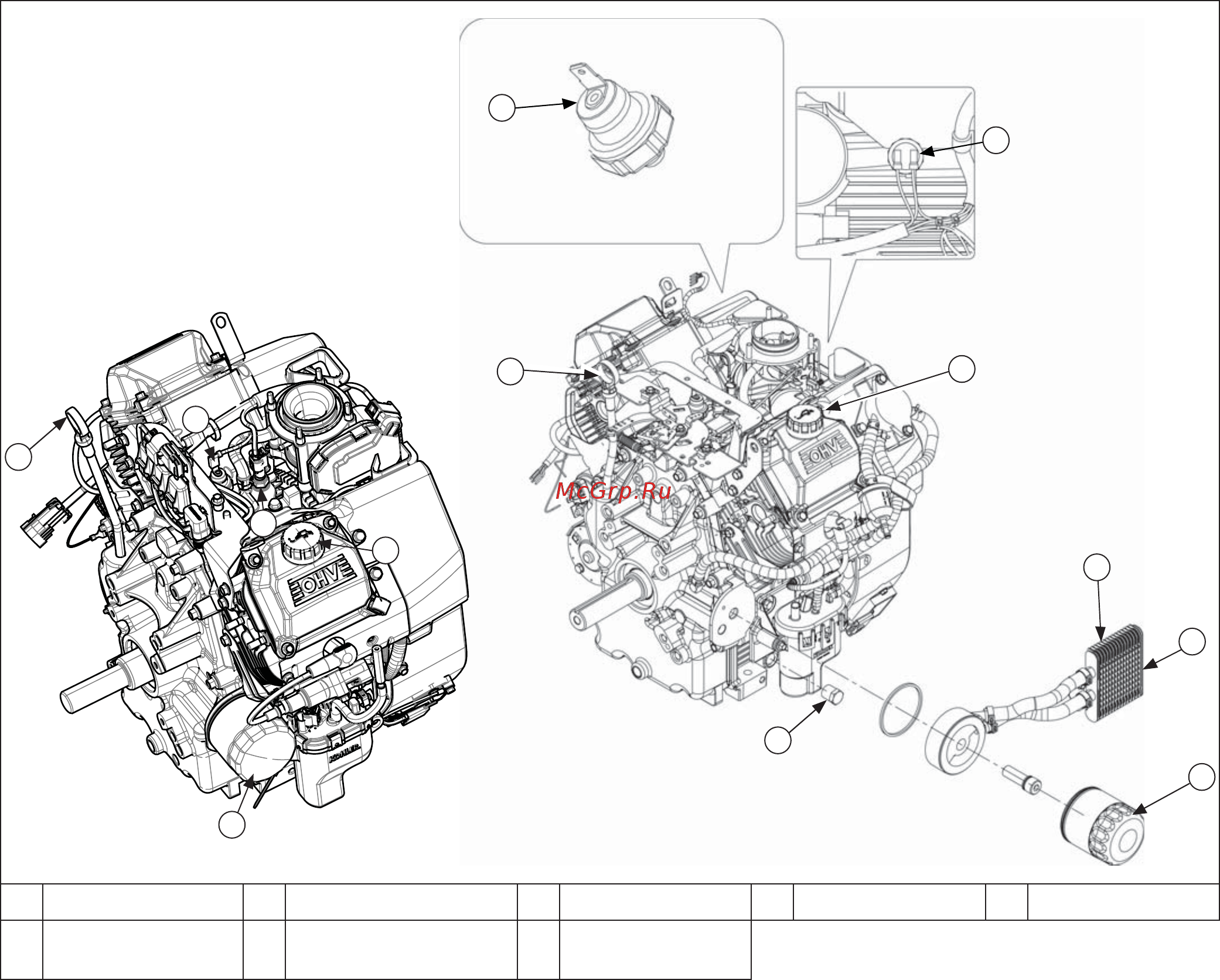

A Oil Filter B Back Side C Oil Cooler D Oil Drain Plug E Oil Fill Cap

F Oil Fill/Dipstick G

Engine Temperature

Sensor

H Oil Sentry

OIL RECOMMENDATIONS

Refer to Maintenance.

CHECK OIL LEVEL

NOTE: To prevent extensive engine wear or damage, never run engine with oil level below or above operating range

indicator on dipstick.

Ensure engine is cool. Clean oil ﬁ ll/dipstick areas of any debris.

1. Remove dipstick; wipe oil oﬀ .

a. Push-on cap: reinsert dipstick into tube; press completely down.

b. Threaded cap: reinsert dipstick into tube; rest cap on tube, do not thread cap onto tube.

2. Remove dipstick; check oil level. Level should be at top of indicator on dipstick.

3. If oil is low on indicator, add oil up to top of indicator mark.

4. Reinstall and secure dipstick.
