Kohler Command PRO EFI ECH749 [175/180] Reassembly
![Kohler Command PRO EFI ECH749 [175/180] Reassembly](/views2/1597403/page175/bgaf.png)

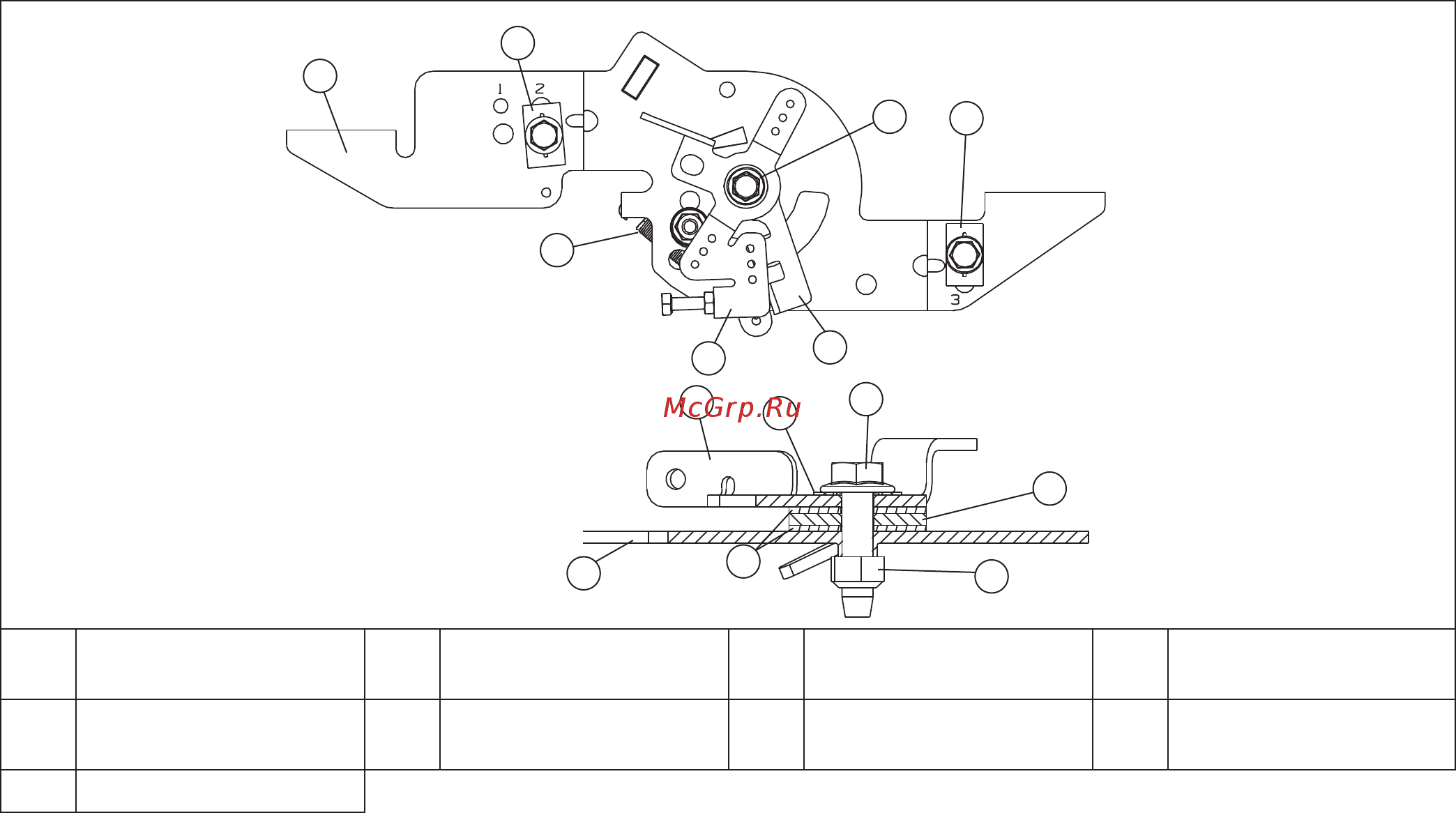

Install External Governor Control (ECH EFI) (if equipped)
D
A
B
C
B
I
F
F
D
E
C
A
G
H
A
Speed Control
Bracket
B Cable Clamp C Screw D
Throttle Actuator
Lever (bottom)
E Spring Washer F
Throttle Control Lever
(top)
G Flat Washer H Nut
I Return Spring
1. Install governor lever onto governor cross shaft.
2. Make sure throttle linkage, linkage spring, and black linkage bushing are connected to governor lever and to
throttle lever on throttle body.
Reassembly
17524 690 01 Rev. O KohlerEngines.com
