Specifi cations
8 24 690 01 Rev. OKohlerEngines.com

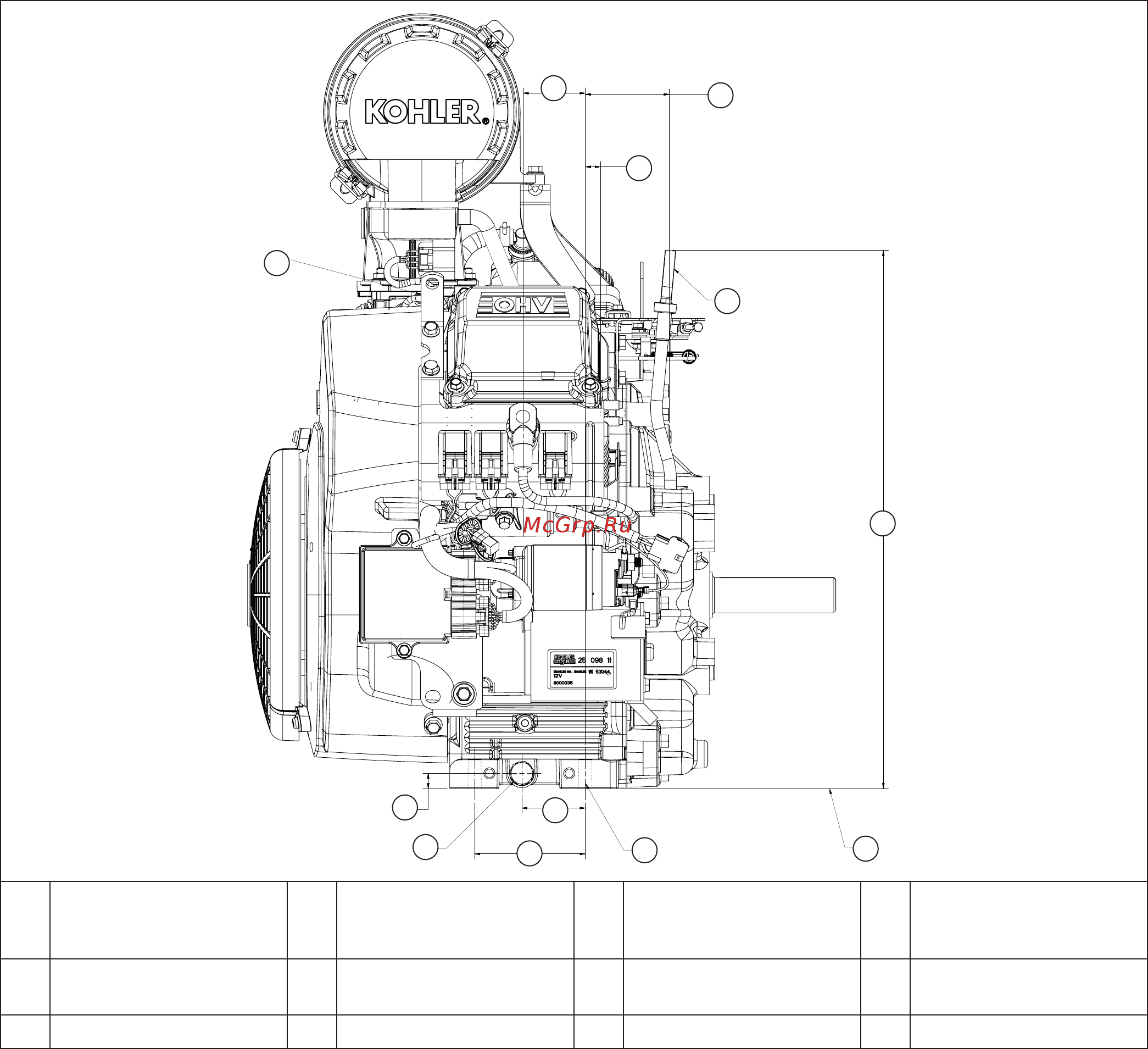

Engine Dimensions with Heavy-Duty Air Cleaner-Starter Side
A
B
C
D
E
G
F
H
I
J
K
L
A
50.0 mm (1.969 in.)
Center Line Spark
Plug
B
12.0 mm (0.472 in.)
Exhaust Port #1
C
67.50 mm (2.657 in.)
Muffl er Mounting
Bosses
D Dipstick
E
432.58 mm
(17.031 in.)
F
Engine Mounting
Surface
G
Center Line Mounting
Hole "A"
H 89.0 mm (3.504 in.)
I 51.0 mm (2.008 in.) J Oil Drain Plug 3/8 in. K 12.28 mm (0.483 in.) L Lift Strap
