EWAD~TZ X-B- (GOLD SERIES)



Inordertooperatethefollowingoptionsmustbeincludedaccordingtothespecificoperatingarea:



Ref. 1: standard unit(nooptionsarerequiredtooperateinthisarea)

Ref. 2: standard unit opt. 08 (Brine) (chillermaynotunloadtominimumload)

Ref. 3: contact factory

Ref. 4: standard unit opt. 142 (HIGH AMBIENT KIT)



NOTE:

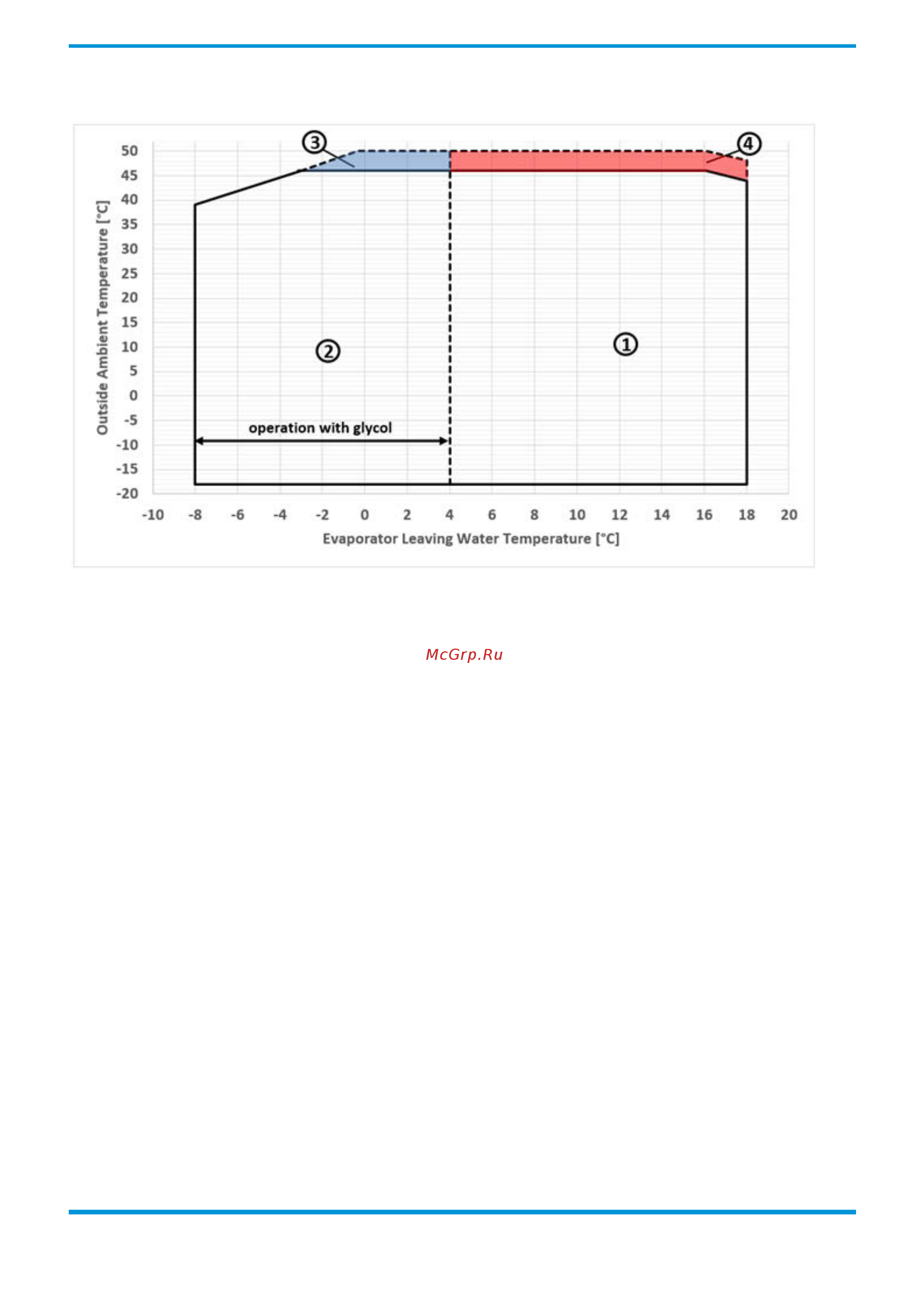

-Theabovegraphreferstotheunitoperatingatfullload.Unitmaybeabletooperateoutsidetheabove

envelopewithcompressorsunloading.Pleasecontactfactoryforfurtherdetails.

-For operationwithEWLTbelow4°C,the unitmustoperatewithglycolmixture.Theglycolpercentage

mustbeprovideaccordingtotheminimumELWTneeded.

- The above graphic represents a guideline about the operating limits of the range. Please refer to the

latestChillerSelectionSoftware(CSS)forrealoperatinglimitsworkingconditionsforeachsize.

-Opt.142providesECmotorsfans.Theperformanceswilldifferfromthestandards.

-Inarea2and3chillermaynotunlloadtotheminimumload


