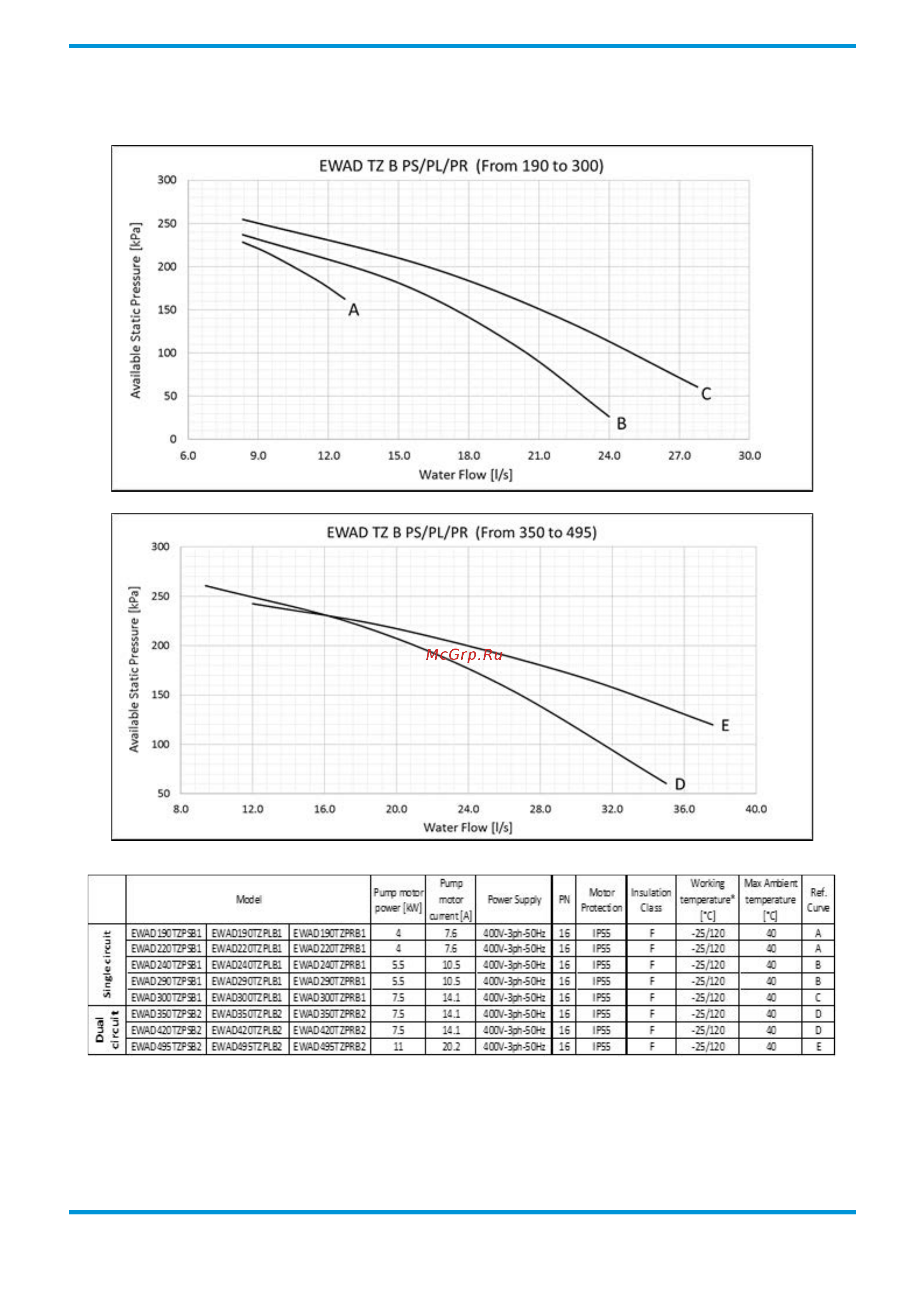

EWAD TZ B PS/PL/PR (PLATINUM series) - Available static pressure



- single pump high lift



Technical data

Note:tocalculatethetotalelectricaldataofthebaseunitselectedwithhydronickit,theelectricaldataofthepumpmustbeaddedtothe

electricaldataofthebaseunit.Electricaldataaresubjecttomodificationwithoutnotice.Pleaserefertounitnameplate.





77/104
