Daikin EWAD495TZ-SSB2 [80/104] Options technical data

Daikin EWAD380TZ-SLB2 [80/104] Options technical data

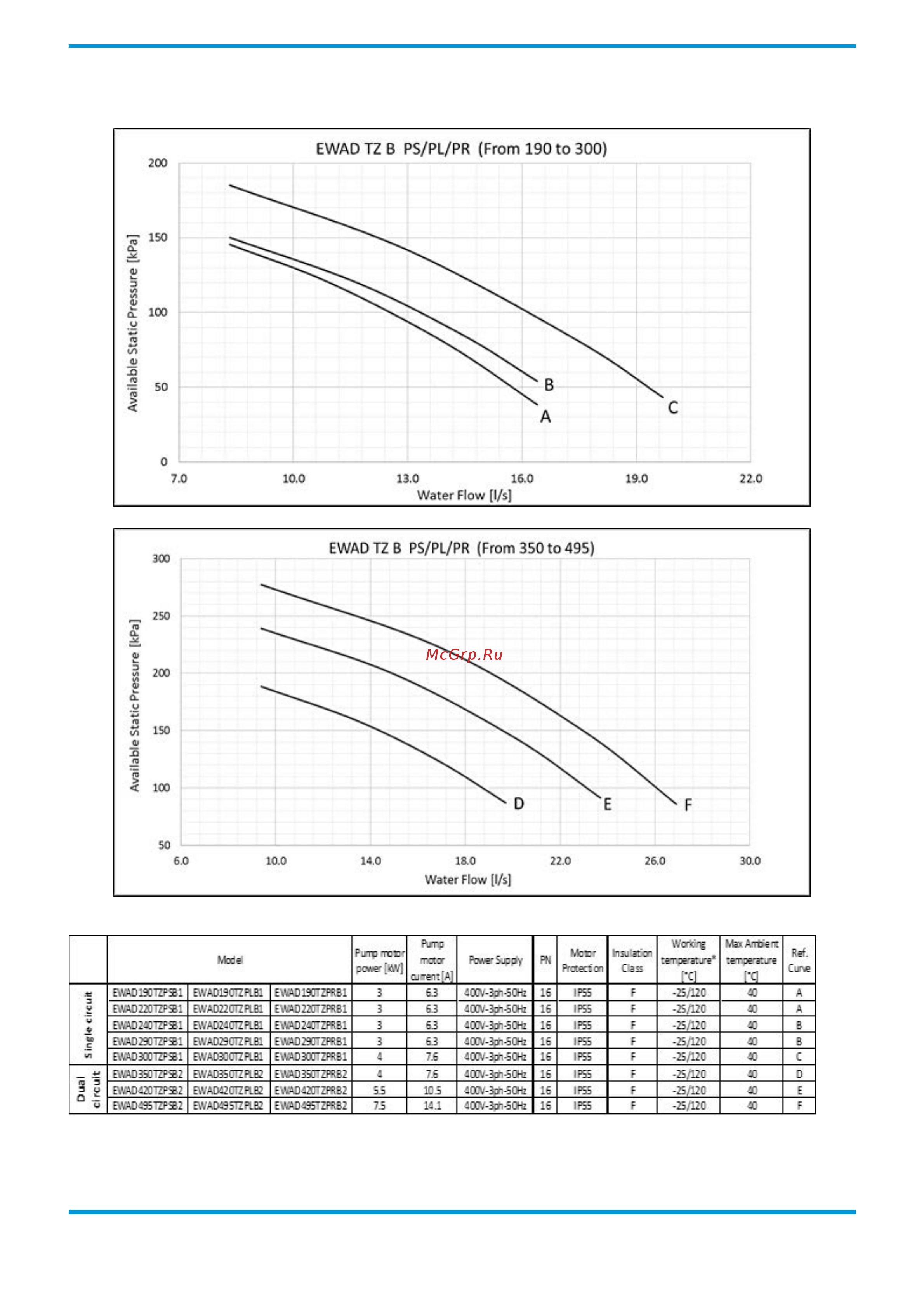

EWAD TZ B PS/PL/PR (PLATINUM series) – Available static pressure - double pump low lift



Technical data

Note: to calculatethetotalelectricaldataof thebaseunit selectedwith hydronic kit, the electricaldataof thepump must beaddedto the

electricaldataofthebaseunit.Electricaldataaresubjecttomodificationwithoutnotice.Pleaserefertounitnameplate.



80/104
