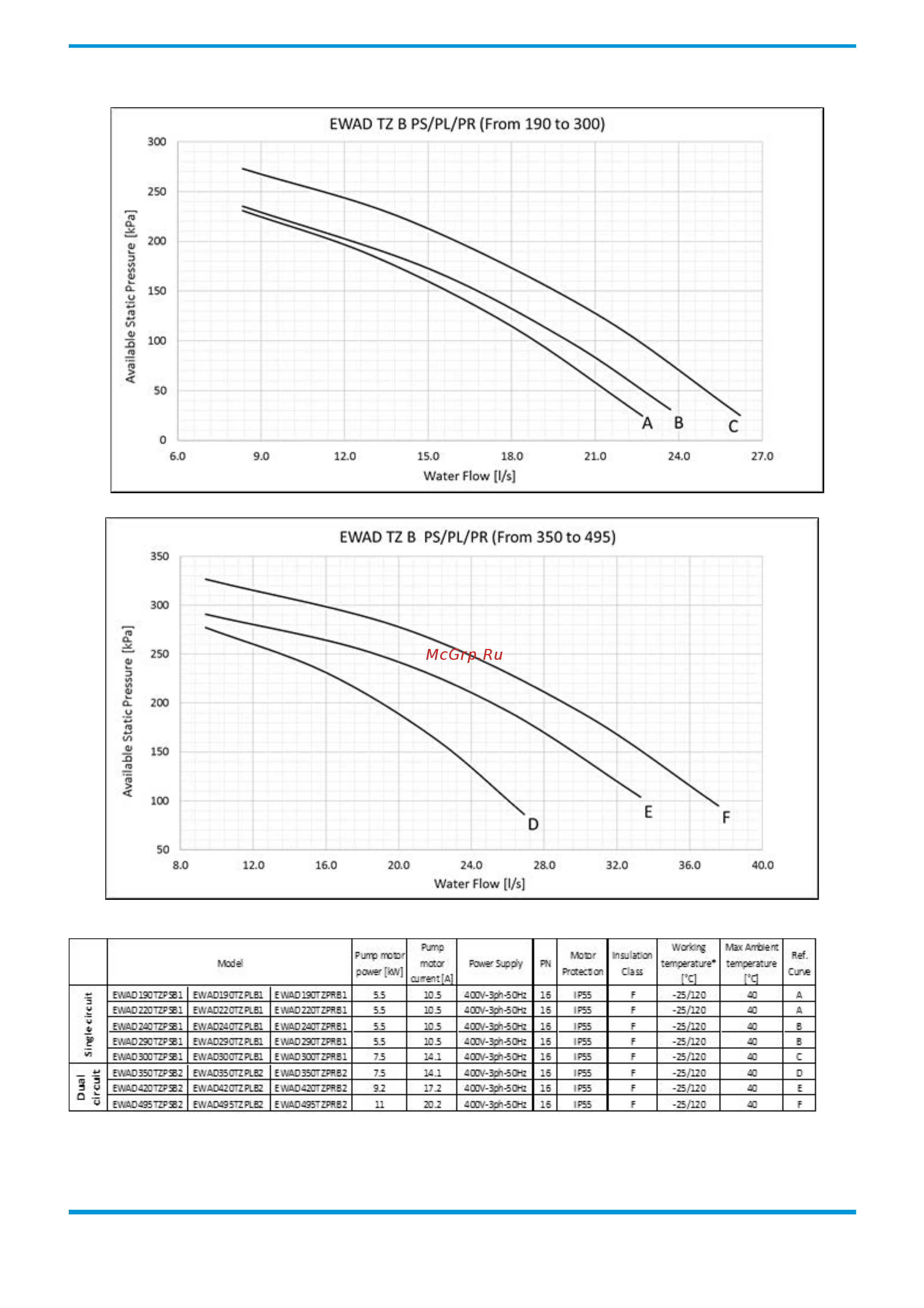

EWAD TZ B PS/PL/PR (PLATINUM series) – Available static pressure



- double pump low lift







Technical data

Note:tocalculatethetotalelectricaldataofthebaseunitselectedwithhydronickit,theelectricaldataofthepumpmustbeaddedtothe

electricaldataofthebaseunit.Electricaldataaresubjecttomodificationwithoutnotice.Pleaserefertounitnameplate.




