- 103 - BIOS Setup

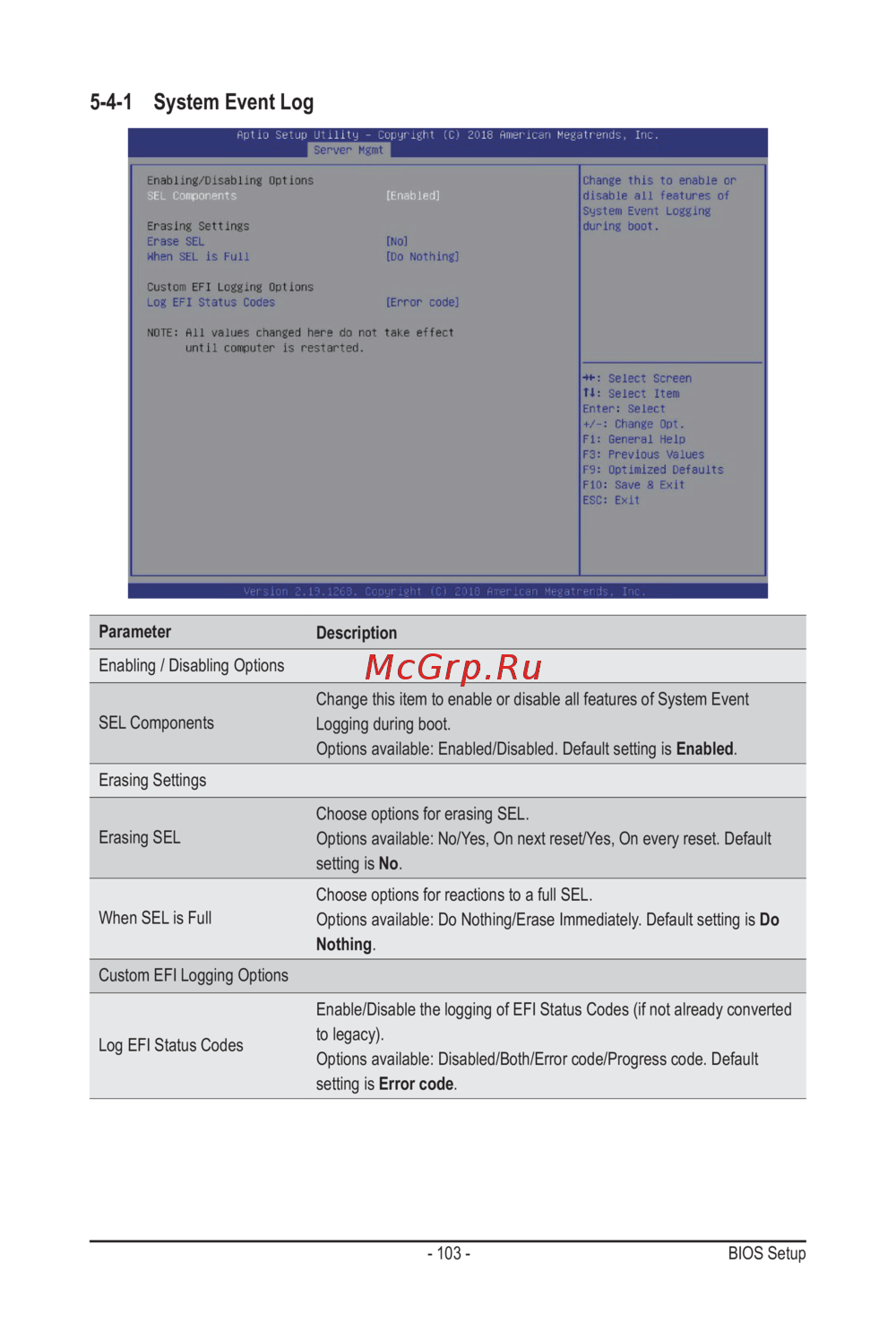

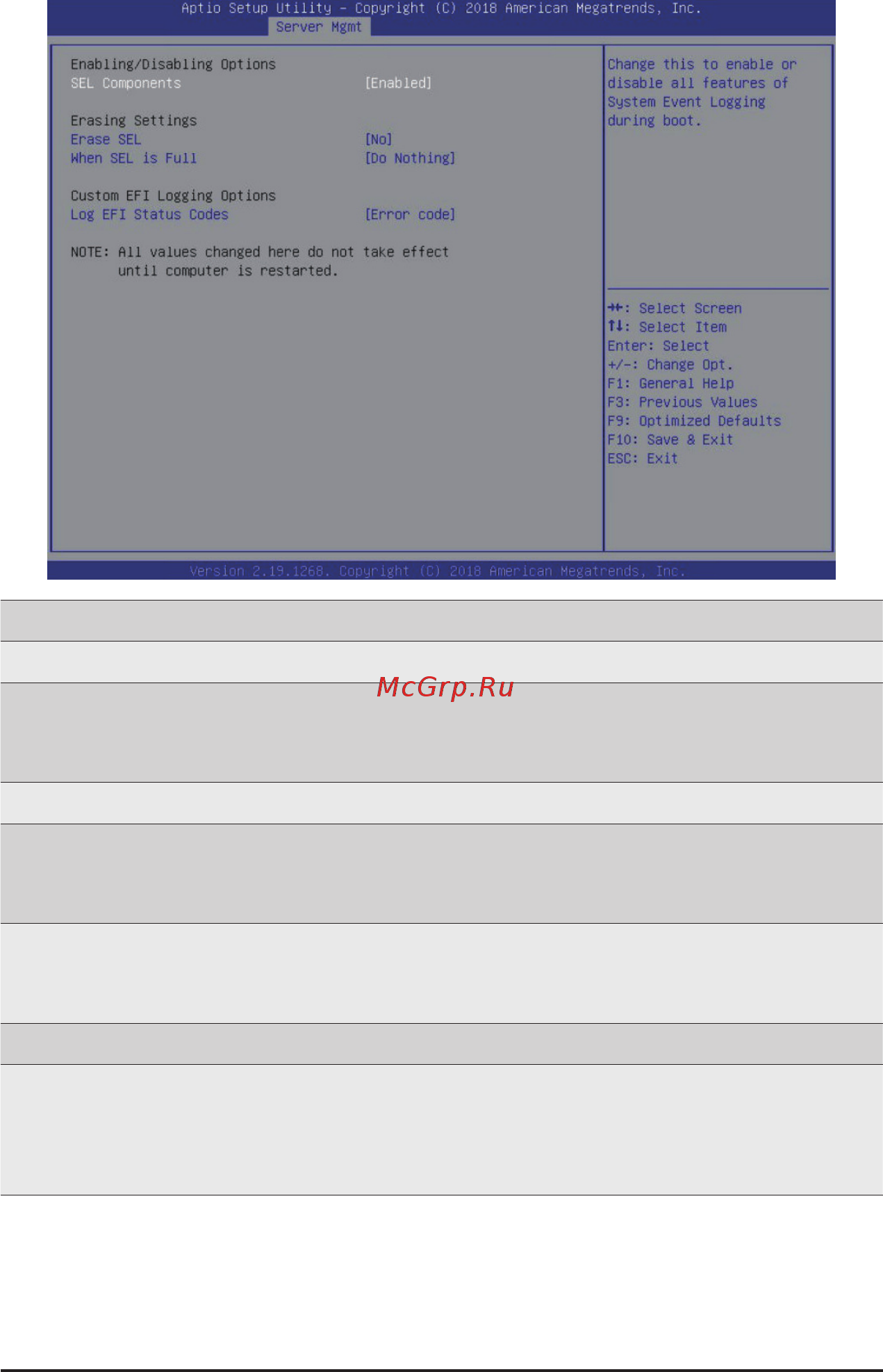

5-4-1 System Event Log

Parameter

Description

Enabling / Disabling Options

SEL Components

Change this item to enable or disable all features of System Event

Logging during boot.

Options available: Enabled/Disabled. Default setting is Enabled.

Erasing Settings

Erasing SEL

Choose options for erasing SEL.

Options available: No/Yes, On next reset/Yes, On every reset. Default

setting is No.

When SEL is Full

Choose options for reactions to a full SEL.

Options available: Do Nothing/Erase Immediately. Default setting is Do

Nothing.

Custom EFI Logging Options

Log EFI Status Codes

Enable/Disable the logging of EFI Status Codes (if not already converted

to legacy).

Options available: Disabled/Both/Error code/Progress code. Default

setting is Error code.
