Gigabyte G481-HA0 (rev. 200) [41/124] 11 removing the top front cover

- 41 - System Hardware Installation

3-11 Removing the Top Front Cover

Follow these instructions to remove the top front cover:

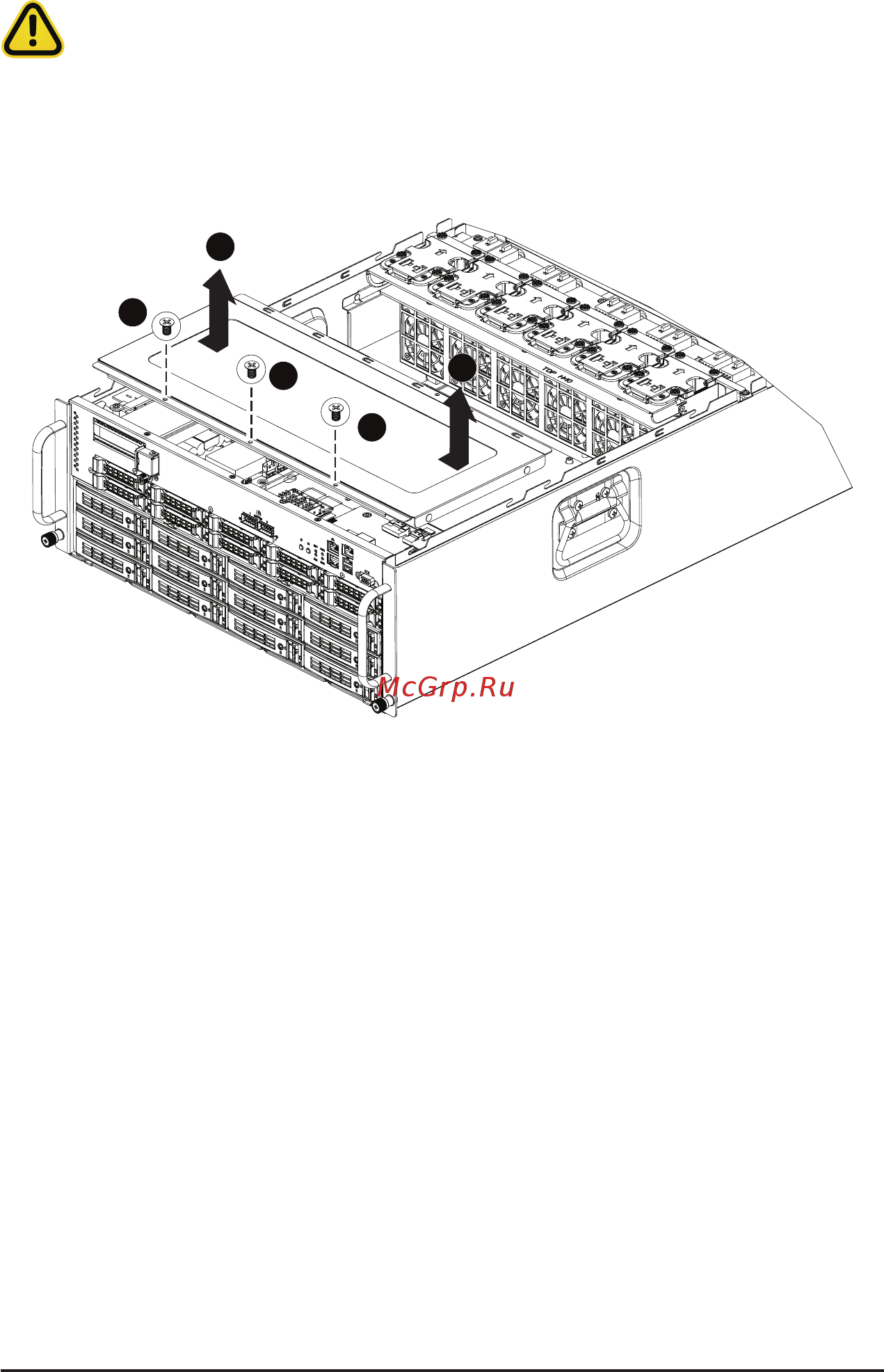

1. Remove the three screws securing the cover.

2. Slide the cover towards the rear and remove the cover in the direction indicated.

Skip this section if you are not going to replace the PCIe RAID card.
