- 15 - Hardware Installation

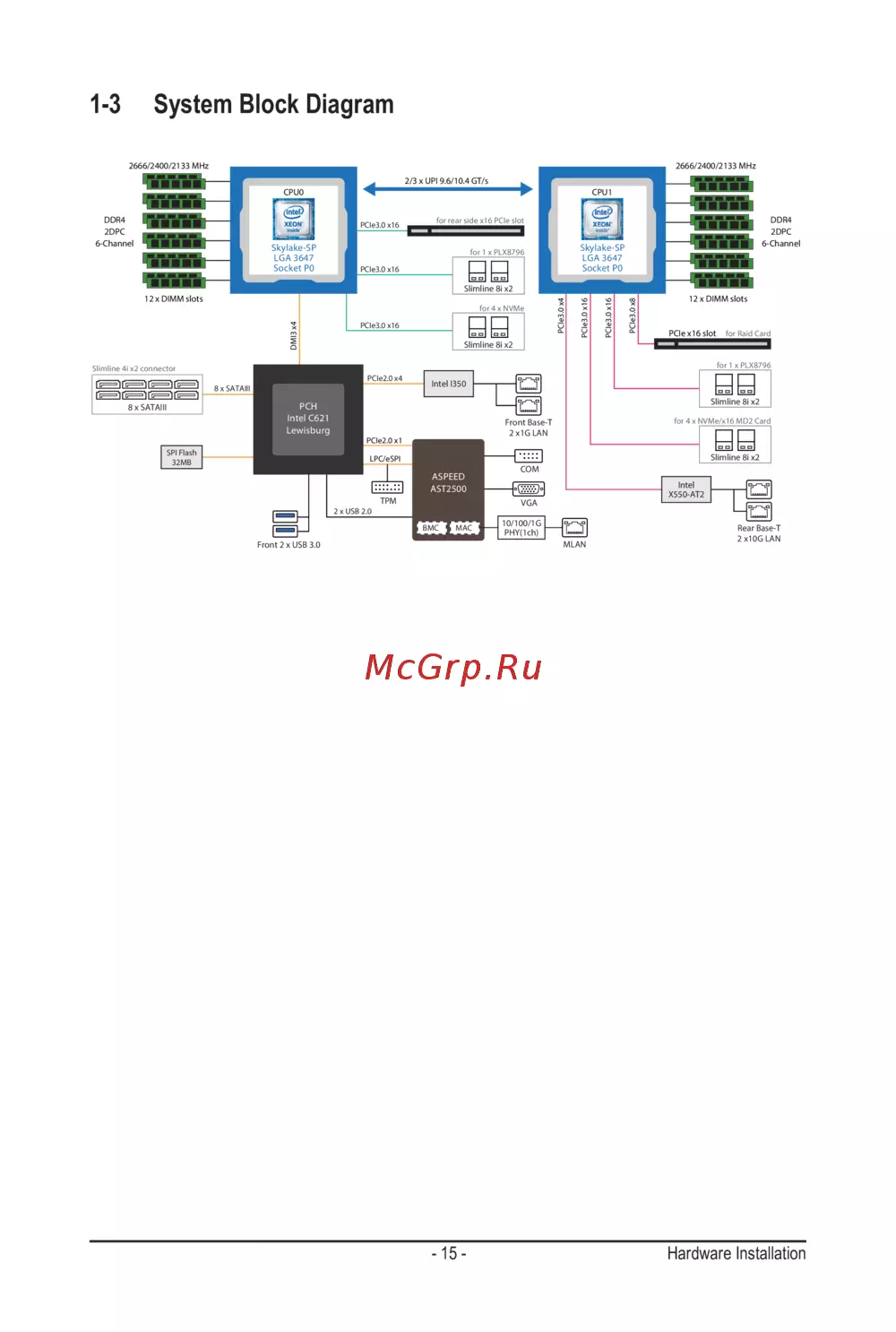

1-3 System Block Diagram
PCIe3.0 x16
PCIe3.0 x8
PCIe3.0 x4
2666/2400/2133 MHz
2/3 x UPI 9.6/10.4 GT/s
PCIe3.0 x16
2666/2400/2133 MHz
2A~2D
PCIe2.0 x4
PCIe3.0 x16
PCIe3.0 x16
for rear side x16 PCIe slot
for 1 x PLX8796
Front Base-T
2 x1G LAN
G481-HA0 Block Diagram
Intel I350
PCIe2.0 x1
LPC/eSPI
COM
ASPEED
AST2500
MLAN
10/100/1G
PHY(1ch)
MACBMC
8 x SATAIII
8 x SATAIII
DMI3 x4
Front 2 x USB 3.0
2 x USB 2.0
SPI Flash
32MB
PCH
Intel C621
Lewisburg
VGA
Skylake-SP
LGA 3647
Socket P0
CPU0
Skylake-SP
LGA 3647
Socket P0
CPU1
DDR4
2DPC
6-Channel
DDR4
2DPC
6-Channel
12 x DIMM slots 12 x DIMM slots
Rear Base-T
2 x10G LAN
Intel
X550-AT2
TPM
Slimline 8i x2
PCIe3.0 x16
for 4 x NVMe
Slimline 4i x2 connector
Slimline 8i x2
PCIe x16 slot
for Raid Card
for 1 x PLX8796
Slimline 8i x2
for 4 x NVMe/x16 MD2 Card
Slimline 8i x2
