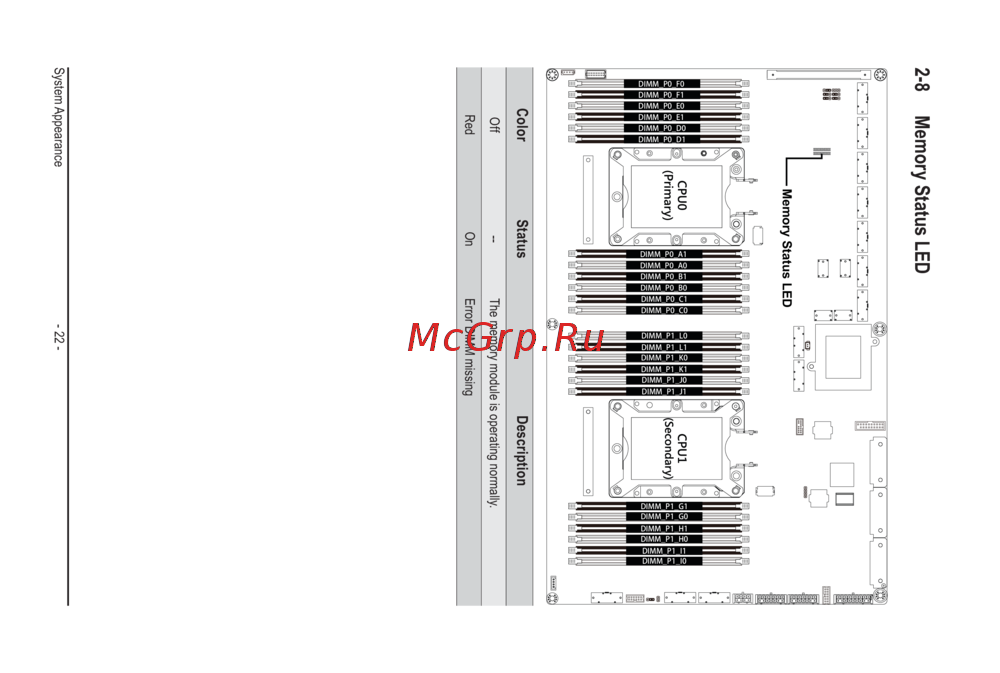

Gigabyte G481-HA0 (rev. 200) [22/124] 8 memory status led

System Appearance - 22 -

2-8 Memory Status LED

DIMM_P0_D0

DIMM_P0_D1

DIMM_P0_E0

DIMM_P0_E1

DIMM_P0_F0

DIMM_P0_F1

DIMM_P0_C1

DIMM_P0_C0

DIMM_P1_L0

DIMM_P1_L1

DIMM_P1_K0

DIMM_P1_K1

DIMM_P1_J0

DIMM_P1_J1

DIMM_P1_G1

DIMM_P1_G0

DIMM_P1_H1

DIMM_P1_H0

DIMM_P1_I1

DIMM_P1_I0

DIMM_P0_B1

DIMM_P0_B0

DIMM_P0_A1

DIMM_P0_A0

Memory Status LED

Color Status Description

Off -- The memory module is operating normally.

Red On Error DIMM missing
