System Appearance - 20 -

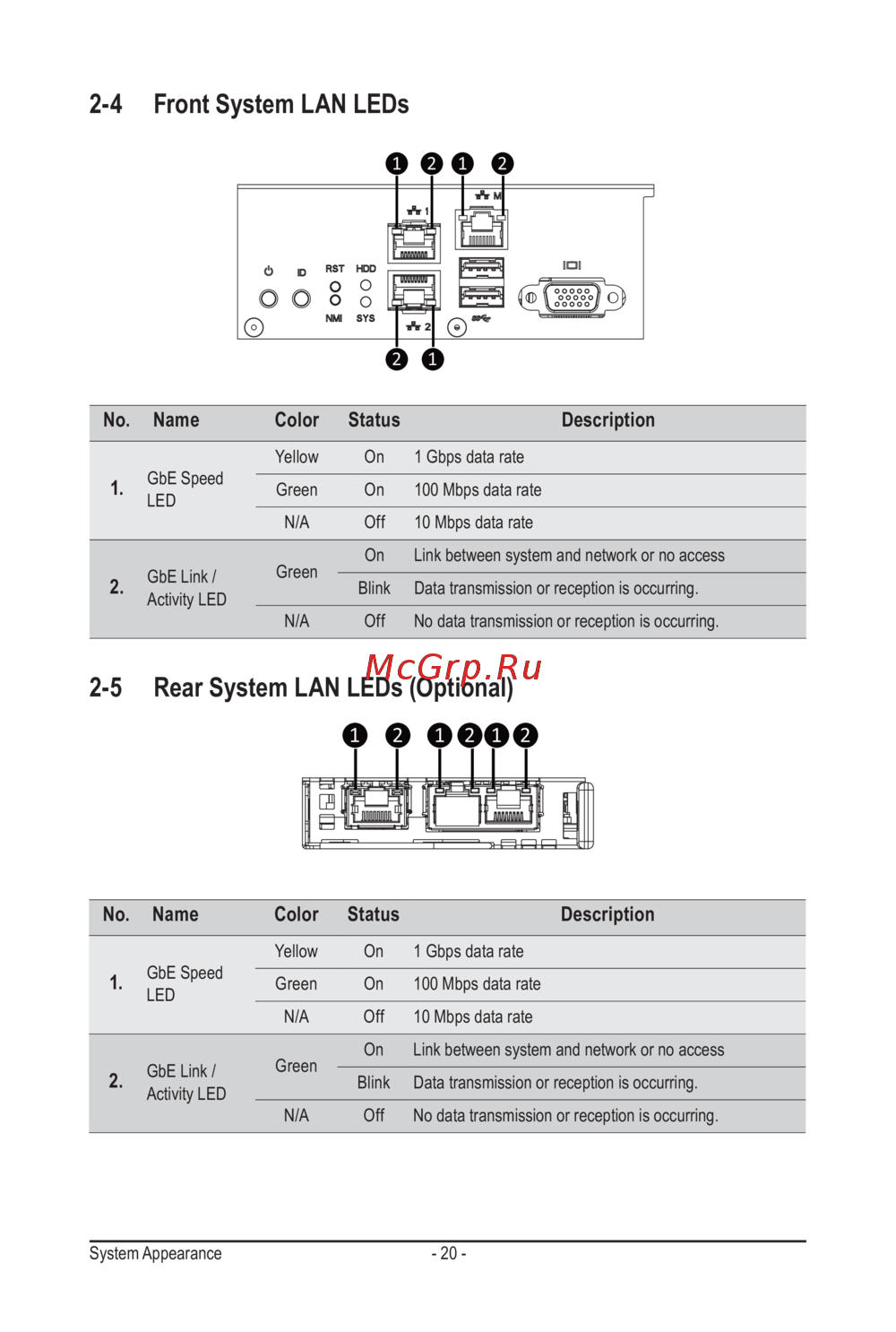

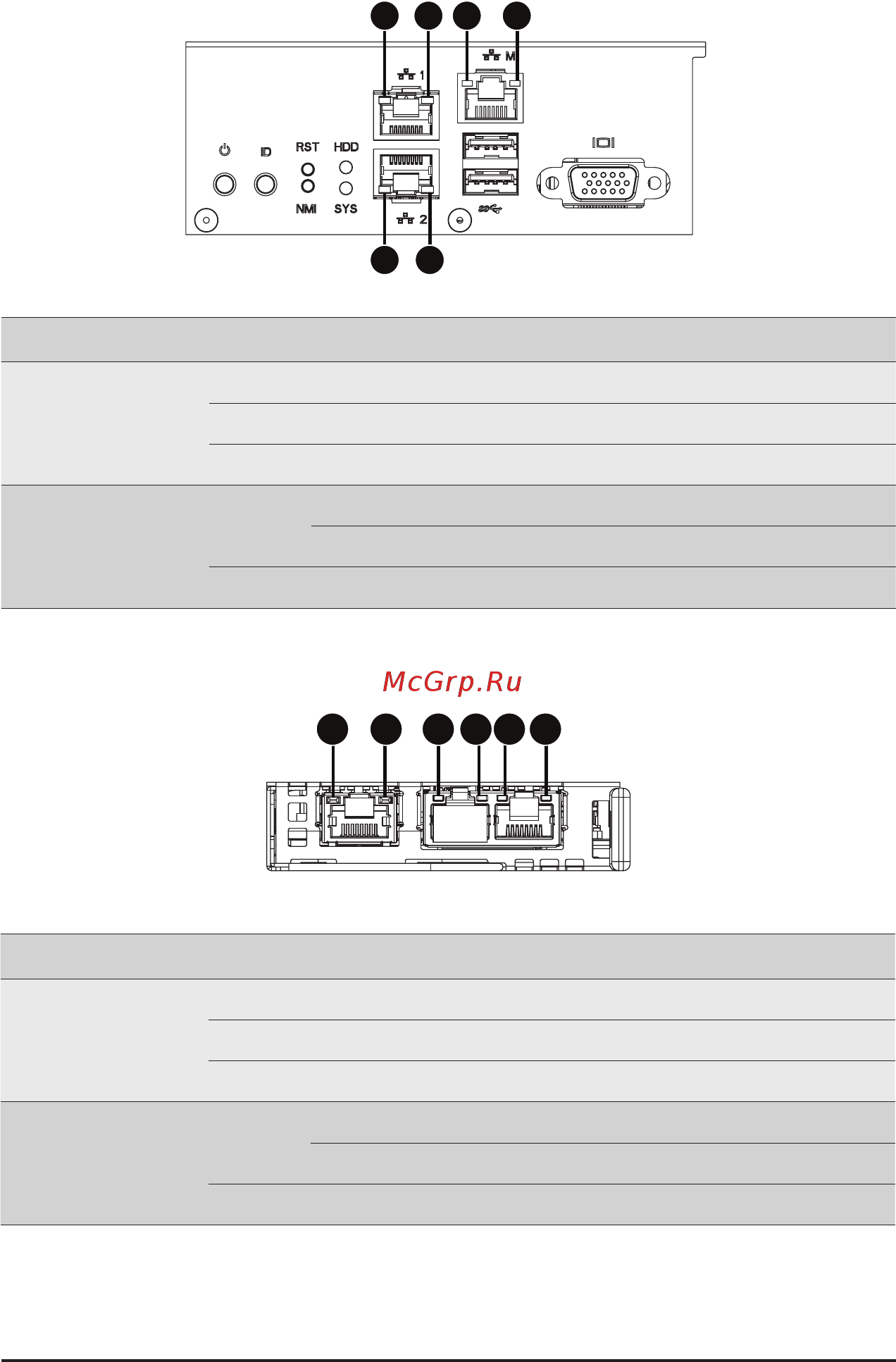

2-4 Front System LAN LEDs
1 1
1
2 2
2
No. Name Color Status Description
1.
GbE Speed
LED
Yellow On 1 Gbps data rate
Green On 100 Mbps data rate
N/A Off 10 Mbps data rate
2.
GbE Link /
Activity LED
Green
On Link between system and network or no access
Blink Data transmission or reception is occurring.
N/A Off No data transmission or reception is occurring.
2-5 Rear System LAN LEDs (Optional)
1 12 2 1 2
No. Name Color Status Description
1.
GbE Speed
LED
Yellow On 1 Gbps data rate
Green On 100 Mbps data rate
N/A Off 10 Mbps data rate
2.
GbE Link /
Activity LED
Green
On Link between system and network or no access
Blink Data transmission or reception is occurring.
N/A Off No data transmission or reception is occurring.
