- 105 - BIOS Setup

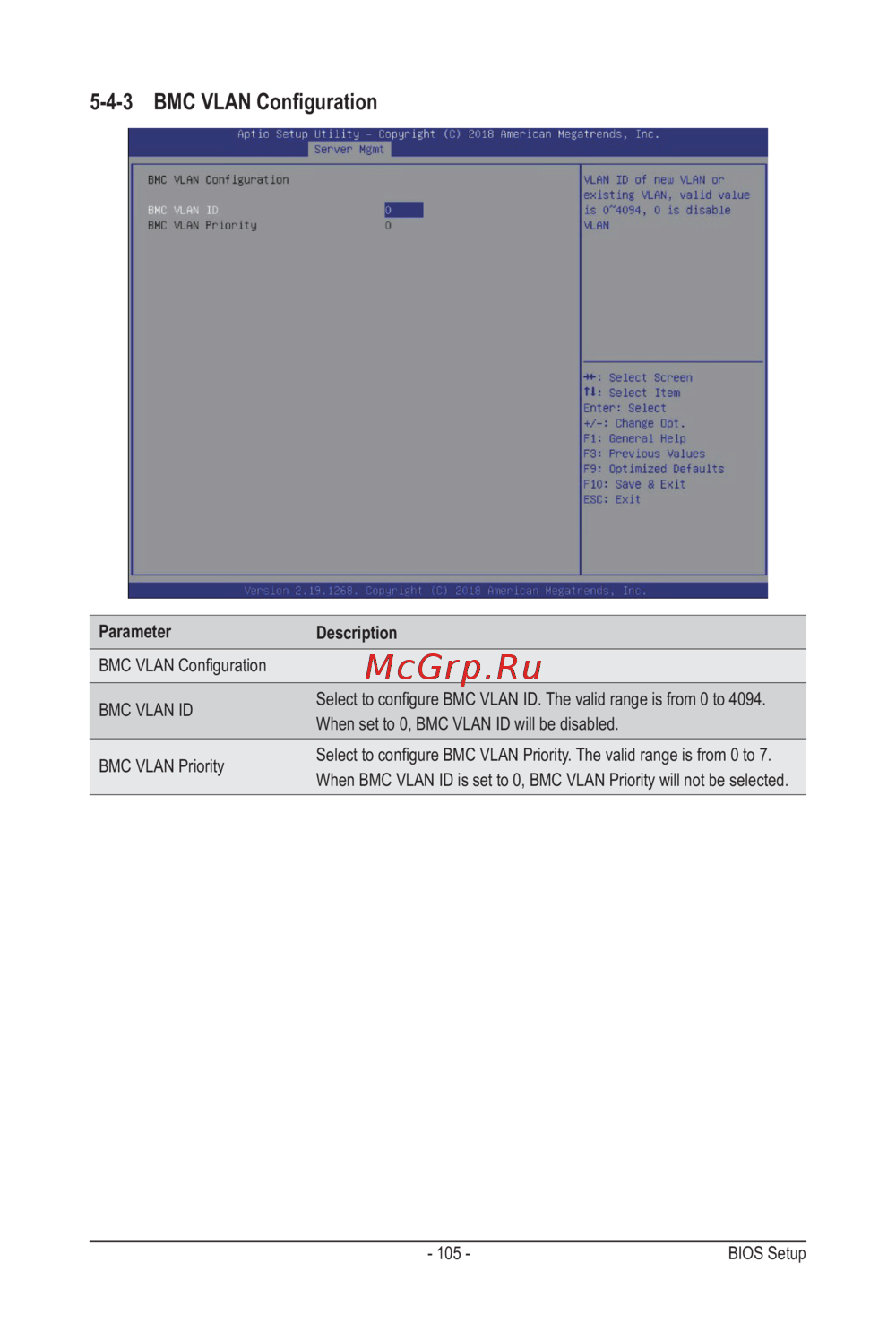

5-4-3 BMC VLAN Conguration

Parameter

Description

BMC VLAN Conguration

BMC VLAN ID

Select to congure BMC VLAN ID. The valid range is from 0 to 4094.

When set to 0, BMC VLAN ID will be disabled.

BMC VLAN Priority

Select to congure BMC VLAN Priority. The valid range is from 0 to 7.

When BMC VLAN ID is set to 0, BMC VLAN Priority will not be selected.
