ASRock TR-KNL [14/26] Hard drive
![ASRock TR-KNL [14/26] Hard drive](/views2/1694137/page14/bge.png)
10 11
English
3.1 Hard Drive
Installing a Hard Disk Drive into Hard Drive Tray
Five hard drive trays are located inside the case. Each of the trays can support either
a 2.5" or 3.5" drive.

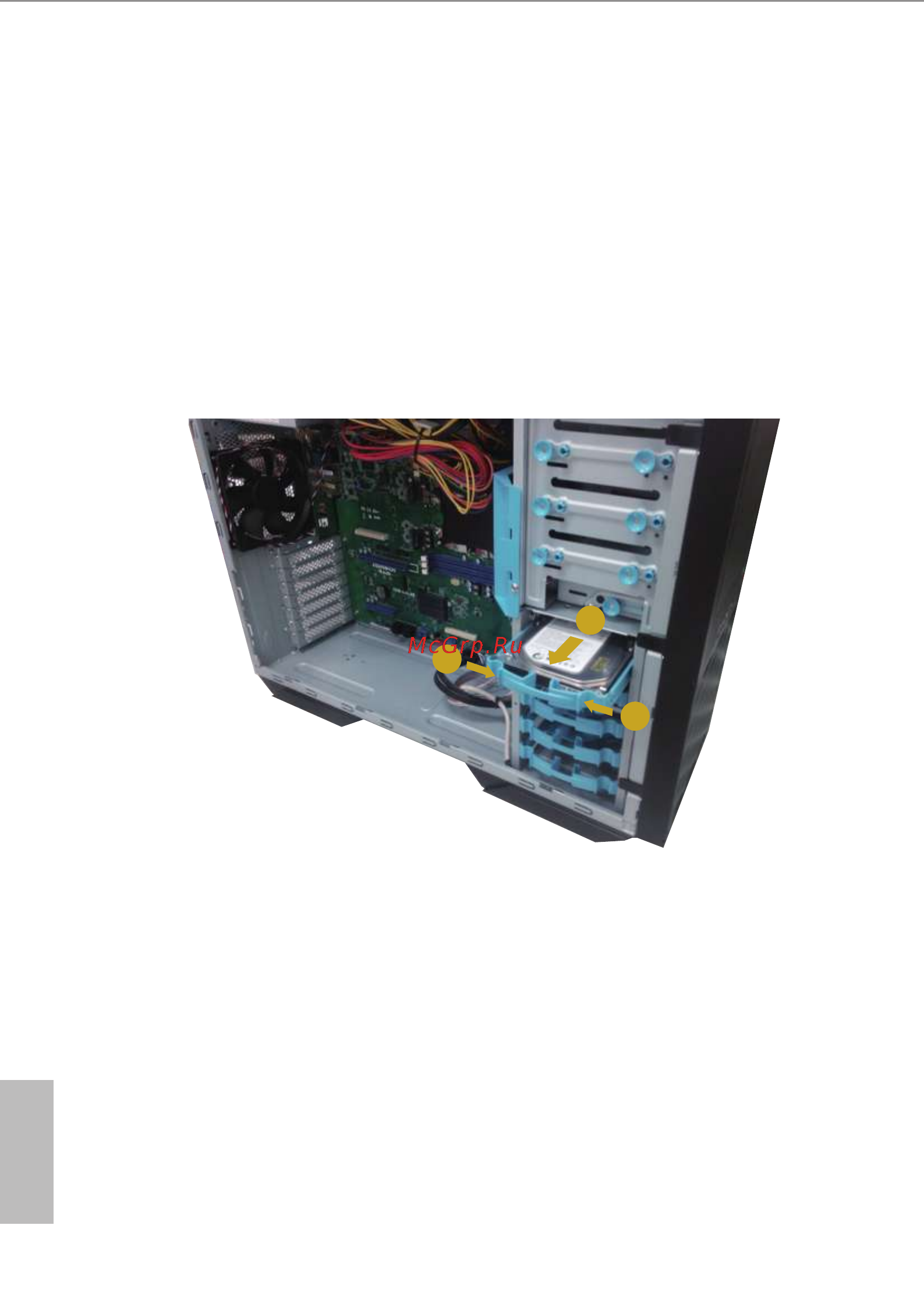

Removing Hard Drive Trays from the Chassis
1. Press both tabs towards the center to release the drive tray.
2. Pull and remove the drive tray from the drive bay.
1
1
2
