3.4 Add-on Card
1. You can install an add-on card to the chassis if the server board is supported.
2. Before installing the add-on card, power o the server and unplug the power cord.

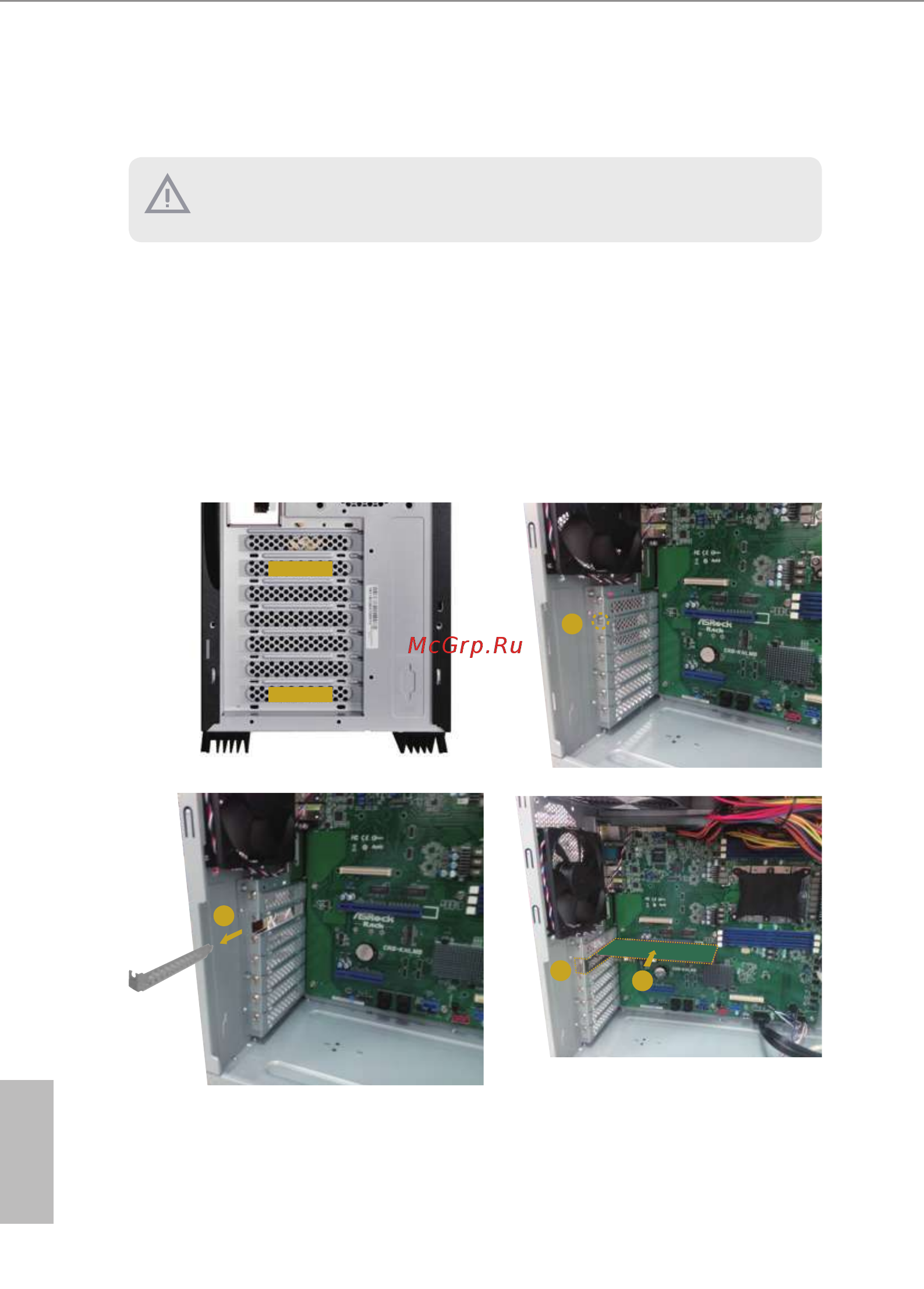

Removing the Blanking Plate from the Chassis
1. Remove the screw securing the blanking plate to the chassis. Keep the screw for later
use.
2. Slide the blanking plate out sideways.
*e TR-KNL system only supports Slot 2 and Slot 7 for add-on card installation.
3. Align the plate of the add-on card with the openings in the back of the chassis.
4. Attach the add-on card to the chassis with the screw that was previously set aside.
2
1
3
4
Slot 2
Slot 7
