TR-KNL
14 15
English

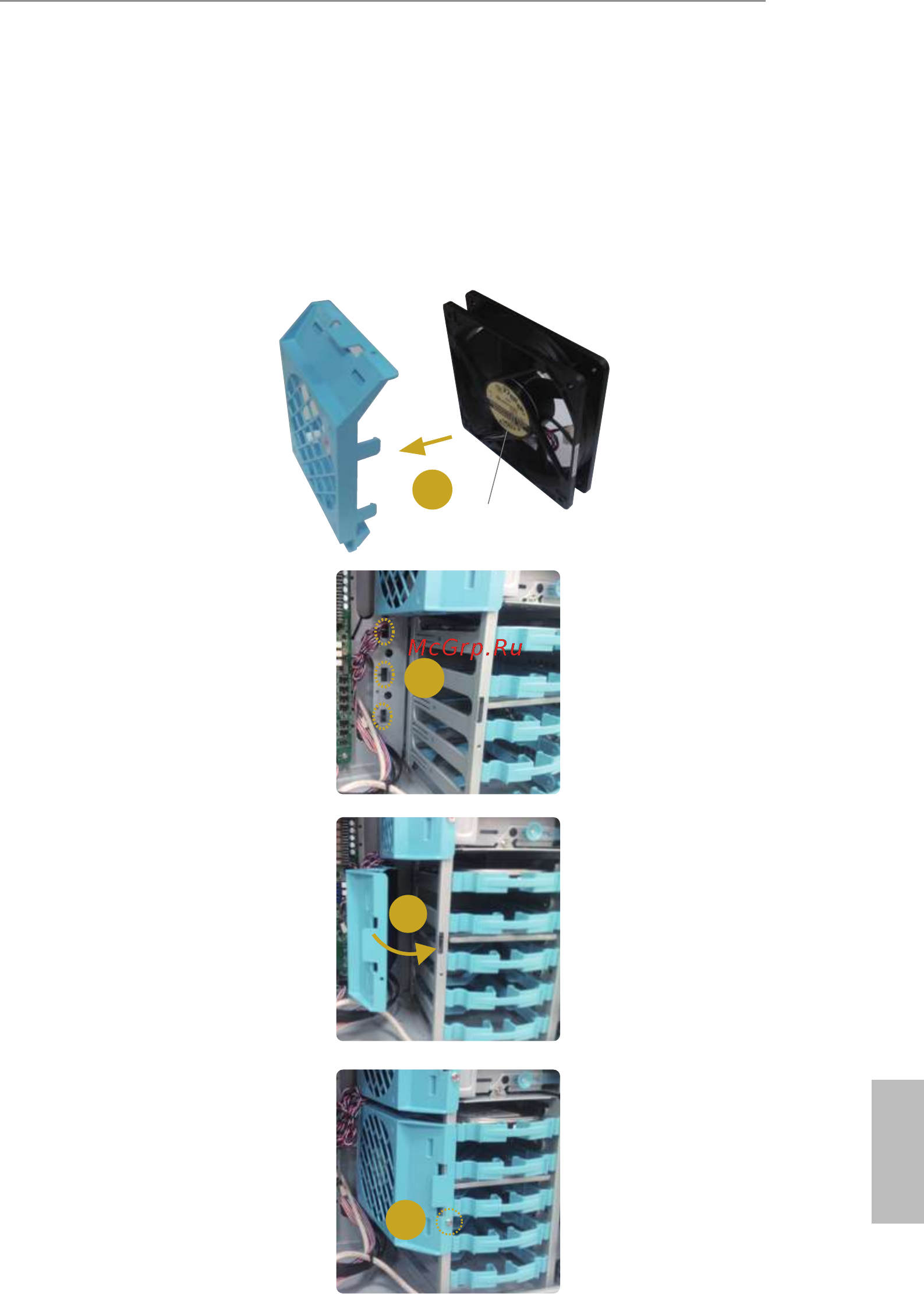

Installing a new fan
1. Attach the fan to the fan holder.
2. Align the mounting holes on chassis with the tabs on the fan assembly.
3. Make sure the tabs are rmly in place and gently hold the fan assembly close to the
chassis.
4. Seure the fan assembly to the chassis with the screw.
5. Connect the end of the fan cable to the fan connector.
4
3
2
1
Label upside down
