TR-KNL
4 5
English

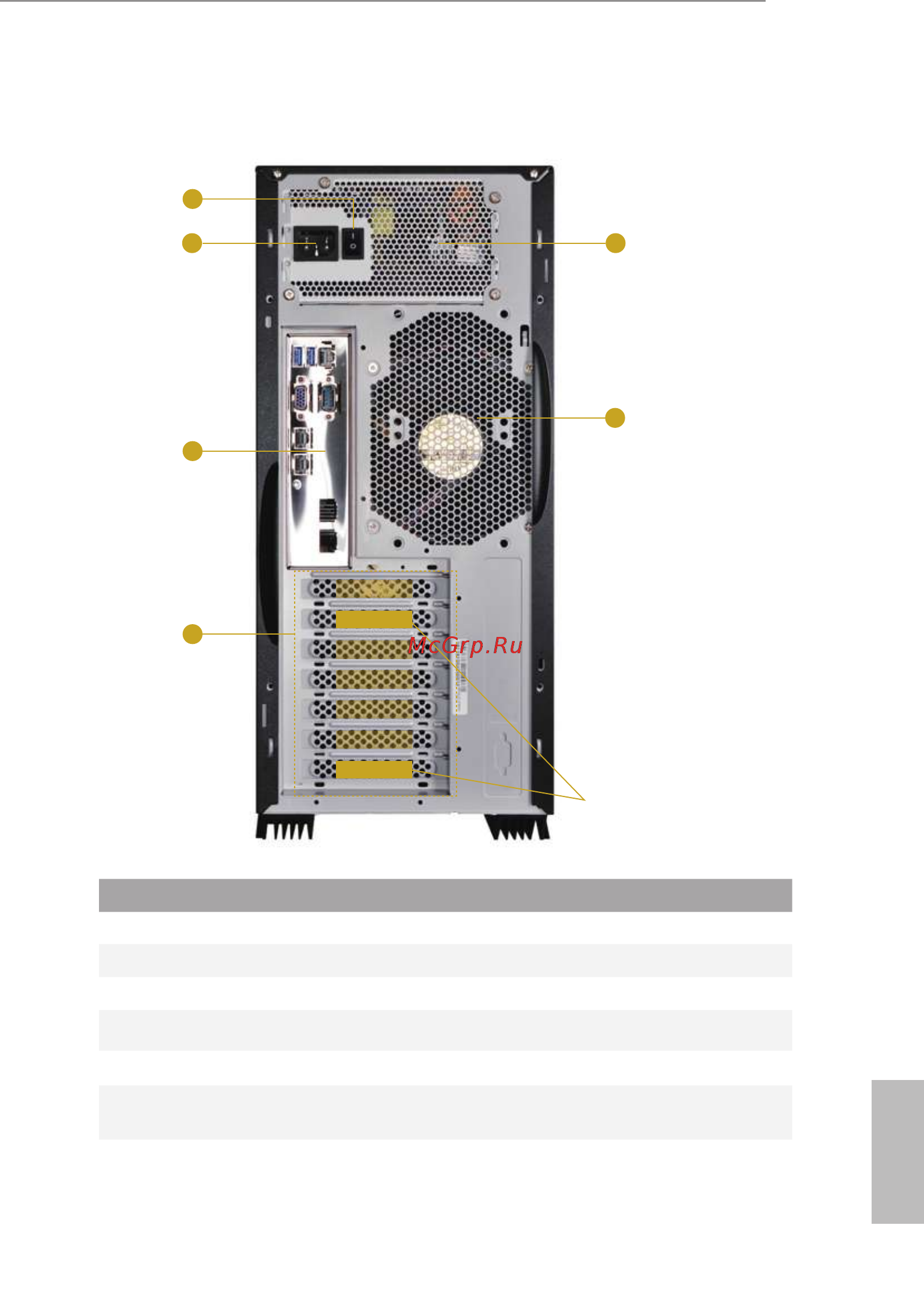

2.2 Rear View
1
2
5
3
6
4
Slot 1
Slot 2
Slot 3
Slot 4
Slot 5
Slot 6
Slot 7
For TR-KNL system
No. Item
1
PSU power button
2
AC input power connector
3
Power supply unit
4 I/O Shield (depends on the speci cation of the server board)
5
System fan
6
7 x Add-on card slots*
* e TR-KNL system only supports Slot 2 and Slot 7 for add-on card installation.
