12 13
English

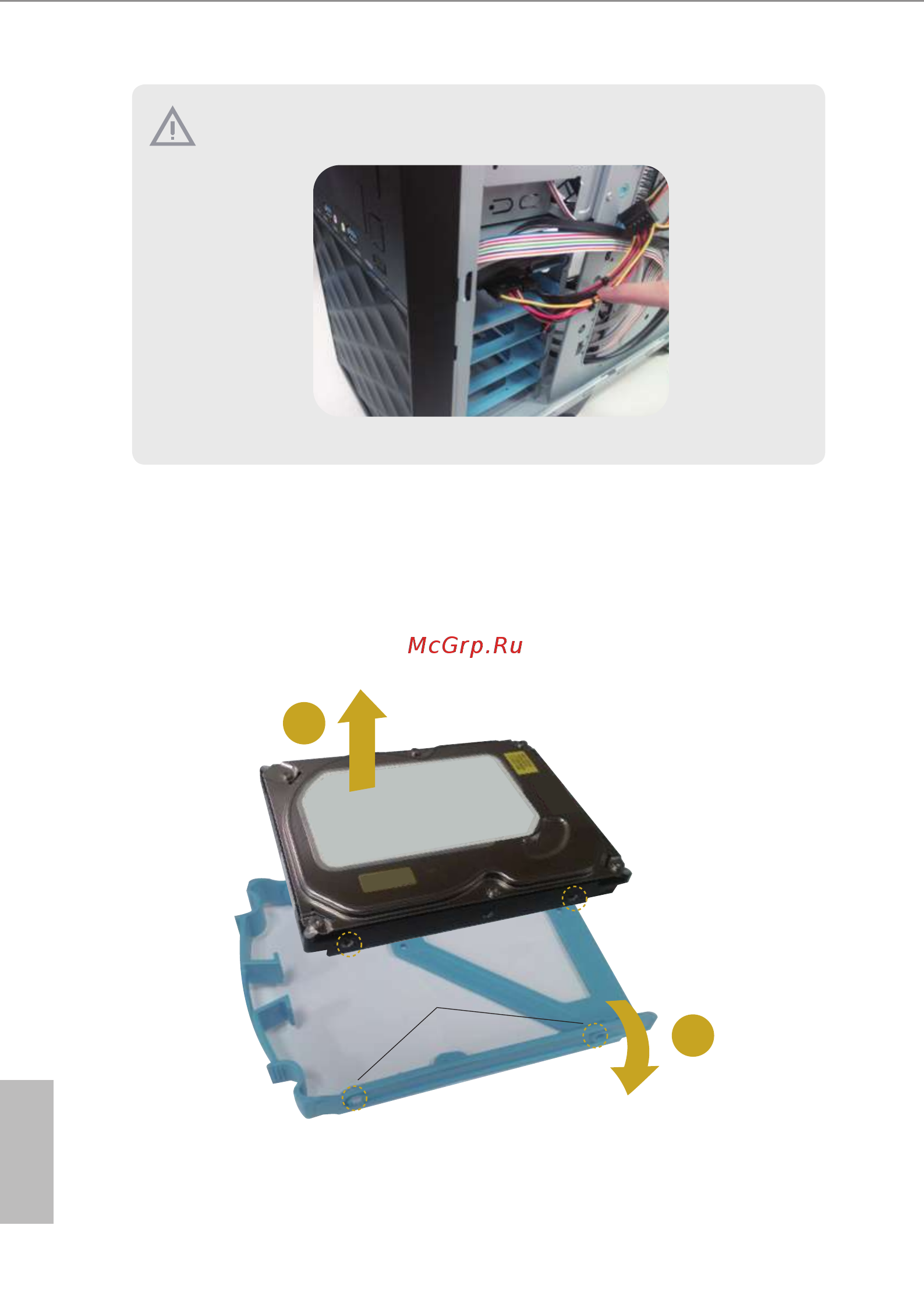

Removing a 3.5” Hard Drive from the Drive Trays
Remove the drive tray from the disk drive that you pulled out of the system if you are
replacing a disk drive.
1. Bend the tray slightly, or pull the pins out a little.
2. Gently pull out on one side of the drive tray and pull the drive out of the drive tray.
Stop Tabs
1
2
Remove the right side panel of the case to attach the SATA and power cables to the hard
drive and route the cables.
