ASRock TR-KNL [26/26] Installing the cpu fan and heatsink
![ASRock TR-KNL [26/26] Installing the cpu fan and heatsink](/views2/1694137/page26/bg1a.png)
22 23
English

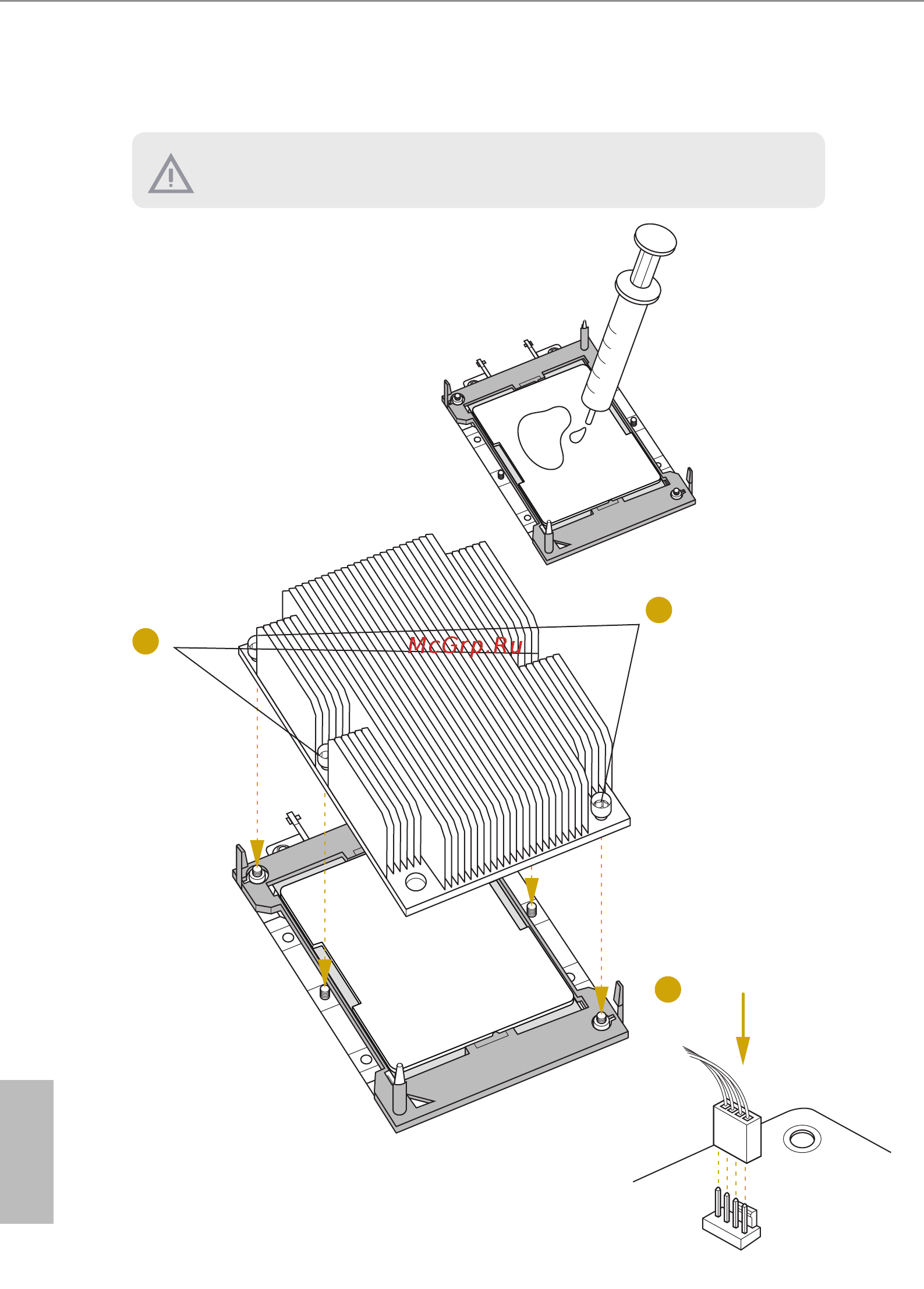

Installing the CPU Fan and Heatsink
1. Before you installed the heatsink, you need to spray thermal interface material between the
CPU and the heatsink to improve heat dissipation.
2. Illustration in this documentation are examples only. Heatsink or fan cooler type may dier.
2
CPU_
FAN
1-1
1-2
Tighten the two
Middle Nuts to
3 IN.LB.
Two turns at a time.
Tighten the two
Corner Plunger
to 5 IN.LB.
Two turns at a time.
