ASRock TR-KNL [18/26] System fan
![ASRock TR-KNL [18/26] System fan](/views2/1694137/page18/bg12.png)
14 15
English

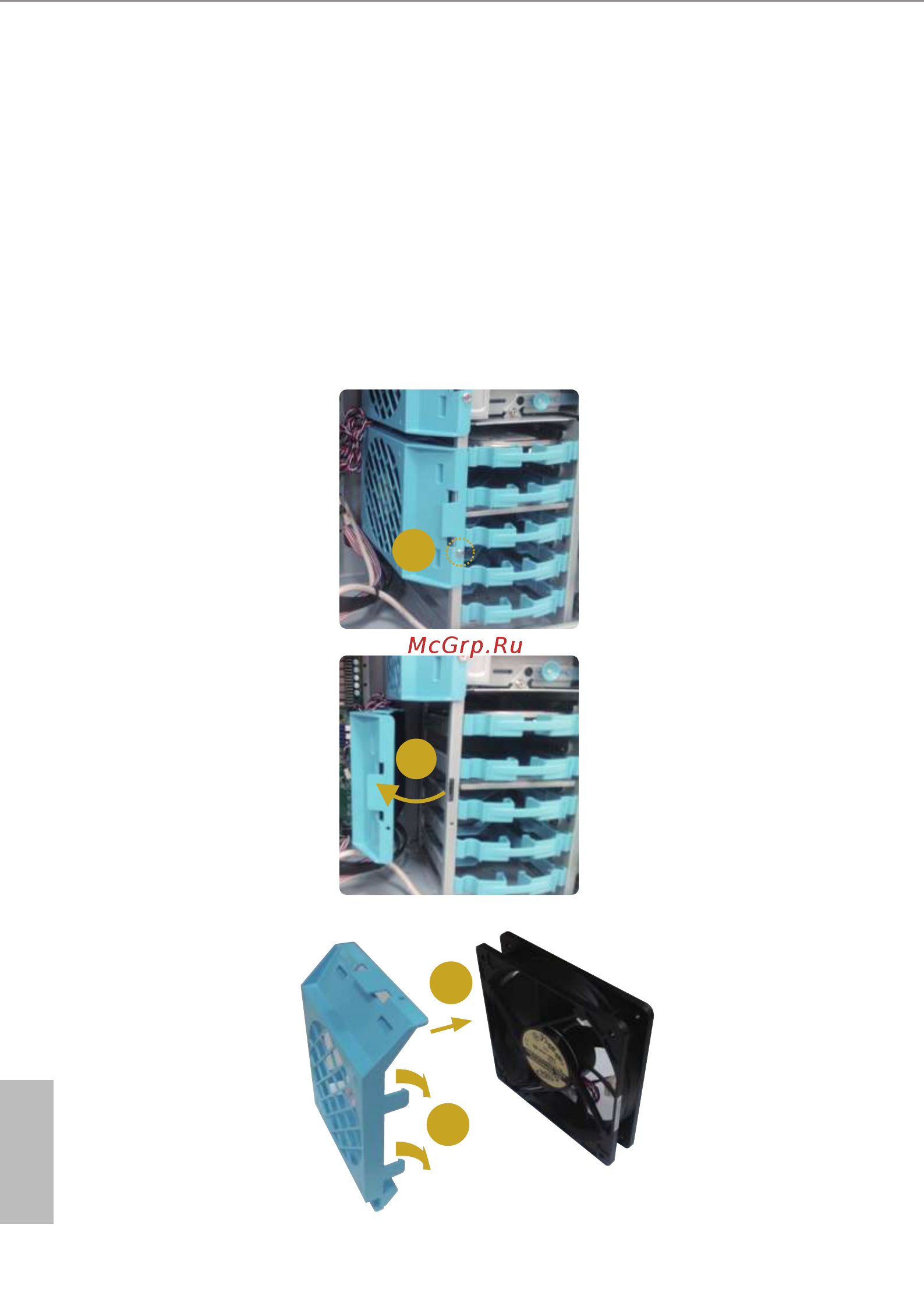

3.2 System Fan
Replacing the Front Fan
Removing the failed fan
1. Unplug the fan connecter. Release the screw that secures the fan assembly to the
chassis.
2. Pull the fan assembly away from the chassis.
3. Slightly bend the fan holder to release the tabs.
4. Remove the failed fan.
1
1
2
3
4
