TR-KNL
12 13
English

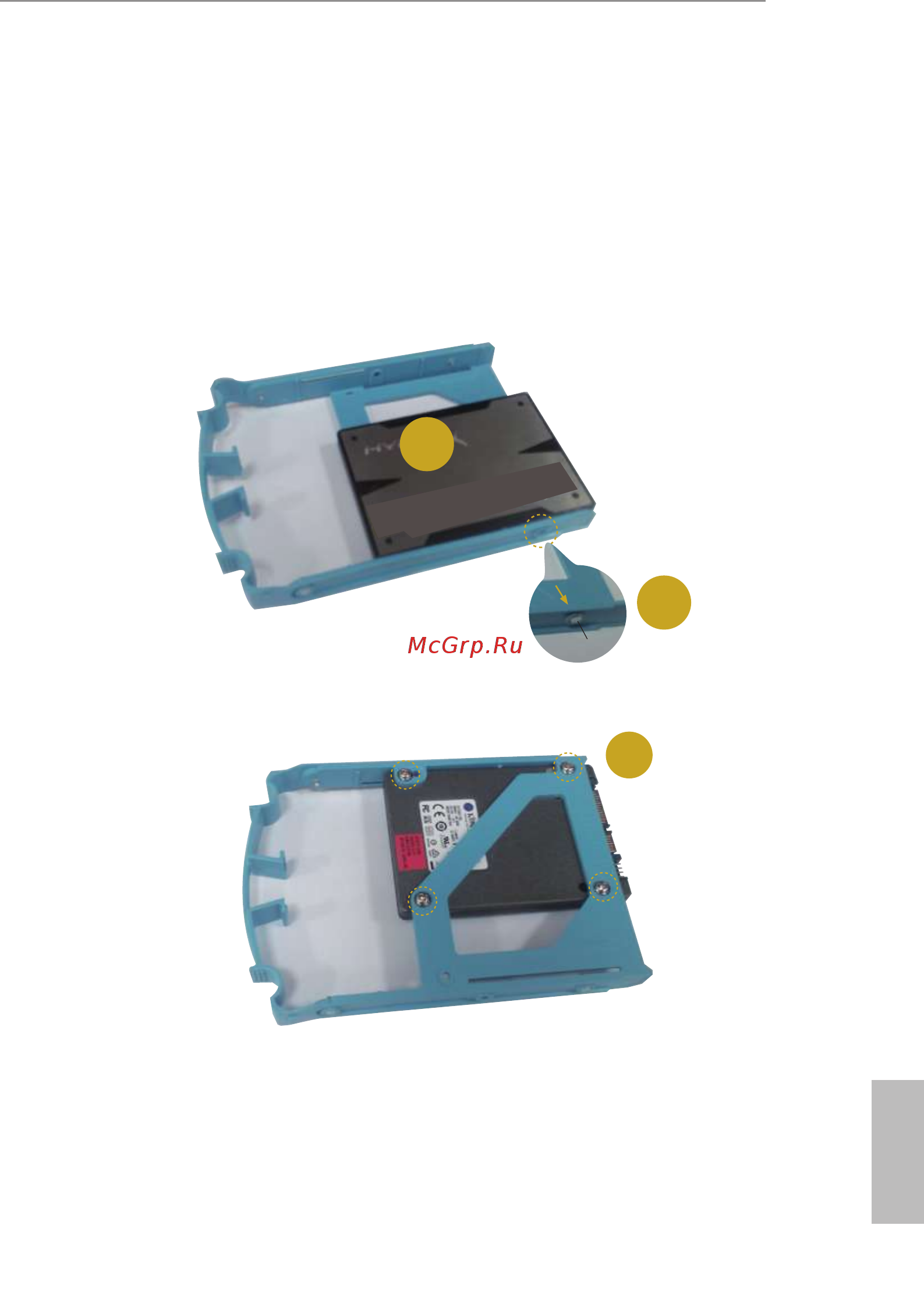

Installing and Removing a 2.5” Hard Drive
1. Remove the stop tab at the upper right corner of the tray.
2. Place a 2.5" HDD into the tray with the printed circuit board side facing down.
Carefully align the mounting holes in the hard drive and the tray.
3. en turn the drive and the tray upside down. Secure the hard drive with the screws.
4. Slide the drive tray into the HDD bay until the drive is fully seated.
5. Reverse the procedures to remove the drive from the tray.
1
Stop Tab
2
3
